RP-Tools RP-4042B2 Installations- Und Wartungshandbuch Seite 50

RP-R-4042B2, 4064B2

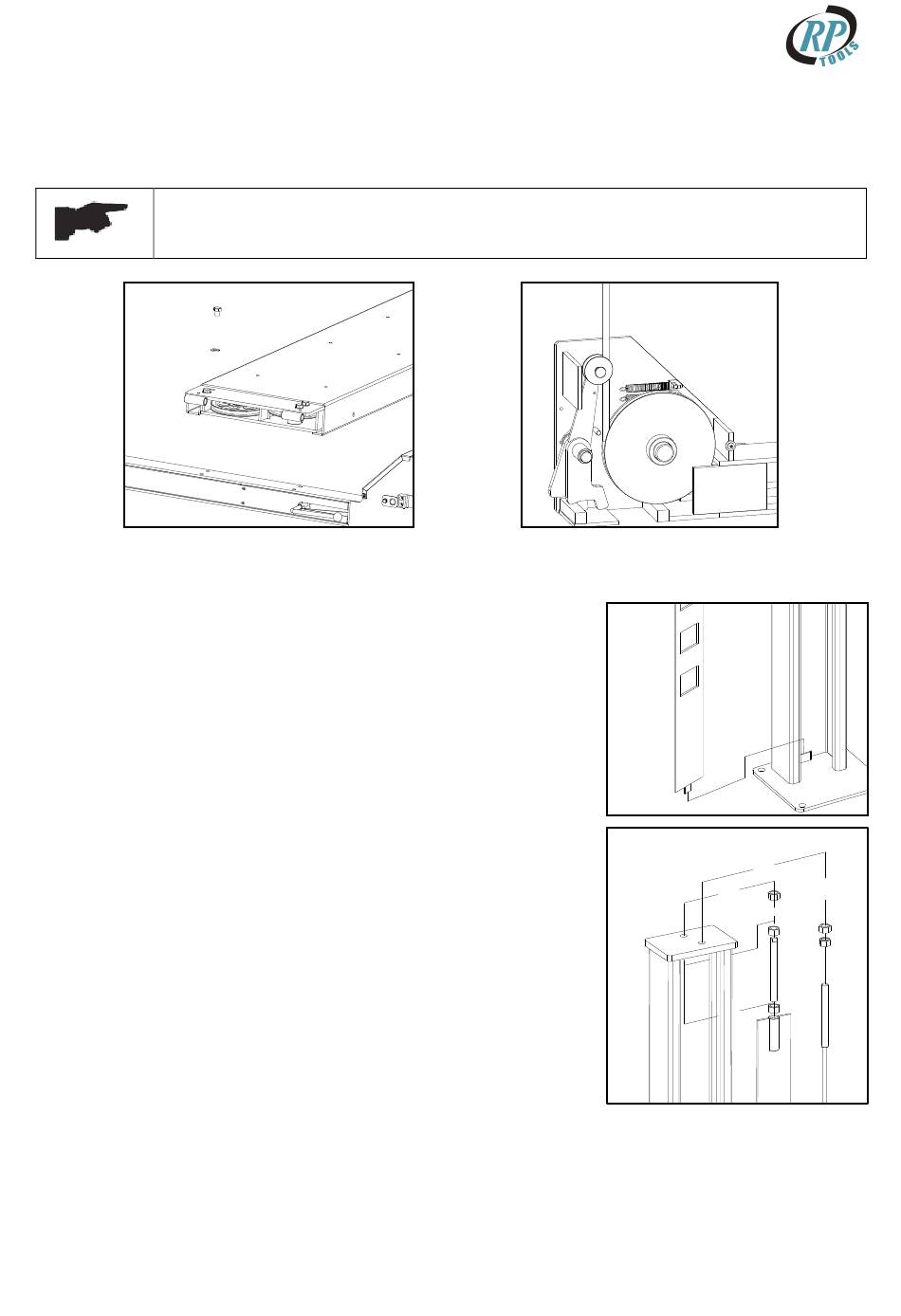

• Line up the runways with the bolt holes in the transverse beams and temperately bolt the screw
M16X20 and the washer D.16 in position as shown in the figure 15.
• Make sure the cables are routed correctly as shown in the figure 16 and make sure that cables on
the safety rollers.
Before installation, make sure that all accessories have been installed in the
runways and transverse beams.
7.7A (RP-4042B2) INSTALLATION OF COLUMNS (ref. fig. 17)
• Transport the columns to the located site.
• Move each column toward the respective end of the
transverse beam until stopped by the slide block on the
transverse beam. Make sure that all columns are positioned
in the correct location (ref. fig.2). Make sure to use caution to
prevent columns from falling over. If necessary, use the
shims.
• Slide the safety rack down inside each column. Make sure to
slide it into the groove on the bottom of the column (ref. fig.
17).
• Insert the adjustment rod through top of the column and
assemble it into the safety rack with the nuts M20. Be sure
all nuts are installed correctly as shown in the figure 18.
• Insert the steel cable through top of the column and
assemble the nuts M20 on it.
• Adjust each rack in equal height by tightening or unloosing
the nuts.
• Adjust each cable in equal tension by tightening or
unloosing the nuts.
7.8A (RP-4042B2) ANCHORING COLUMNS
• Before proceeding, check the measurement referring to the layout figure 2 and make sure that
the base plate of each column is square.
• Using the base plate as guide, drill each hole in the concrete approximately 120mm deep with
the rotary hammer drill D.16. To assure full holding power, do not ream the hole or allow drill
to wobble.
REV. 01
RP-TOOLS Werkstatt-Technik
Fig.15A
(RP-4042B2)
49 / 94
Fig.16 A
(RP-4042B2)
Fig. 17 A
(RP-4042B2)
Fig. 18 A
(RP-4042B2)
