RP-R-4042B2, 4064B2
Fig. 23

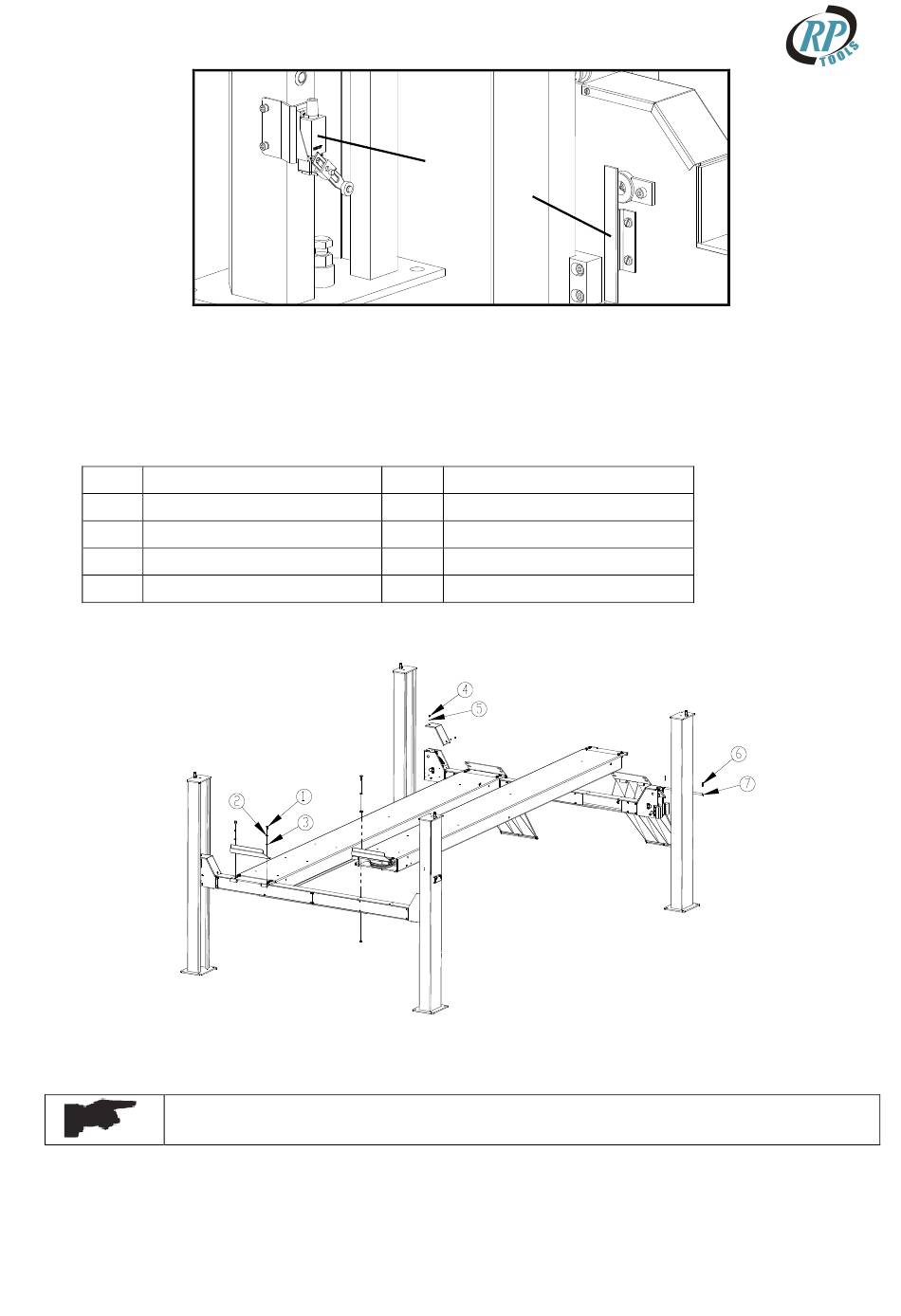

7.15 INSTALLATION OF ACCESSORIES (ref. fig. 24)
• Install all covers onto transverse beams.
• Install the front wheel stops.
• Install the drive-on ramps onto the lift.
Item Description
1 Screw M12X20
2 Locking washer D.12
3 Washer D.12
4 Screw M6X10
Figure 24 – INSTALLATION OF ACCESSORIES
7.16 CHECK WITH LOAD
WARNING: please follow carefully the instructions in the coming paragraph for
avoiding damages on the lift.
Carried out two or three complete cycles of lowering with the vehicle loaded and lifting and:
• Repeat the checks provided for by 7.13.
• Check no strange noise during lifting and lowering.
• If the runways weren't leveled, readjust.
REV. 01
RP-TOOLS Werkstatt-Technik
1
Item Description
5 Washer D.6
6 Split pin 2.5X40
7 Ram pin
65 / 94
2
