RP-R-4042B2, 4064B2
• Install the control panel on the power side column as shown
in the figure 21 using 4 x screws M6X20.
• Make the electric hookup to the hydraulic power unit
referring to the wiring diagram (fig. 6) using included
electric cable.
• Make sure the connection of the phases is right and the lift is
grounded.
7.12 OIL FILLING AND BLEEDING
DO NOT run power unit with no oil. Damage to pump can occur.
If motor gets hot or sounds peculiar, stop immediately and recheck the electric
connection.
• Use the hydraulic fluid recommended in the chapter 5.5.
• Remove the oil level plug on the oil tank and pour oil in the tank about 12 liters.
• Raising the lift slowly by pressing the lifting button until the lift reaches the full height. DO
NOT continue pressing button after lift reaches full height. Damage to motor can occur if
continued.
• Repeat raise and lower the lift completely at least 3 times to bleed the trapped air inside the
cylinder.
If the oil level plug is lost or broken, order the replacement. The oil tank must be
vented well.
7.13 CHECK BEFORE START-UP
During START UP procedure, observe all operating components and check for
proper installation and adjustment. DO NOT attempt to raise vehicle until a
thorough operation check has been completed.

7.13.1 GENERAL CHECKS

• Make sure to check that the columns are plumb;
• Make sure to check the lift anchored to the ground and all anchor bolts tightened.
• Make sure to check the electrical system feeding voltage is equal to that specified in the
nameplate on the motor;
• Make sure to check the electric system connection in conformity of the electric plan shown as
the electric diagram (fig. 6) and for proper grounding.
• Make sure to check all plastic sliders are on the position and greased properly.
• Make sure to check all pins are installed correctly and greased properly.
• Make sure to check all bolts, nuts and screws are tightened securely.
• Particularly, below checks must be followed:
REV. 01
RP-TOOLS Werkstatt-Technik
61 / 94

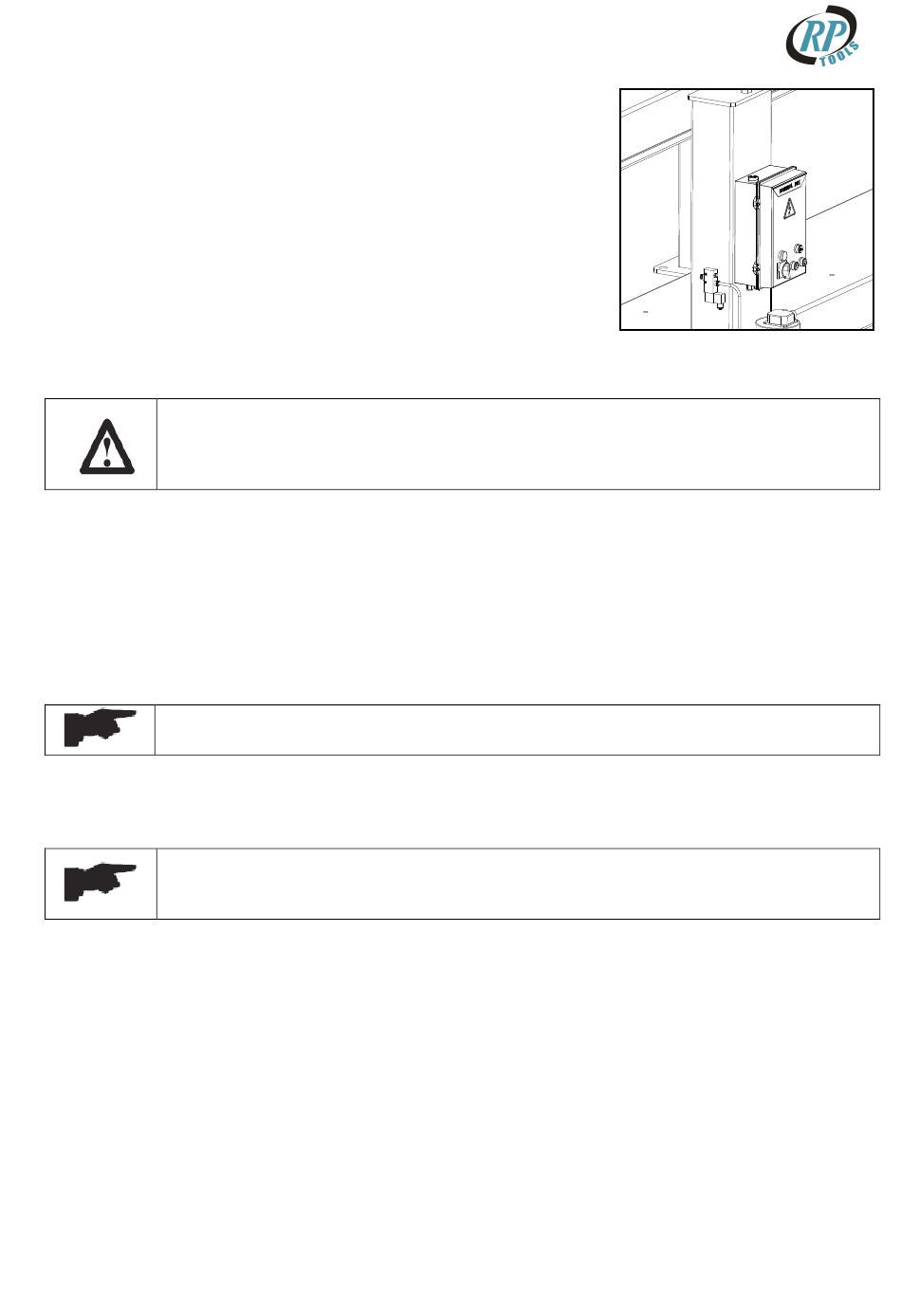

Fig. 21
