RP-R-4042B2, 4064B2
7.17
INSTALLATION OF ALIGNMENT KIT (optional)
• The optional alignment kit can be ordered separately and bolted on platforms of lift.
• Install the alignment kit following the exploded drawing shown in the figure 25.

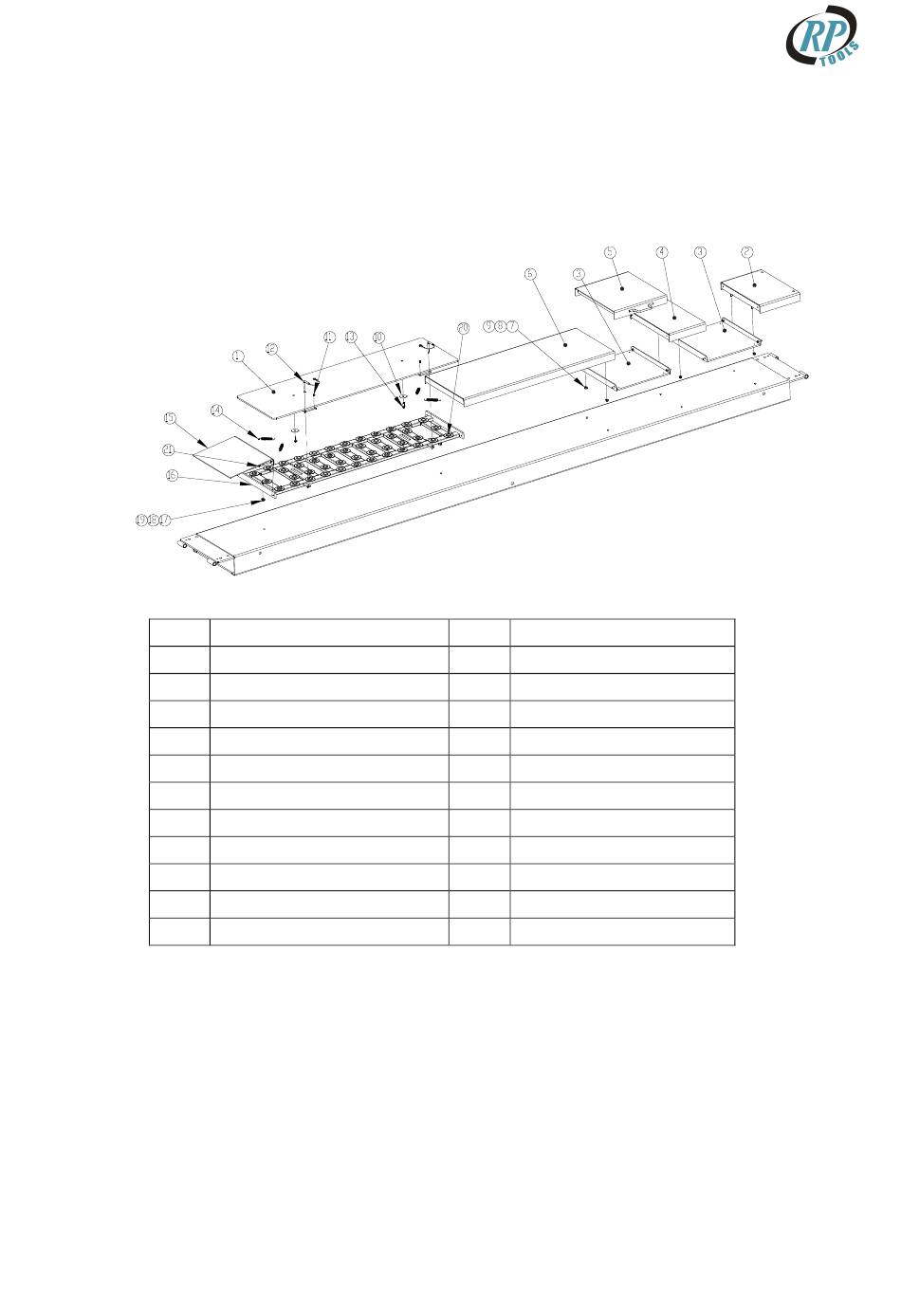

Figure 25 – INSTALLATION OF ALIGNMENT KIT
Item Description
1
2
3
4
5
6
7
8
9
10
11
REV. 01
RP-TOOLS Werkstatt-Technik
Slipping plate
Spacer 2
Recess base plate
Spacer 1
Turntable recess cover
Long spacer
Nut M10
Locking washer D.10
Washer D.10
Washer
Screw M6X8
Item Description
12
Plate stop pin
13
Screw M10X30
14
Spring
15
Approach ramp
16
Ball support
17
Nut M12
18
Locking washer D.12
19
Washer D.12
20
Steel ball unit
21
Screw M10X25
67 / 94
