RP-R-4042B2, 4064B2
• After drilling, remove dust thoroughly from each hole using compressed air or wire brush.
• Assemble the washers and nuts on the anchors then tap into each hole with a hammer until the
washer rests against the base plate. Be sure if shimming is required, enough threads are left
exposed.
• If shimming is required, insert the shims as necessary around the anchor bolts, the columns will
be plumb.
• With the shims and anchor bolts in place, tighten by securing the nut to the base.

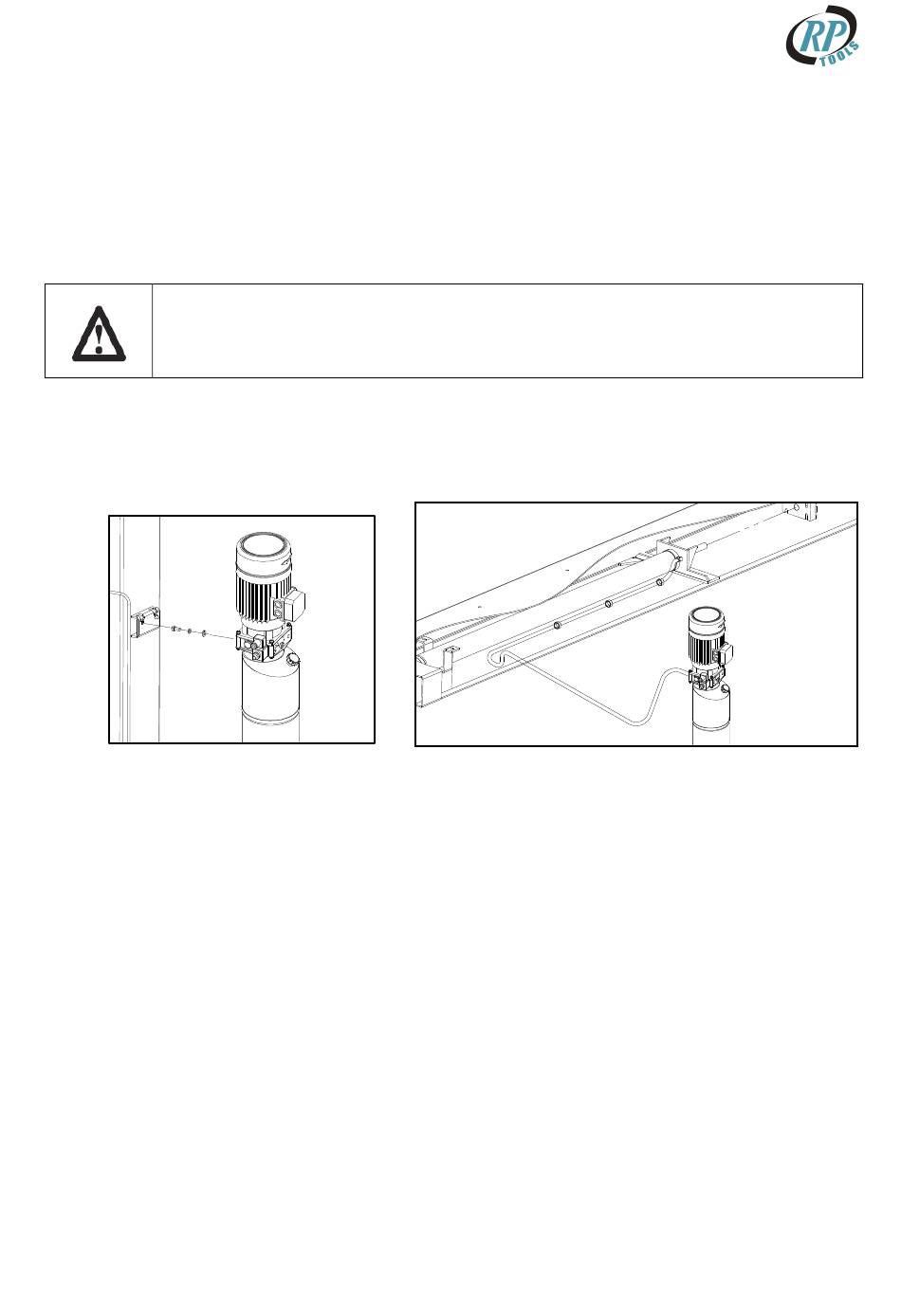

7.9A (RP-4042B2) HYDRAULIC SYSTEM CONNECTION
When routing the hydraulic hose, make sure that the hose is clear of any moving
part, make sure to keep the hose and fittings clean from dust. Failure to do so
may result in hydraulic line failure which may result in damage or personal
harm.
• Fix the hydraulic power unit onto the support mounted on the power-side column using the
supplied 2 screws M20X20, washers D.20 and locking washers D.20 as shown in the figure 19.
• Route the hydraulic hoses referring to the figure 20.
• Tighten the fittings thoroughly.
Fig. 19A
(RP-4042B2)
REV. 01
RP-TOOLS Werkstatt-Technik
Fig. 20A
(RP-4042B2)
51 / 94
