RP-R-4042B2, 4064B2

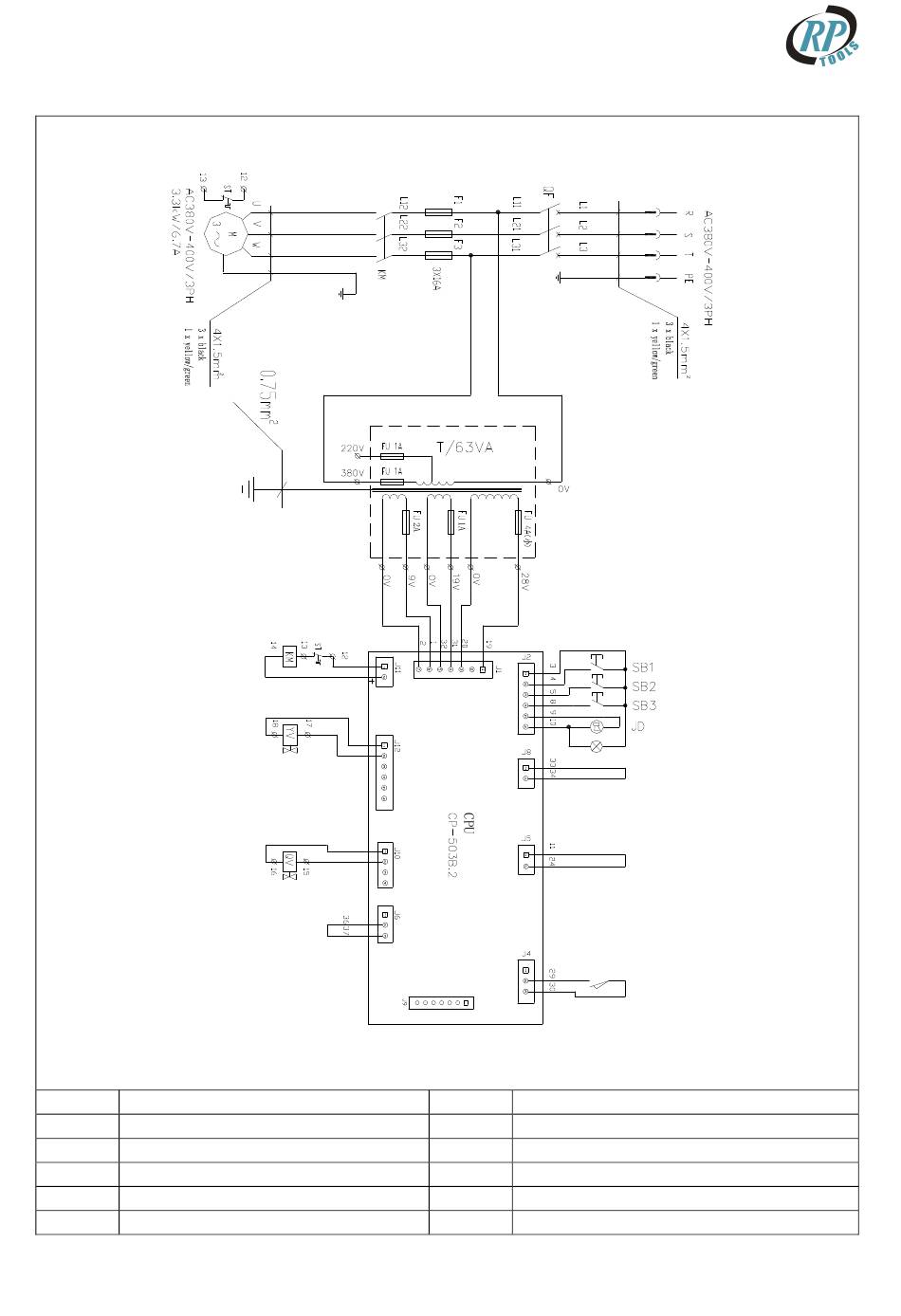

Figure 6a – ELECTRICAL PLAN (380V/400V-3Ph)
QF
Power switch
KM
Contactor DC
M
Motor 3.3KW 3PH 4P
ST
Overhear protector
T
Transformer
SB1
Lifting button
REV. 01
RP-TOOLS Werkstatt-Technik
SB2
SB3
SQ2
YV1
QV
HL
33 / 94
HL
SQ2
Lowering/final lowering button
Safety locking button
Safety height limit switch
Lowering solenoid valve
Solenoid air valve
Pilot lamp
