7.18B (RP-4064B2) INSTALLATION OF JACKING BEAM (optional)
This jacking beam is designed to be equipped with a 4 post lift. The maximum capacity is 3200kg
(7000lbs).

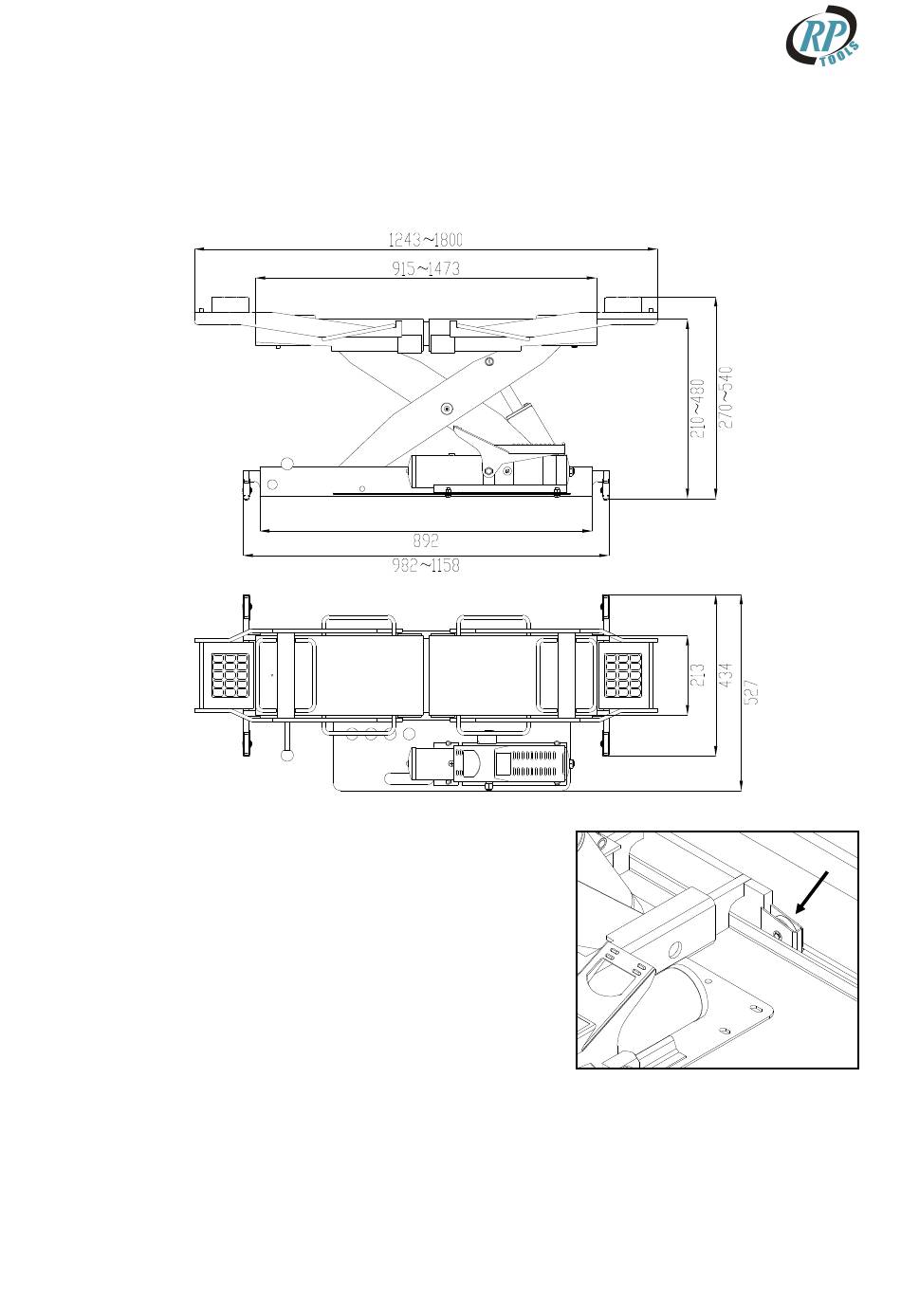

Figure 26B (RP-4064B2) – JACKING BEAM LAYOUT
To install the jacking beam on a 4 post lift, do as followings.
• Lower the lift fully.
• Lower the jacking beam all the way down.
• Use a proper hoist equipment to place the jacking beam
on rails inside runways of the lift.
• Adjust the base to the correct width.
• Check to make sure that all four rollers are seated
properly on rails a shown in the figure 27B.
• Make sure that rail channel is clean of debris.
• Raise the lift up off the ground so that the jacking beam
is off the ground.
REV. 01
RP-TOOLS Werkstatt-Technik
73 / 94
Fig. 27B
(RP-4064B2)
