RP-R-4042B2, 4064B2

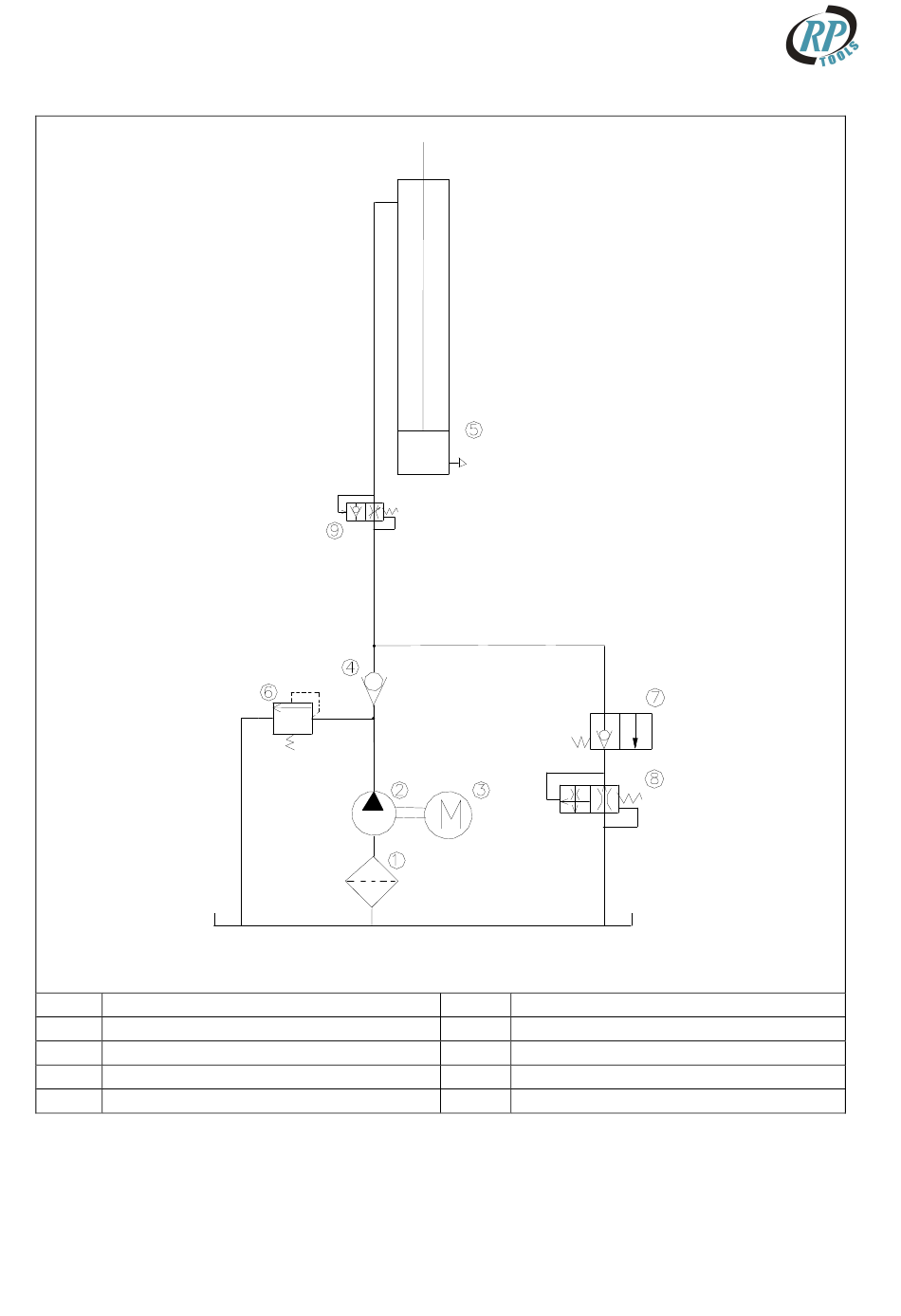

Figure 5 -HYDRAULIC PLAN
1 Oil filter
2 Gear pump
3 Motor
4 Non return valve
5 Hydraulic cylinder
REV. 01
RP-TOOLS Werkstatt-Technik
6
7
8
9
31 / 94
Pressure overload valve
Solenoid lowering valve
Lowering speed control valve
Parachute valve
