RP-R-4042B2, 4064B2
To install the jacking beam on a 4 post lift, do as followings.
• Lower the lift fully.
• Lower the jacking beam all the way down.
• Use a proper hoist equipment to place the
jacking beam on rails inside runways of the lift.
• Adjust the base to the correct width.
• Check to make sure that all sliders are seated
properly on rails a shown in the figure 28A.
• Make sure that rail channel is clean of debris.
• Raise the lift up off the ground so that the
jacking beam is off the ground.
• Check the clearance and movement of the
jacking beam by sliding it forward and rearward
on the rails. Width adjustment of the jack base
may be necessary to ensure the proper operation.
• Connect the pneumatic line following the figure 21 and the instruction on the chapter 7.10.
• Connect the hydraulic hose following the figure 29A.
• Fill the pump reservoir with the oil suggested in the chapter 5.5.
• Without a vehicle loaded, raise the jack at full stroke to check for the proper operation.
• Check for the safety operation by lowering the jack.

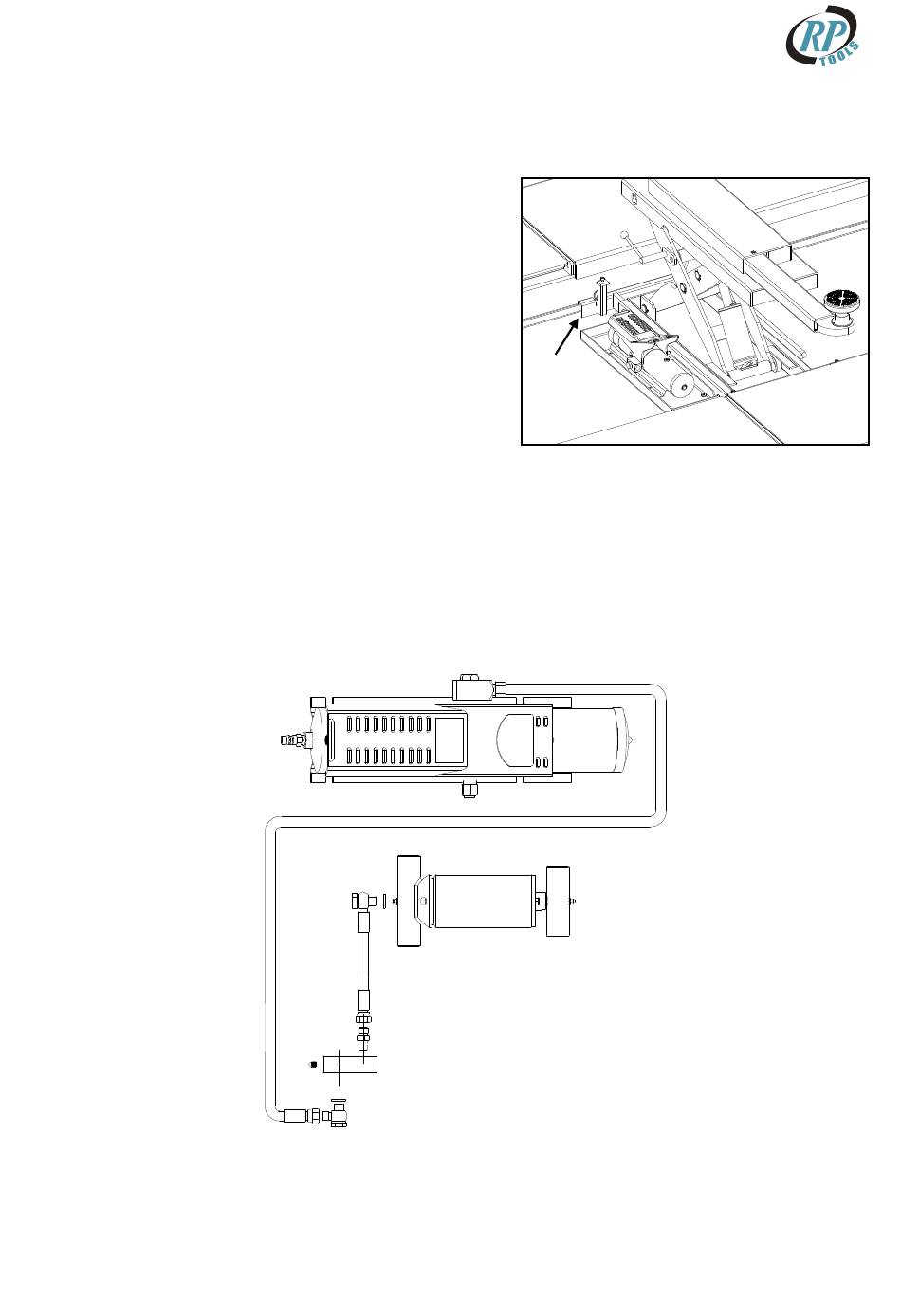

Figure 29A (RP-4042B2) – HYDRAULIC LINE CONNECTION OF JACKING BEAM
