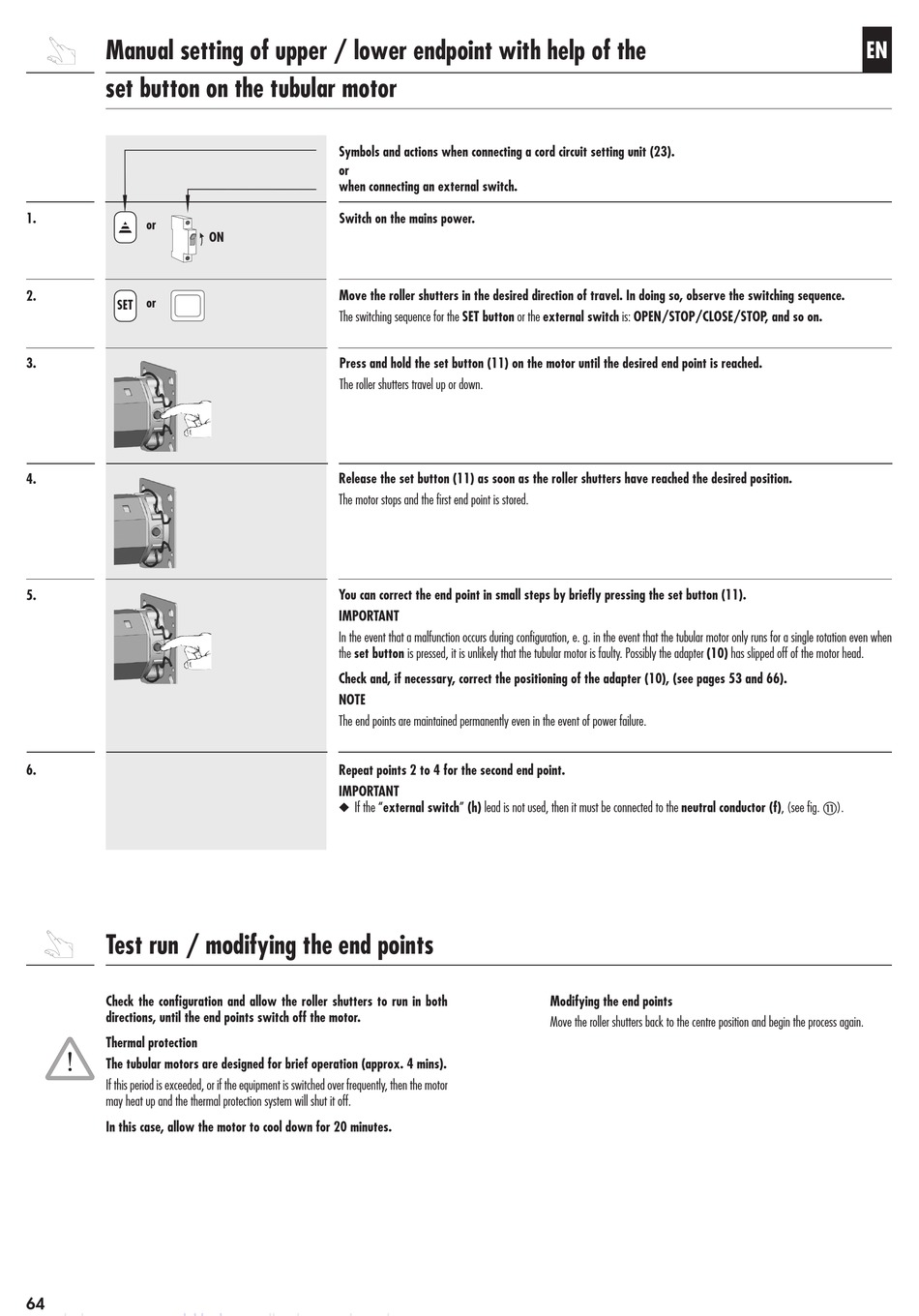

Manual setting of upper / lower endpoint with help of the
set button on the tubular motor
1.
or
2.
SET or
3.
4.
5.
6.

Test run / modifying the end points

Check the configuration and allow the roller shutters to run in both
directions, until the end points switch off the motor.
Thermal protection
The tubular motors are designed for brief operation (approx. 4 mins).
If this period is exceeded, or if the equipment is switched over frequently, then the motor
may heat up and the thermal protection system will shut it off.
In this case, allow the motor to cool down for 20 minutes.
64
Symbols and actions when connecting a cord circuit setting unit (23).
or
when connecting an external switch.
Switch on the mains power.
ON
Move the roller shutters in the desired direction of travel. In doing so, observe the switching sequence.
The switching sequence for the SET button or the external switch is: OPEN/STOP/CLOSE/STOP, and so on.
Press and hold the set button (11) on the motor until the desired end point is reached.
The roller shutters travel up or down.
Release the set button (11) as soon as the roller shutters have reached the desired position.
The motor stops and the first end point is stored.
You can correct the end point in small steps by briefly pressing the set button (11).
IMPORTANT
In the event that a malfunction occurs during configuration, e. g. in the event that the tubular motor only runs for a single rotation even when
the set button is pressed, it is unlikely that the tubular motor is faulty. Possibly the adapter (10) has slipped off of the motor head.
Check and, if necessary, correct the positioning of the adapter (10), (see pages 53 and 66).
NOTE
The end points are maintained permanently even in the event of power failure.
Repeat points 2 to 4 for the second end point.
IMPORTANT
◆ If the "external switch" (h) lead is not used, then it must be connected to the neutral conductor (f), (see fig. k).
Modifying the end points
Move the roller shutters back to the centre position and begin the process again.
EN
