17 SERVICE MENU
Parameter 7: EnOcean
Parameter 8: EnOcean Teach mode
No function for RV 2.
Parameter 9: Number of PPB 30 K units
No function for RV 2.
Parameter 10: ModBus settings
ATTENTION: The ModBus interface must be de-
activated for RV 2 units, otherwise RV 2 units
cannot be controlled.
Parameter 11: ModBus address
No function for RV 2.

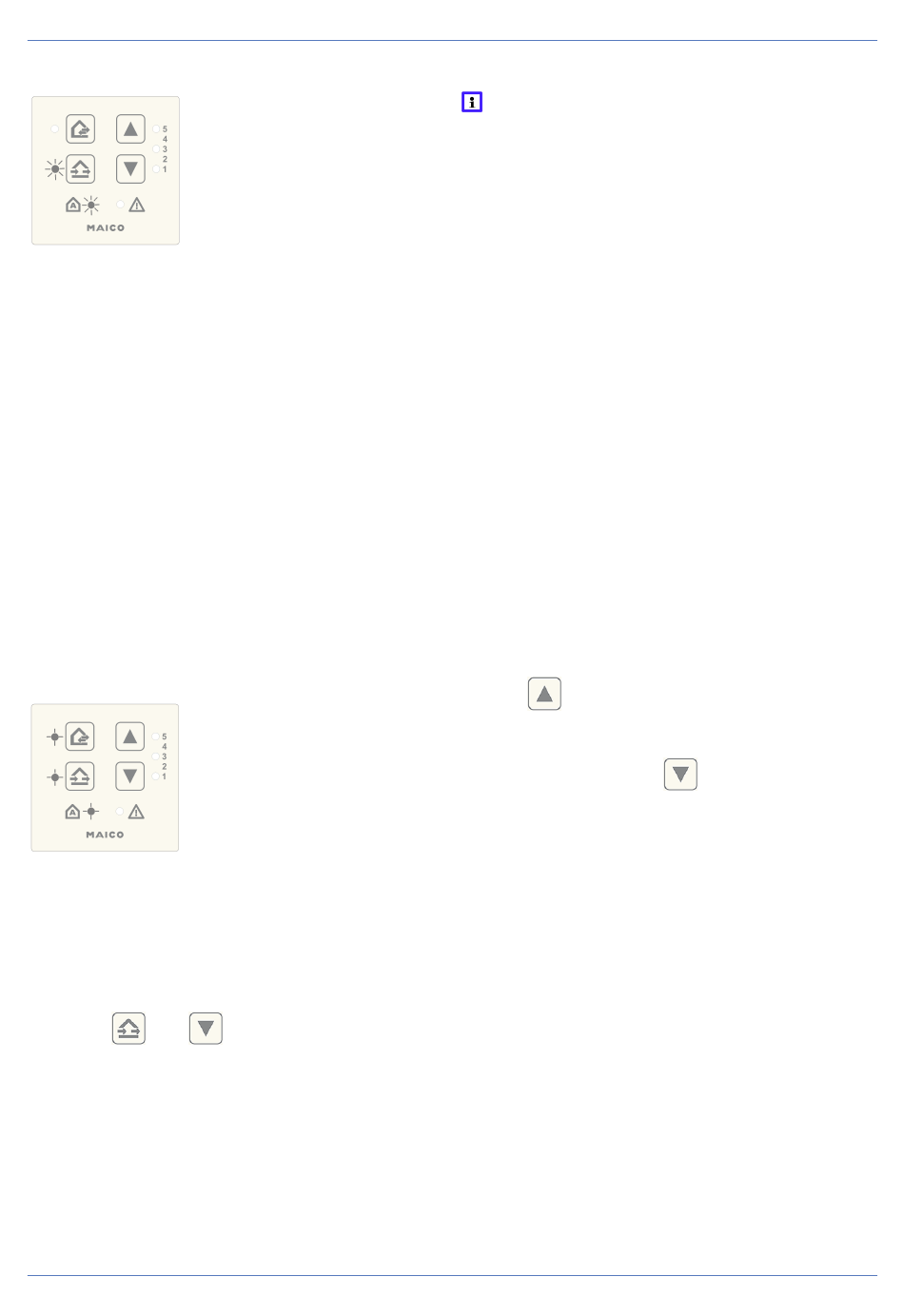

Parameter 12: Plug & Play
Exit setting mode
Press the and
seconds. The ventilation unit switches to the spe-
cified ventilation level.
78
For activating the EnOcean
extension module PP 45
EO.
0 = EnOcean module not
present
1 = Activate EnOcean mod-
ule
Automatic search run for
pairwise assignment of the
supply air and exhaust air
units.
0 = Manual settings with
commissioning software
1 = Plug & Play: Start auto-
matic search
For further information →
following chapter.
buttons together for 5
17.4 Automatic search (Plug & Play)
For RV 2 and CPP 60 units when assigned in
pairs (even number of units).
In the automatic search, the factory-set device
addresses (100 to 250) of the individual ventila-
tion units are read out. The supply air and ex-
haust air units of the same unit family (RV 2 or
CPP 60) are then paired.
Alternatively, you can also carry out the process
manually using the commissioning software.
This is required for an uneven number of
units. For manual configuration → RV 2 install-
ation and commissioning instructions.
For RV 2 device address, see sticker on the
terminal box cover.
Make sure that an even number of devices
from the same device family are installed and that
no device address is used more than once (other-
wise a communication error will occur and the
search will not be saved). In this case, reconfig-
ure the factory address of the individual units us-
ing the commissioning software.
Start automatic search
1. Call up the service menu.
2. Select the last parameter Plug & Play. The 3
LEDs on the left flash slowly.
3. Use to select 1 = Start Plug & Play
search. During the search run, the ventilation
level LEDs light up (running light, approx. 1
minute). Cancel with
exhaust air units are automatically paired with
the determined device addresses.
The values are saved after a successful search.
The number of devices found is displayed with
the ventilation level LEDs.
The units are categorised in chronological order,
alternating between supply air and exhaust air
units.
Example with 4 ventilation units and addresses
110 / 180 / 185 / 220. Automatic categorisation as
follows: 110 = supply air / 180 = exhaust air / 185
= supply air / 220 = exhaust air.
. The supply air and
