10 RV 2 mixed system
10.6 Mixed system with PPB 30 K +
4 RV 2 + 2 CPP 60

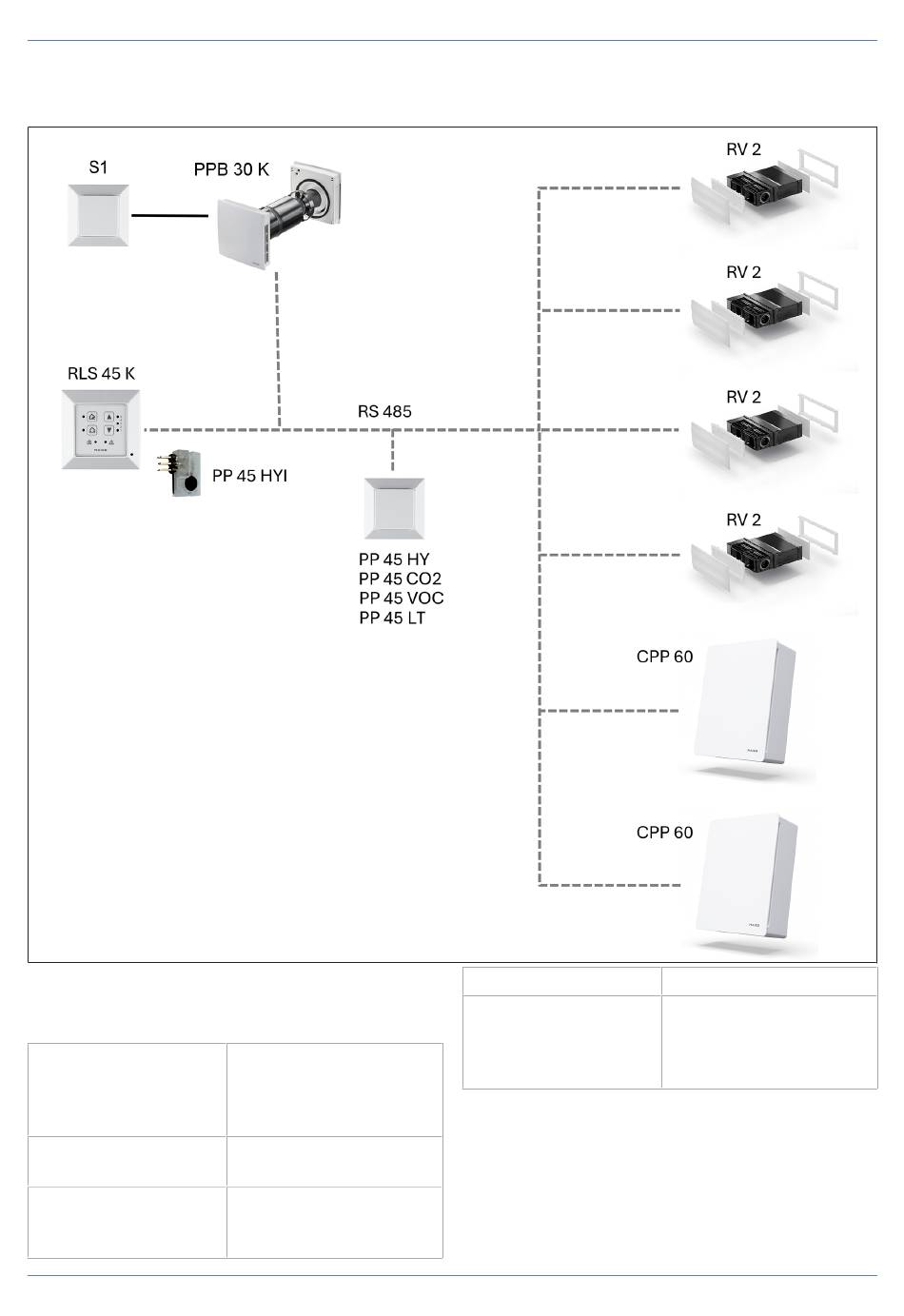

Fig. Schematic representation
Hardware requirements
Unit control
PPB 30 K
Unit control
RV 2
Unit control
CPP 60
64
RS 485 interface, 13.8
VDC. Use the Fan1/
Fan2 interface on the
RLS 45 K.
RS 485 interface, 13.8
VDC.
RS 485 interface, 13.8
VDC for damper control,
230 VAC for fans.
S1
Number of units /
power consumption
• Use the commissioning software to configure
the mixed system and the volumetric flow com-
pensation.
• Plug&Play can only be used if there is an even
number of ventilation units (pairs of units) and
no mixed system.
On/off switch
1x PPB 30 K (5.3 W) +
4 RV 2 (4x 2.5 W) + 2
CPP 60 (2x 1.2 W) =
17.5 W.
