10 RV 2 mixed system
10.3 Mixed system with ER + 4 RV 2
+ 2 CPP 60

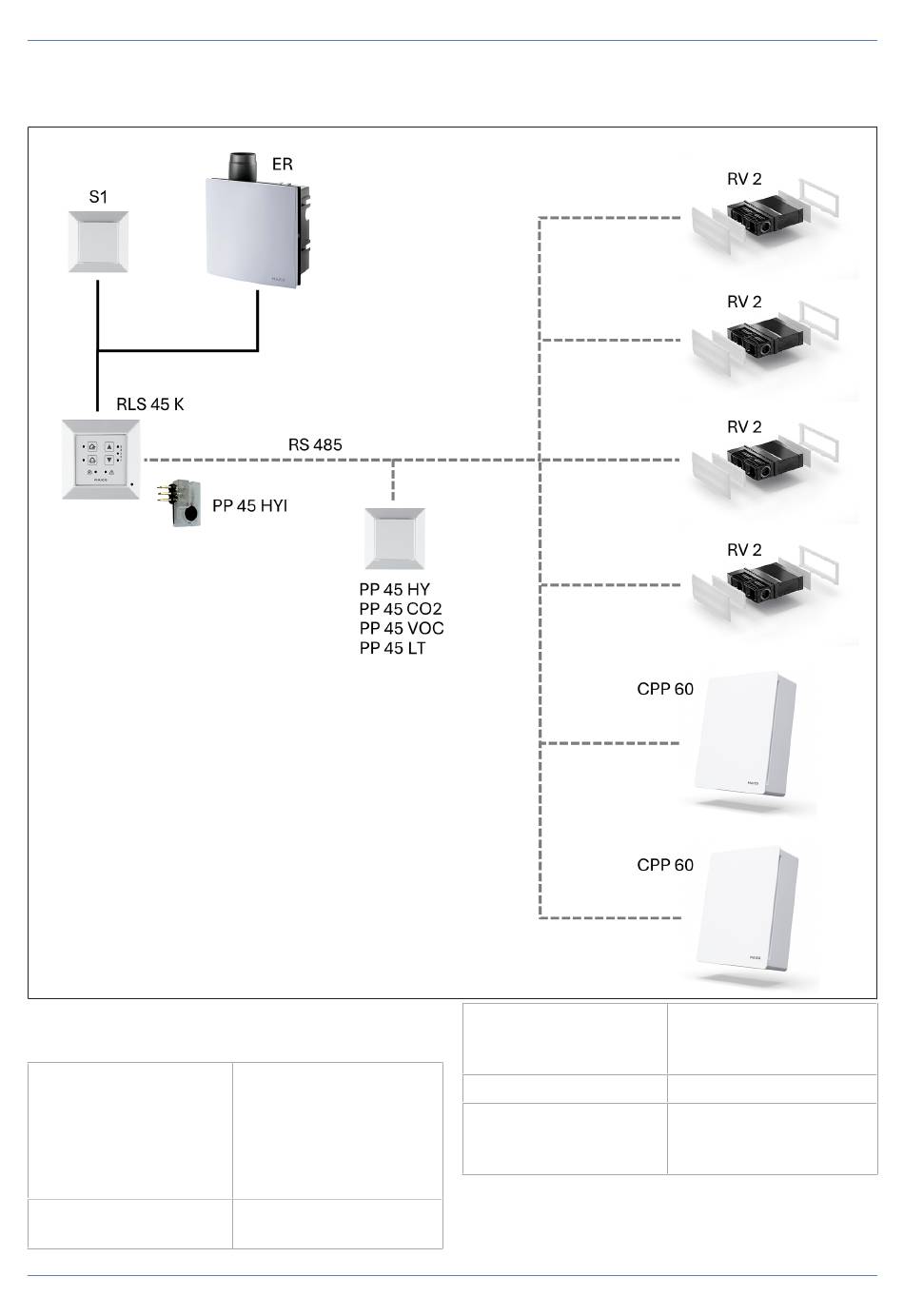

Fig. Schematic representation
Hardware requirements
Unit control
ER
Unit control
RV 2
60
Own 230 VAC power
supply/internal control.
ER volumetric flow
compensation via 230
V input (switching con-
tact) of the RLS 45 K.
RS 485 interface, 13.8
VDC.
Unit control

CPP 60

S1
Number of units /
power consumption
ATTENTION: RV 2 and CPP 60 units should
only ever be operated in pairs in mixed systems.
RS 485 interface, 13.8
VDC for damper con-
trol, 230 VAC for fans.
On/off switch
4 RV 2 (4x 2.5 W) +
2 CPP 60 (2x 1.2 W) =
12.4 W
