17 SERVICE MENU

17.3 Setting parameters

For further information on functions and settings
in the CDV commissioning software, see the RV 2
installation and commissioning instructions.
Factory settings for the following para-
meter setting values in bold.

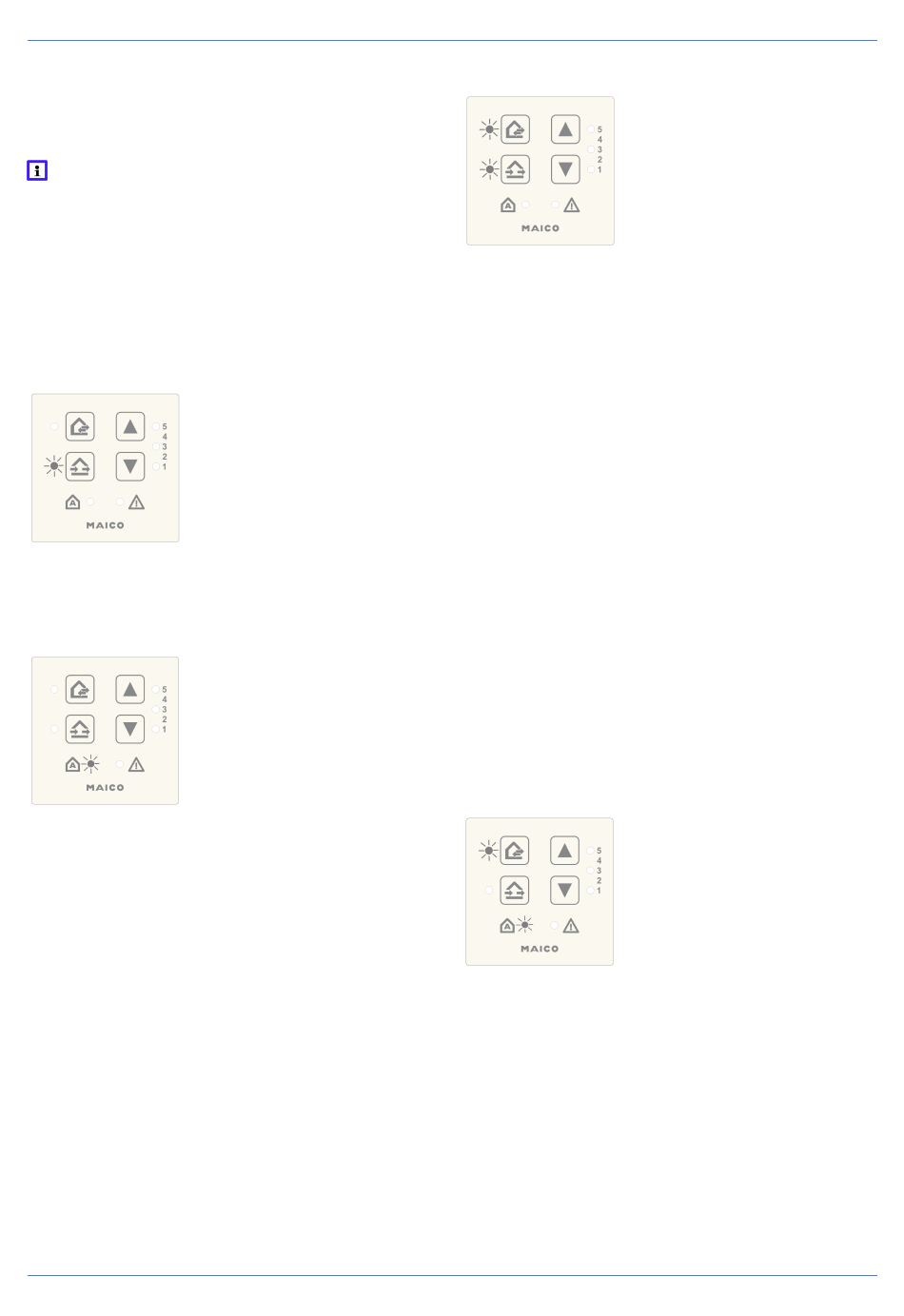

Parameter 1: Unit type on RLS (Fan1, Fan2)
No function for RV 2.
Parameter 2: Number of unit pairs, unit types
PP 45 and PPB 30 O
No function for RV 2.
Parameter 3: Deactivating ventilation level 0
Parameter 4: LT power units, RLS 45 K room air
controls (on the RS 485 bus)
Parameters for linking this room air control with
other room air controls (RLS) or power units
(LTs).
Example: Two further RLS (RLS #2 and #3) are
connected to RLS #1.
Setting value at RLS #1 = 2 / Setting value at
RLS #2 = 4 / Setting value at RLS #3 = 5.
1 = Ventilation level 0 ac-
tivated.
2 = Ventilation level 0 deac-
tivated. The ventilation units
cannot be switched off on
this control. The units run at
least at level 1.
Configuration for parallel op-
eration of several LTs / RLS.
0 = no further LTs/RLS
1 = operation with 1 LT or
RLS
2 = operation with 2 LTs or
RLS
3 = operation with 3 LTs or
RLS
4 = slave no. 1
5 = slave no. 2
6 = slave no. 3
Parameter 5: 230 VAC input
Parameter 6: Sensors
Parameters for using the connected internal and
external sensors. The internal sensor PP 45 HYI
and the external sensors PP 45 HY, PP 45 CO2
and PP 45VOCare available.
1 = Sleep mode
2 = Intermittent ventilation
3 = Safety shutdown
4 = Supply air mode without
overrun, for volumetric flow
compensation for exhaust
air fans (ECA/ER (60m³/h))
5 = Supply air mode with
overrun of 6 minutes
6 = Supply air mode with
overrun of 15 minutes
4 to 6: Activate volumetric
flow compensation using
RV 2 units additionally via
commissioning software.
230 V input with switching
contact, additional function
can be used with button or
switch, see Connection and
wiring diagram, "S1".
Recommendations: Use a
button for the sleep mode
and intermittent ventilation
functions (reacts to falling
edge).
Use a switch for functions 3
to 6 (reacts to switching
status).
0 = No sensors
1 = 1x internal sensor, no
external sensor
2 = 1x internal sensor, 1x
external sensor
3 = 1x internal sensor, 2x
external sensor
4 = 1x internal sensor, 3x
external sensor
5 = 0x internal sensor, 1x
external sensor
6 = 0x internal sensor, 2x
external sensor
7 = 0x internal sensor, 3x
external sensor
77
