10 RV 2 mixed system
10.4 Mixed system with PPB 30 K + 4

RV 2 (unmixed)

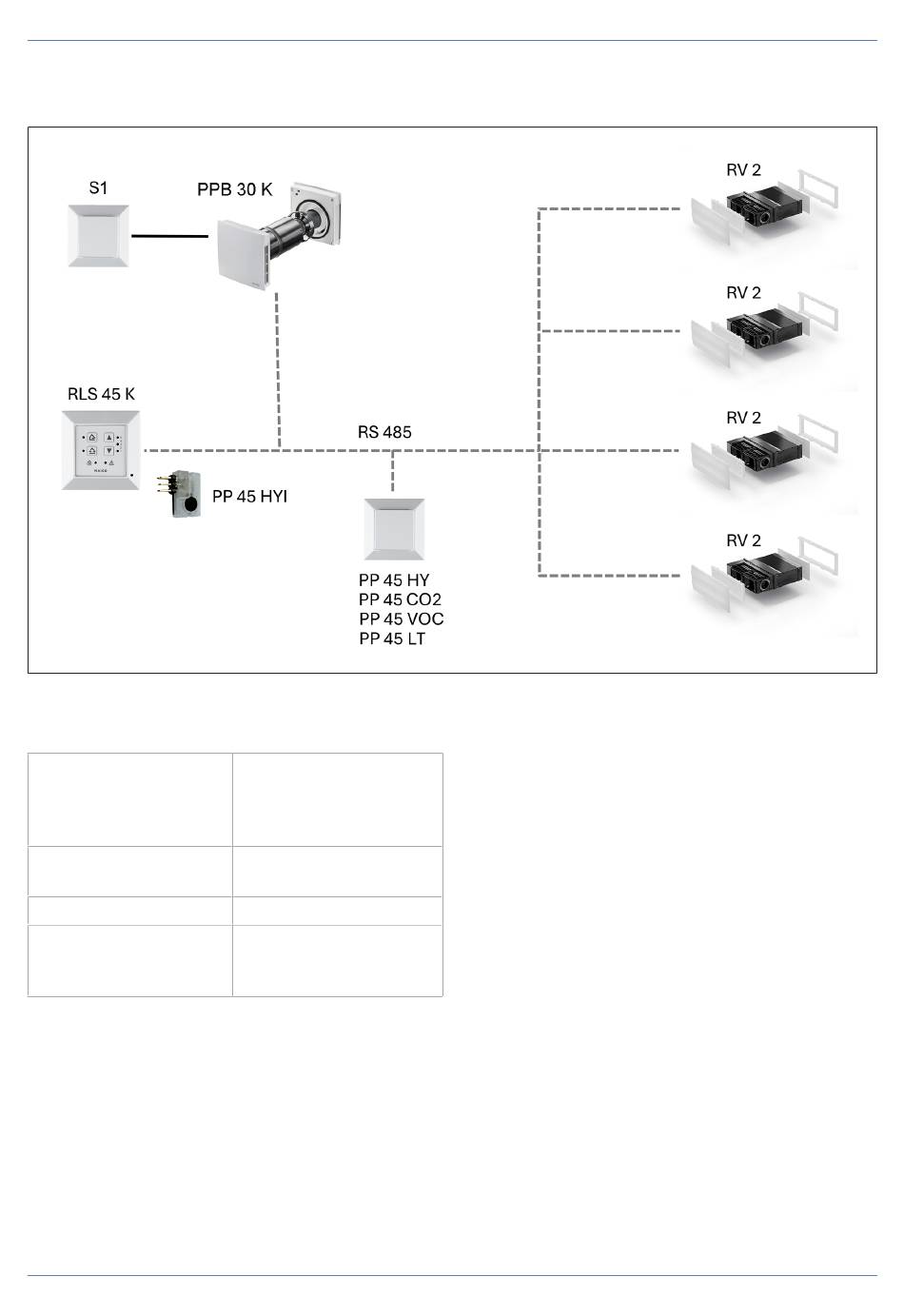

Fig. Schematic representation
Hardware requirements
Unit control
PPB 30 K
Unit control
RV 2
S1
Number of units /
power consumption
If PPB 30 K exhaust air mode is activated at the
230 V input (e.g. with a light switch), the RV 2
ventilation units equalise the required supply air.
ATTENTION: The RV 2 supply air function for
the PBB 30 K exhaust air fan must be switched
on in the commissioning software. Use the com-
missioning software to configure the mixed sys-
tems and the volumetric flow compensation.
RS 485 interface, 13.8
VDC. Use the Fan1/
Fan2 interface on the
RLS 45 K.
RS 485 interface, 13.8
VDC.
On/off switch
PPB 30 K (5.3 W) + 4
RV 2 (4 x 2.5 W = 10
W) = 15 W.
61
