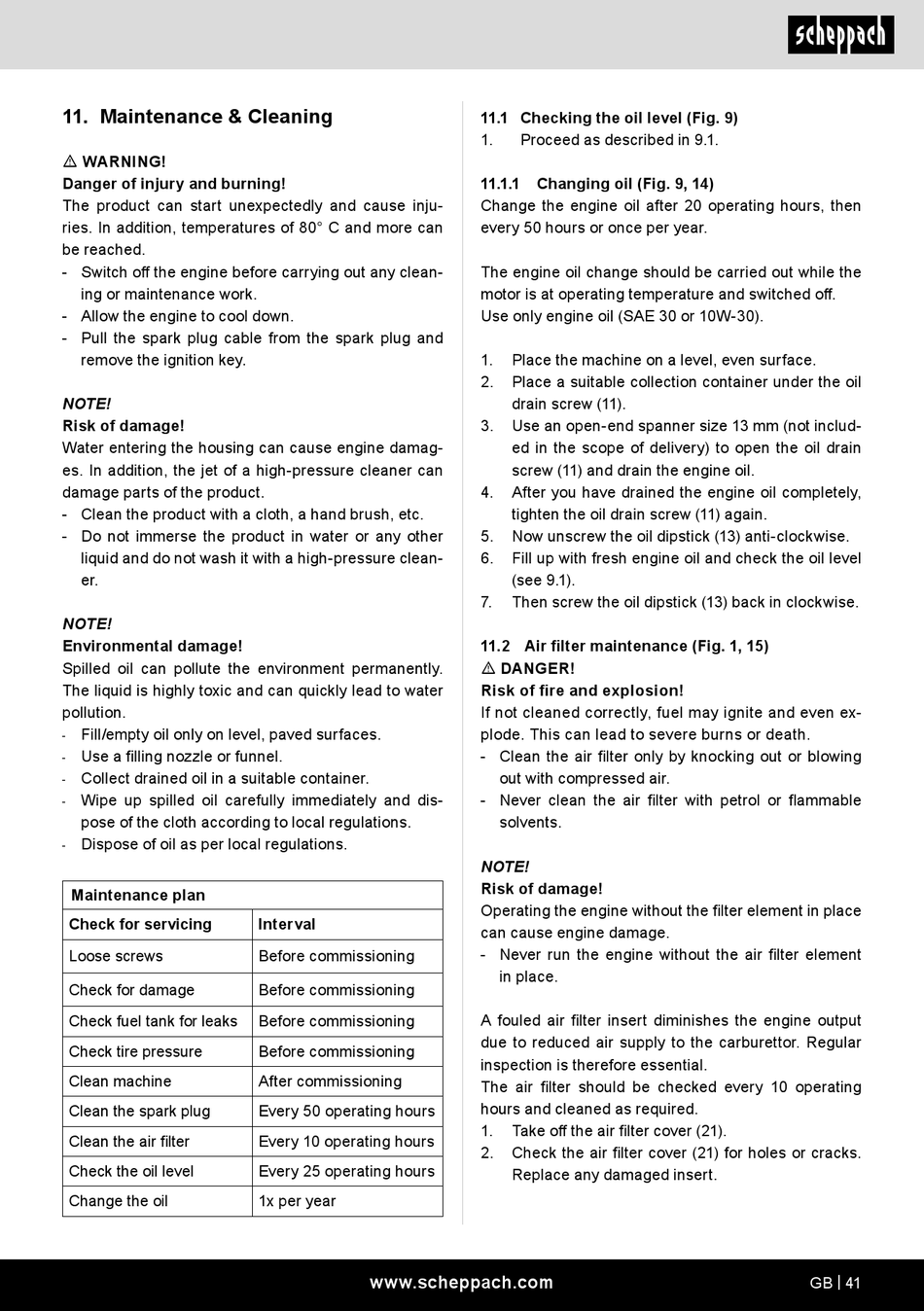

11. Maintenance & Cleaning
m WARNING!
Danger of injury and burning!
The product can start unexpectedly and cause inju-
ries. In addition, temperatures of 80° C and more can
be reached.
- Switch off the engine before carrying out any clean-
ing or maintenance work.
- Allow the engine to cool down.
- Pull the spark plug cable from the spark plug and
remove the ignition key.
NOTE!
Risk of damage!
Water entering the housing can cause engine damag-
es. In addition, the jet of a high-pressure cleaner can
damage parts of the product.
- Clean the product with a cloth, a hand brush, etc.
- Do not immerse the product in water or any other
liquid and do not wash it with a high-pressure clean-
er.
NOTE!
Environmental damage!
Spilled oil can pollute the environment permanently.
The liquid is highly toxic and can quickly lead to water
pollution.
- Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
- Collect drained oil in a suitable container.
- Wipe up spilled oil carefully immediately and dis-
pose of the cloth according to local regulations.
- Dispose of oil as per local regulations.
Maintenance plan
Check for servicing
Loose screws
Check for damage
Check fuel tank for leaks
Check tire pressure
Clean machine
Clean the spark plug
Clean the air filter
Check the oil level
Change the oil
Interval
Before commissioning
Before commissioning
Before commissioning
Before commissioning
After commissioning
Every 50 operating hours
Every 10 operating hours
Every 25 operating hours
1x per year
www.scheppach.com
11.1 Checking the oil level (Fig. 9)
1.
Proceed as described in 9.1.
11.1.1
Changing oil (Fig. 9, 14)
Change the engine oil after 20 operating hours, then
every 50 hours or once per year.
The engine oil change should be carried out while the
motor is at operating temperature and switched off.
Use only engine oil (SAE 30 or 10W-30).
1.
Place the machine on a level, even surface.
2.
Place a suitable collection container under the oil
drain screw (11).
3.
Use an open-end spanner size 13 mm (not includ-
ed in the scope of delivery) to open the oil drain
screw (11) and drain the engine oil.
4.
After you have drained the engine oil completely,
tighten the oil drain screw (11) again.
5.
Now unscrew the oil dipstick (13) anti-clockwise.
6.
Fill up with fresh engine oil and check the oil level
(see 9.1).
7.
Then screw the oil dipstick (13) back in clockwise.
11.2 Air filter maintenance (Fig. 1, 15)
m DANGER!
Risk of fire and explosion!
If not cleaned correctly, fuel may ignite and even ex-
plode. This can lead to severe burns or death.
- Clean the air filter only by knocking out or blowing
out with compressed air.
- Never clean the air filter with petrol or flammable
solvents.
NOTE!
Risk of damage!
Operating the engine without the filter element in place
can cause engine damage.
- Never run the engine without the air filter element
in place.
A fouled air filter insert diminishes the engine output
due to reduced air supply to the carburettor. Regular
inspection is therefore essential.
The air filter should be checked every 10 operating
hours and cleaned as required.
1.
Take off the air filter cover (21).
2.
Check the air filter cover (21) for holes or cracks.
Replace any damaged insert.
GB | 41
