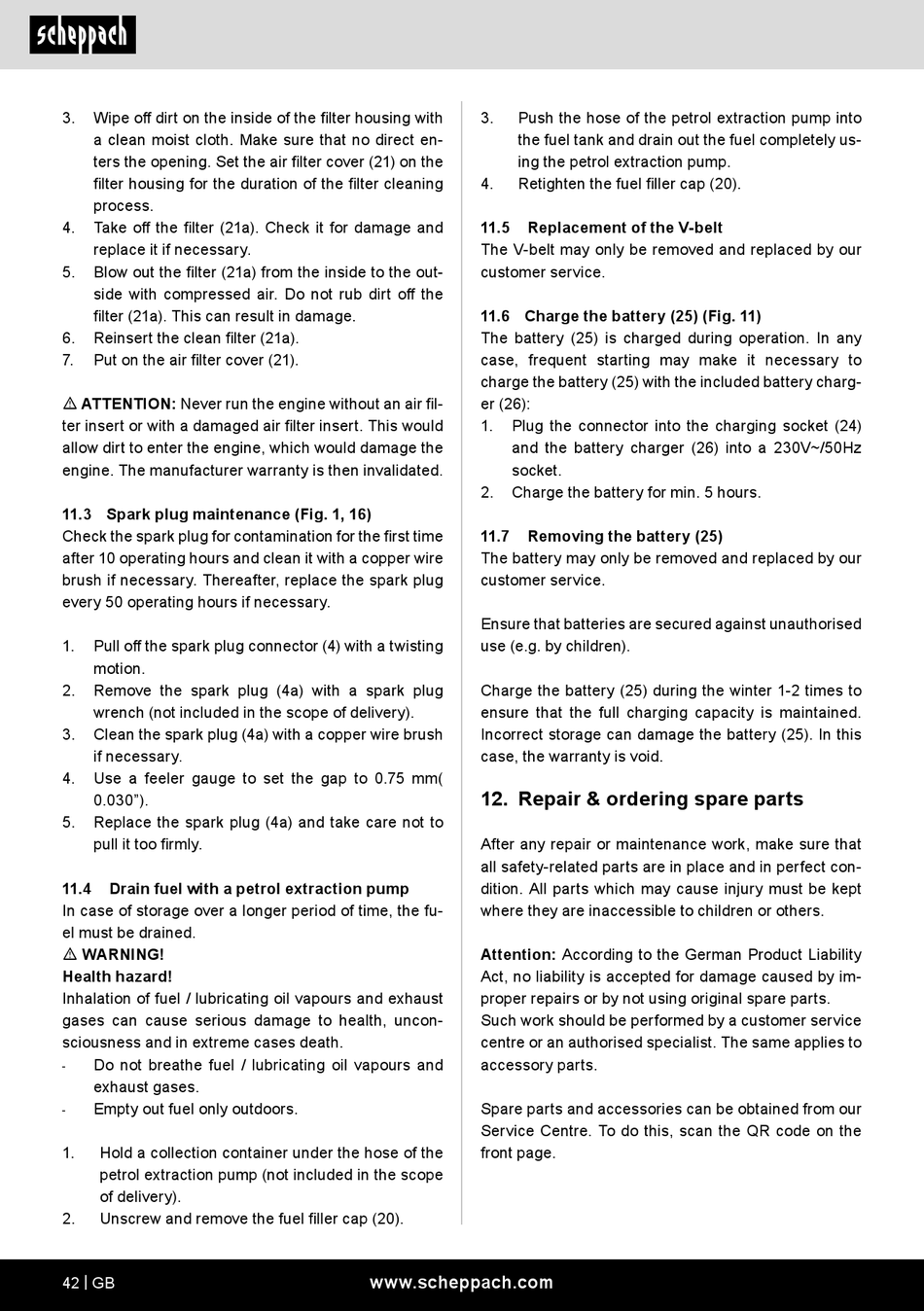

3.
Wipe off dirt on the inside of the filter housing with
a clean moist cloth. Make sure that no direct en-
ters the opening. Set the air filter cover (21) on the
filter housing for the duration of the filter cleaning
process.
4.
Take off the filter (21a). Check it for damage and
replace it if necessary.
5.
Blow out the filter (21a) from the inside to the out-
side with compressed air. Do not rub dirt off the
filter (21a). This can result in damage.
6.
Reinsert the clean filter (21a).
7.
Put on the air filter cover (21).
m ATTENTION: Never run the engine without an air fil-
ter insert or with a damaged air filter insert. This would
allow dirt to enter the engine, which would damage the
engine. The manufacturer warranty is then invalidated.
11.3 Spark plug maintenance (Fig. 1, 16)
Check the spark plug for contamination for the first time
after 10 operating hours and clean it with a copper wire
brush if necessary. Thereafter, replace the spark plug
every 50 operating hours if necessary.
1.
Pull off the spark plug connector (4) with a twisting
motion.
2.
Remove the spark plug (4a) with a spark plug
wrench (not included in the scope of delivery).
3.
Clean the spark plug (4a) with a copper wire brush
if necessary.
4.
Use a feeler gauge to set the gap to 0.75 mm(
0.030").
5.
Replace the spark plug (4a) and take care not to
pull it too firmly.
11.4
Drain fuel with a petrol extraction pump
In case of storage over a longer period of time, the fu-
el must be drained.
m WARNING!
Health hazard!
Inhalation of fuel / lubricating oil vapours and exhaust
gases can cause serious damage to health, uncon-
sciousness and in extreme cases death.
Do not breathe fuel / lubricating oil vapours and
-
exhaust gases.
Empty out fuel only outdoors.
-
1.
Hold a collection container under the hose of the
petrol extraction pump (not included in the scope
of delivery).
2.
Unscrew and remove the fuel filler cap (20).
42 | GB
3.
Push the hose of the petrol extraction pump into
the fuel tank and drain out the fuel completely us-
ing the petrol extraction pump.
4.
Retighten the fuel filler cap (20).
11.5
Replacement of the V-belt
The V-belt may only be removed and replaced by our
customer service.
11.6 Charge the battery (25) (Fig. 11)
The battery (25) is charged during operation. In any
case, frequent starting may make it necessary to
charge the battery (25) with the included battery charg-
er (26):
1.
Plug the connector into the charging socket (24)
and the battery charger (26) into a 230V~/50Hz
socket.
2.
Charge the battery for min. 5 hours.
11.7
Removing the battery (25)
The battery may only be removed and replaced by our
customer service.
Ensure that batteries are secured against unauthorised
use (e.g. by children).
Charge the battery (25) during the winter 1-2 times to
ensure that the full charging capacity is maintained.
Incorrect storage can damage the battery (25). In this
case, the warranty is void.
12. Repair & ordering spare parts
After any repair or maintenance work, make sure that
all safety-related parts are in place and in perfect con-
dition. All parts which may cause injury must be kept
where they are inaccessible to children or others.
Attention: According to the German Product Liability
Act, no liability is accepted for damage caused by im-
proper repairs or by not using original spare parts.
Such work should be performed by a customer service
centre or an authorised specialist. The same applies to
accessory parts.
Spare parts and accessories can be obtained from our
Service Centre. To do this, scan the QR code on the
front page.
www.scheppach.com
