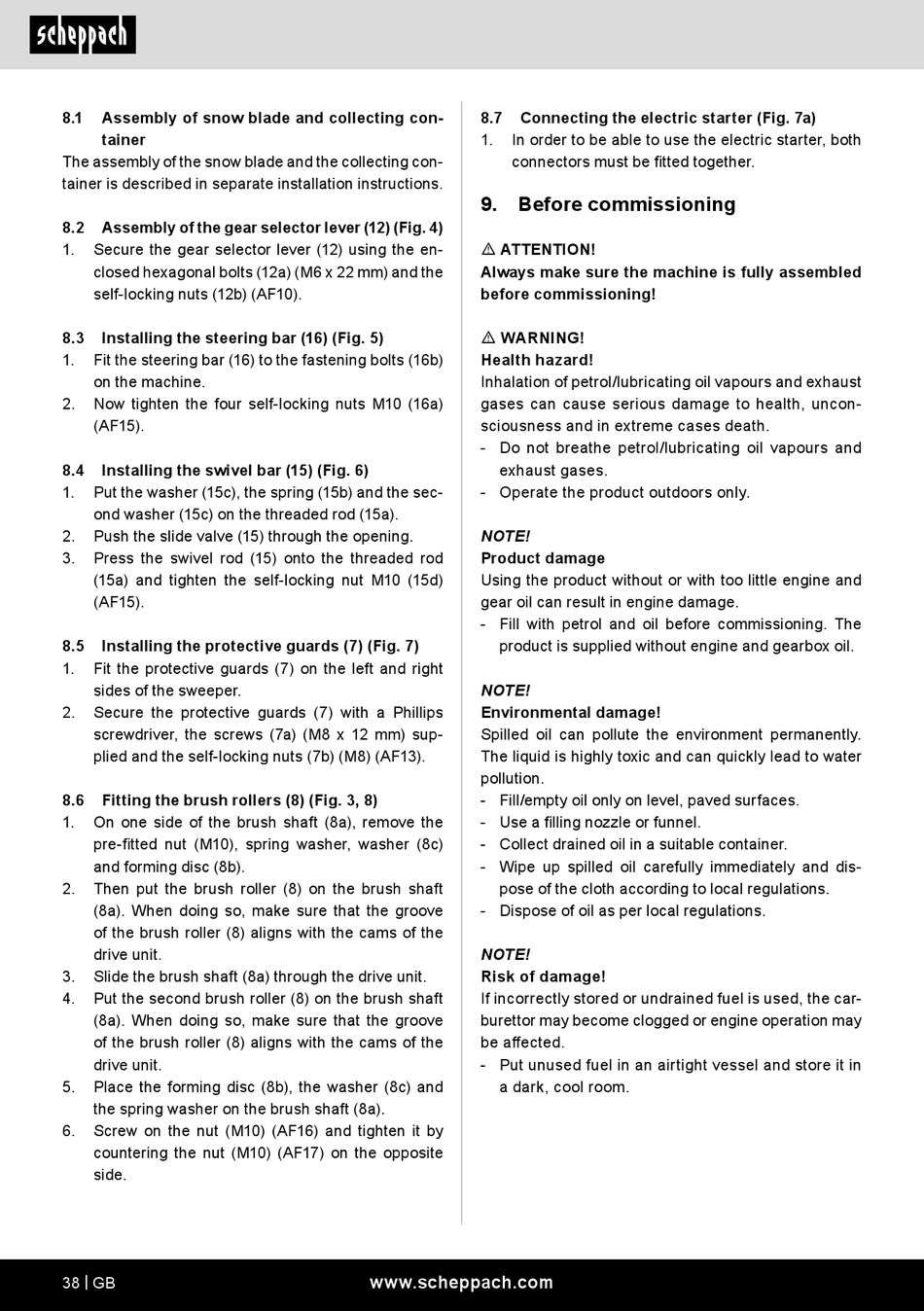

8.1
Assembly of snow blade and collecting con-
tainer
The assembly of the snow blade and the collecting con-
tainer is described in separate installation instructions.
8.2
Assembly of the gear selector lever (12) (Fig. 4)
1.
Secure the gear selector lever (12) using the en-
closed hexagonal bolts (12a) (M6 x 22 mm) and the
self-locking nuts (12b) (AF10).
8.3
Installing the steering bar (16) (Fig. 5)
1.
Fit the steering bar (16) to the fastening bolts (16b)
on the machine.
2.
Now tighten the four self-locking nuts M10 (16a)
(AF15).
8.4
Installing the swivel bar (15) (Fig. 6)
1.
Put the washer (15c), the spring (15b) and the sec-
ond washer (15c) on the threaded rod (15a).
2.
Push the slide valve (15) through the opening.
3.
Press the swivel rod (15) onto the threaded rod
(15a) and tighten the self-locking nut M10 (15d)
(AF15).
8.5
Installing the protective guards (7) (Fig. 7)
1.
Fit the protective guards (7) on the left and right
sides of the sweeper.
2.
Secure the protective guards (7) with a Phillips
screwdriver, the screws (7a) (M8 x 12 mm) sup-
plied and the self-locking nuts (7b) (M8) (AF13).
8.6
Fitting the brush rollers (8) (Fig. 3, 8)
1.
On one side of the brush shaft (8a), remove the
pre-fitted nut (M10), spring washer, washer (8c)
and forming disc (8b).
2.
Then put the brush roller (8) on the brush shaft
(8a). When doing so, make sure that the groove
of the brush roller (8) aligns with the cams of the
drive unit.
3.
Slide the brush shaft (8a) through the drive unit.
4.
Put the second brush roller (8) on the brush shaft
(8a). When doing so, make sure that the groove
of the brush roller (8) aligns with the cams of the
drive unit.
5.
Place the forming disc (8b), the washer (8c) and
the spring washer on the brush shaft (8a).
6.
Screw on the nut (M10) (AF16) and tighten it by
countering the nut (M10) (AF17) on the opposite
side.
38 | GB
8.7
Connecting the electric starter (Fig. 7a)
1.
In order to be able to use the electric starter, both
connectors must be fitted together.
9.
Before commissioning
m ATTENTION!
Always make sure the machine is fully assembled
before commissioning!
m WARNING!
Health hazard!
Inhalation of petrol/lubricating oil vapours and exhaust
gases can cause serious damage to health, uncon-
sciousness and in extreme cases death.
- Do not breathe petrol/lubricating oil vapours and
exhaust gases.
- Operate the product outdoors only.
NOTE!
Product damage
Using the product without or with too little engine and
gear oil can result in engine damage.
- Fill with petrol and oil before commissioning. The
product is supplied without engine and gearbox oil.
NOTE!
Environmental damage!
Spilled oil can pollute the environment permanently.
The liquid is highly toxic and can quickly lead to water
pollution.
- Fill/empty oil only on level, paved surfaces.
- Use a filling nozzle or funnel.
- Collect drained oil in a suitable container.
- Wipe up spilled oil carefully immediately and dis-
pose of the cloth according to local regulations.
- Dispose of oil as per local regulations.
NOTE!
Risk of damage!
If incorrectly stored or undrained fuel is used, the car-
burettor may become clogged or engine operation may
be affected.
- Put unused fuel in an airtight vessel and store it in
a dark, cool room.
