General information
Principle CD_

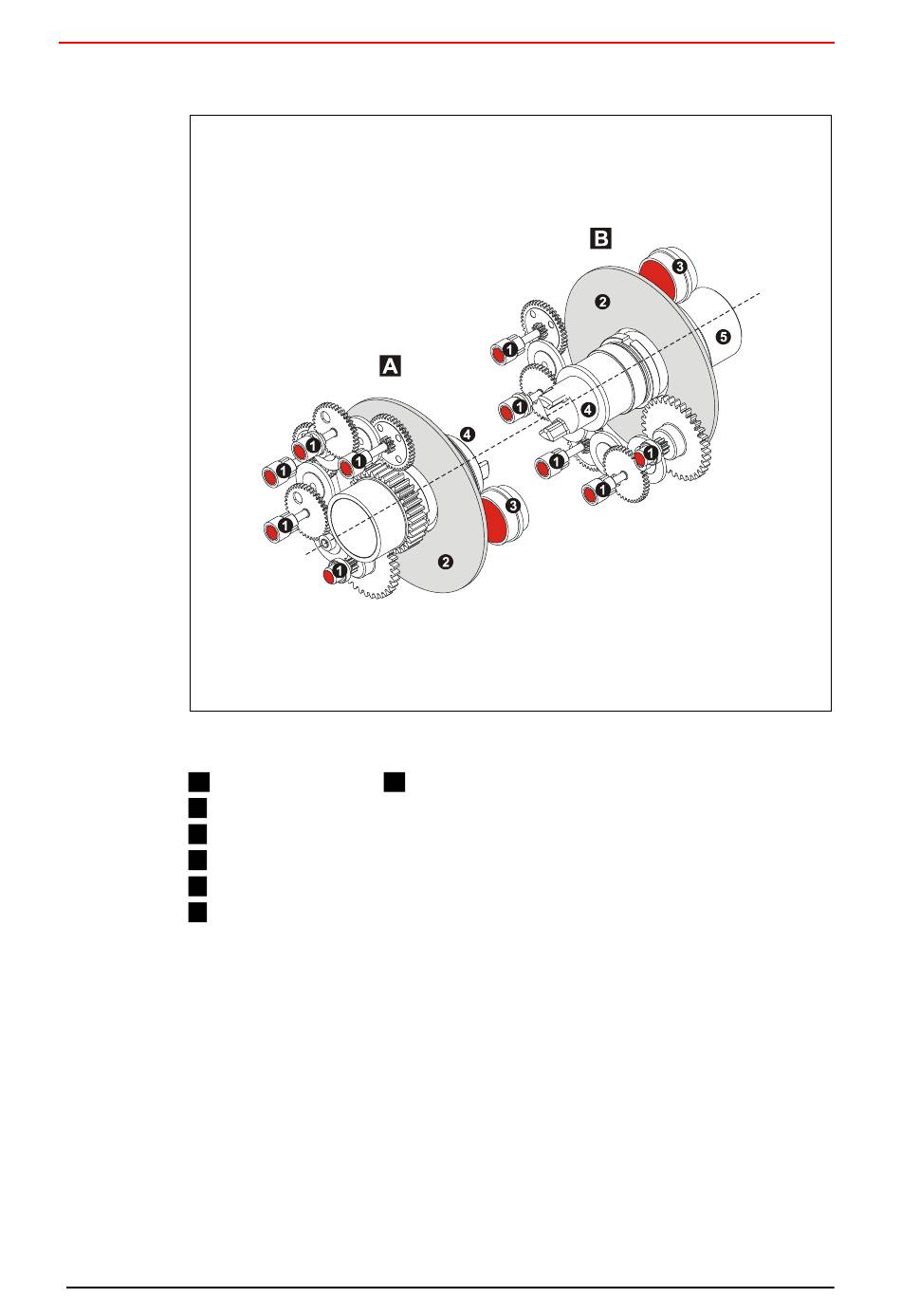

Figure 2: Measuring system operating principle (double scanning)
A : Measuring system 1,
1 : Magnet sources to identify the Number of Revolutions
2 : Code Disk to identify the Steps per Revolution
3 : IR-LEDs
4 : Claw coupling for the connection of the measuring systems
5 : Drive Shaft
