7.7.3.5.2 Set and store the IP parameter
Setting and storage of the IP parameter can be made in two ways by means of the
TCP/IP Interface Object, Class code 0xF5:
1. If the Set_Attribute_Single service is applied to attribute 5 the contents
2. If the value of attribute 3 Configuration Control = 0x02 and the

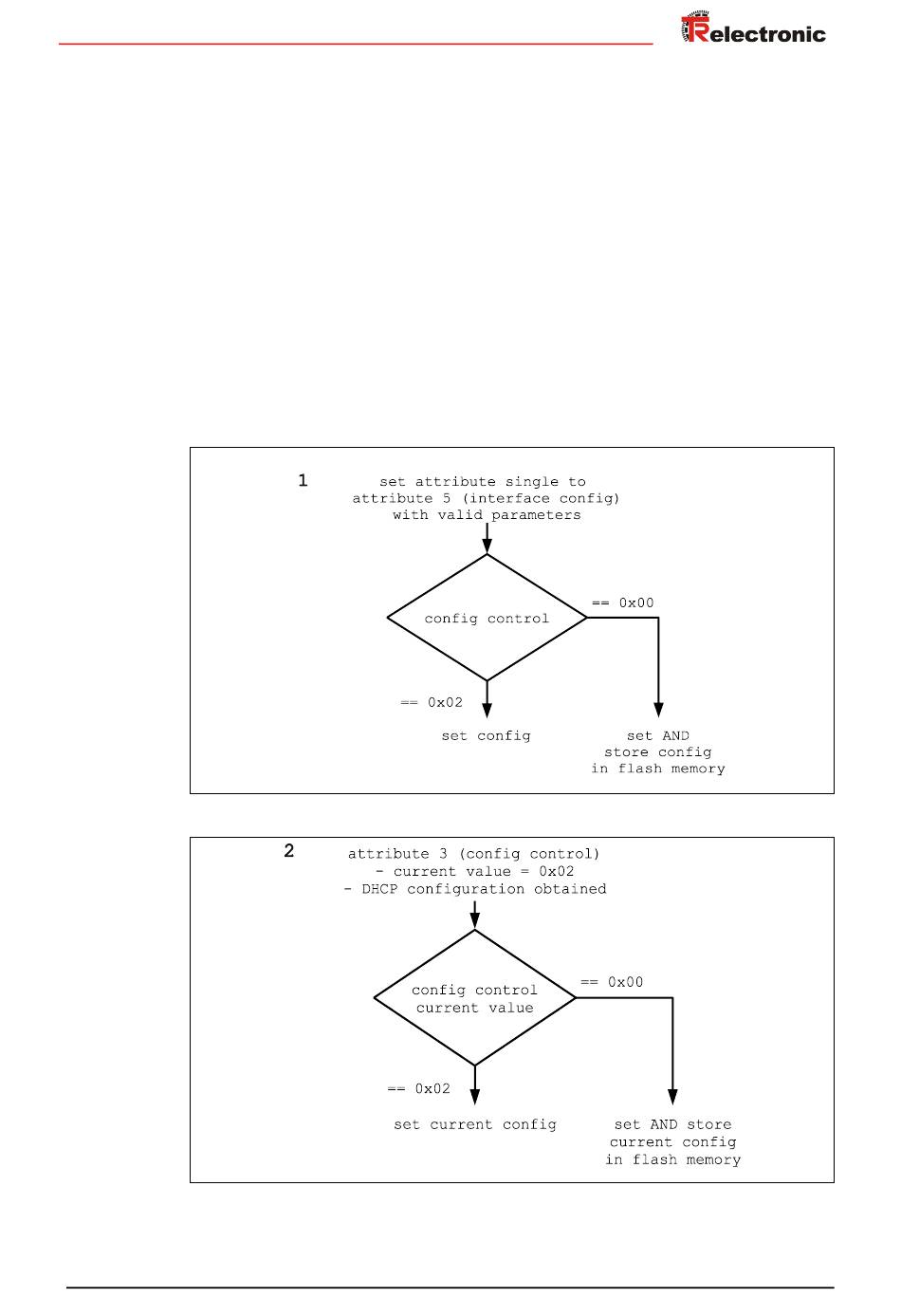

Flowcharts
Printed in the Federal Republic of Germany
01/27/2022
of the Interface Configuration will be set as new IP parameter. If the
value of the attribute 3 Configuration Control = 0x00 when this action is
performed, the configuration is stored permanently in the FLASH memory.
measuring system has obtained a configuration via DHCP, the IP parameters
are saved only temporarily. If then the value is set to 0x00 in the
Configuration Control, the current configuration is stored in the FLASH
memory permanently.
TR-ECE-BA-DGB-0102 v10
TR-Electronic GmbH 2013, All Rights Reserved
Page 161 of 175
