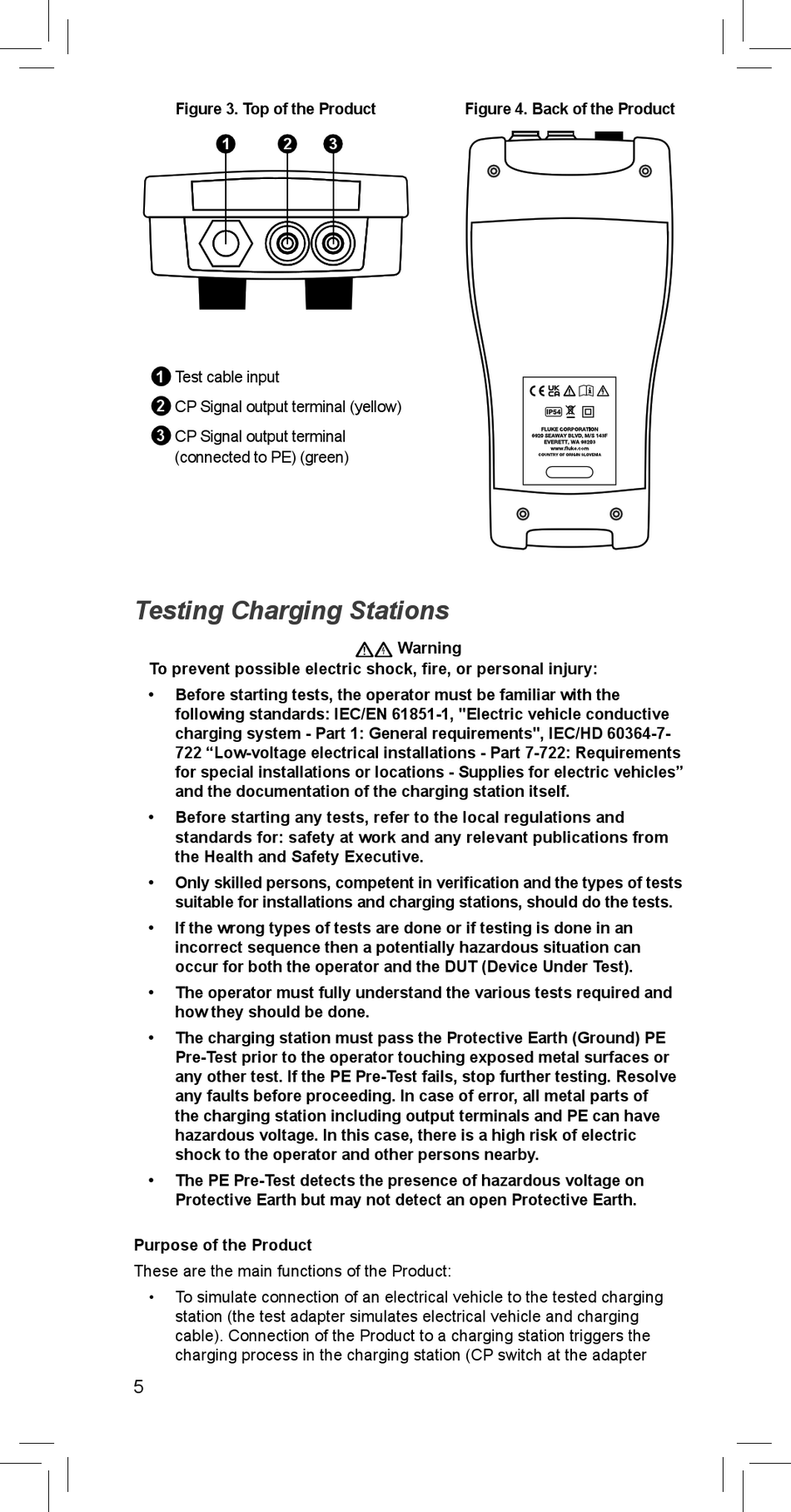

Figure 3. Top of the Product
1 2
1
Test cable input
2 CP Signal output terminal (yellow)
3
CP Signal output terminal
(connected to PE) (green)
Testing Charging Stations
To prevent possible electric shock, fire, or personal injury:
• Before starting tests, the operator must be familiar with the
following standards: IEC/EN 61851-1, "Electric vehicle conductive
charging system - Part 1: General requirements", IEC/HD 60364-7-
722 "Low-voltage electrical installations - Part 7-722: Requirements
for special installations or locations - Supplies for electric vehicles"
and the documentation of the charging station itself.
• Before starting any tests, refer to the local regulations and
standards for: safety at work and any relevant publications from
the Health and Safety Executive.
• Only skilled persons, competent in verification and the types of tests
suitable for installations and charging stations, should do the tests.
• If the wrong types of tests are done or if testing is done in an
incorrect sequence then a potentially hazardous situation can
occur for both the operator and the DUT (Device Under Test).
• The operator must fully understand the various tests required and
how they should be done.
• The charging station must pass the Protective Earth (Ground) PE
Pre-Test prior to the operator touching exposed metal surfaces or
any other test. If the PE Pre-Test fails, stop further testing. Resolve
any faults before proceeding. In case of error, all metal parts of
the charging station including output terminals and PE can have
hazardous voltage. In this case, there is a high risk of electric
shock to the operator and other persons nearby.
• The PE Pre-Test detects the presence of hazardous voltage on
Protective Earth but may not detect an open Protective Earth.
Purpose of the Product
These are the main functions of the Product:
• To simulate connection of an electrical vehicle to the tested charging
station (the test adapter simulates electrical vehicle and charging
cable). Connection of the Product to a charging station triggers the
charging process in the charging station (CP switch at the adapter
5
Figure 4. Back of the Product
3
WX Warning
