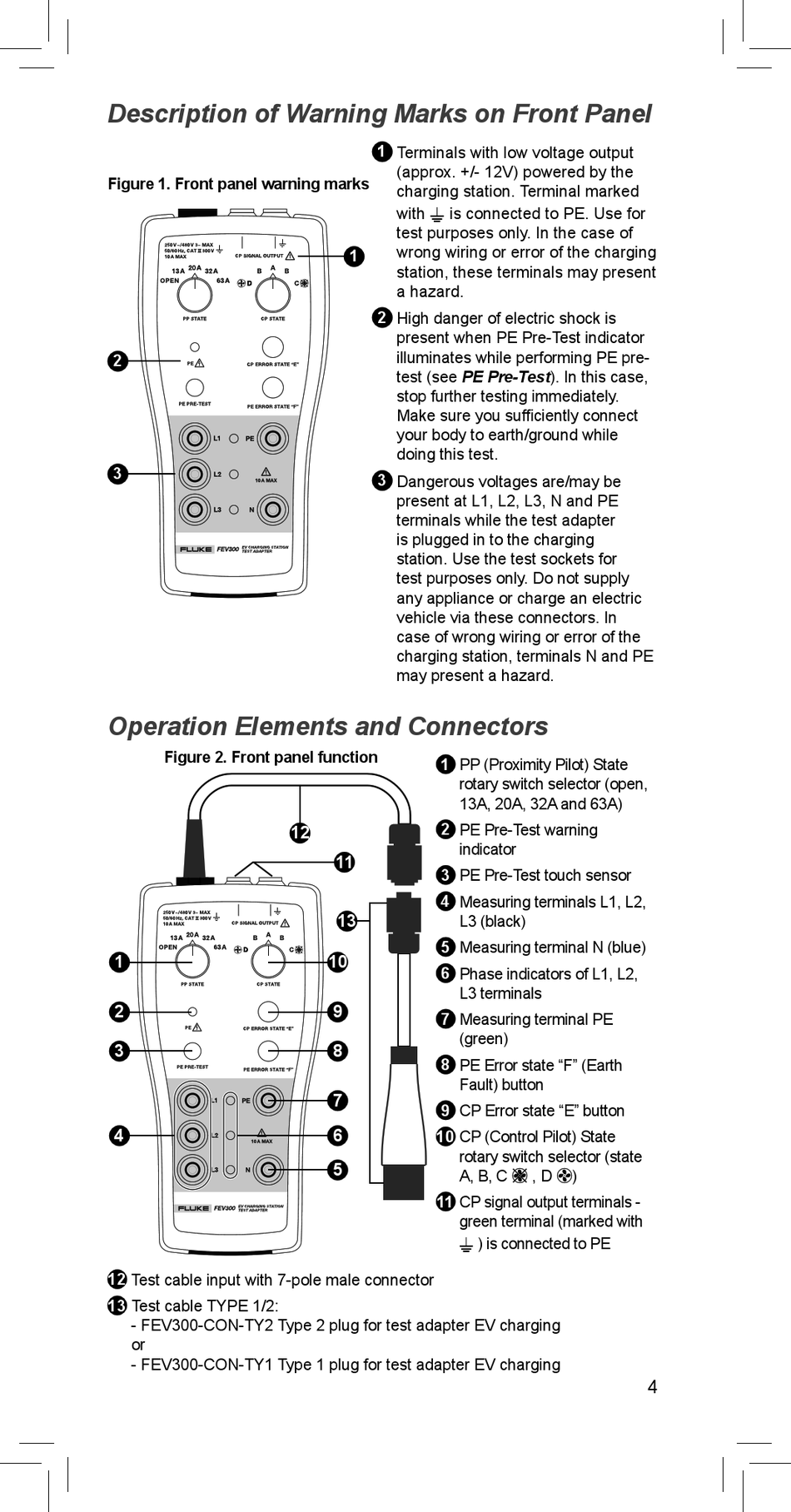

Description of Warning Marks on Front Panel
Figure 1. Front panel warning marks
2
3
Operation Elements and Connectors
Figure 2. Front panel function
1
2
3
4
12
Test cable input with 7-pole male connector
13 Test cable TYPE 1/2:
- FEV300-CON-TY2 Type 2 plug for test adapter EV charging
or
- FEV300-CON-TY1 Type 1 plug for test adapter EV charging
1
Terminals with low voltage output
(approx. +/- 12V) powered by the
charging station. Terminal marked
with
J
test purposes only. In the case of
wrong wiring or error of the charging
1
station, these terminals may present
a hazard.
2
High danger of electric shock is
present when PE Pre-Test indicator
illuminates while performing PE pre-
test (see PE Pre-Test). In this case,
stop further testing immediately.
Make sure you sufficiently connect
your body to earth/ground while
doing this test.
3
Dangerous voltages are/may be
present at L1, L2, L3, N and PE
terminals while the test adapter
is plugged in to the charging
station. Use the test sockets for
test purposes only. Do not supply
any appliance or charge an electric
vehicle via these connectors. In
case of wrong wiring or error of the
charging station, terminals N and PE
may present a hazard.
12
11
13
10
9
8
7
6
10
5
11
is connected to PE. Use for
1
PP (Proximity Pilot) State
rotary switch selector (open,
13A, 20A, 32A and 63A)
2
PE Pre-Test warning
indicator
3
PE Pre-Test touch sensor
4
Measuring terminals L1, L2,
L3 (black)
5
Measuring terminal N (blue)
6 Phase indicators of L1, L2,
L3 terminals
7 Measuring terminal PE
(green)
8
PE Error state "F" (Earth
Fault) button
9
CP Error state "E" button
CP (Control Pilot) State
rotary switch selector (state
A, B, C , D )
CP signal output terminals -
green terminal (marked with
) is connected to PE
J
4
