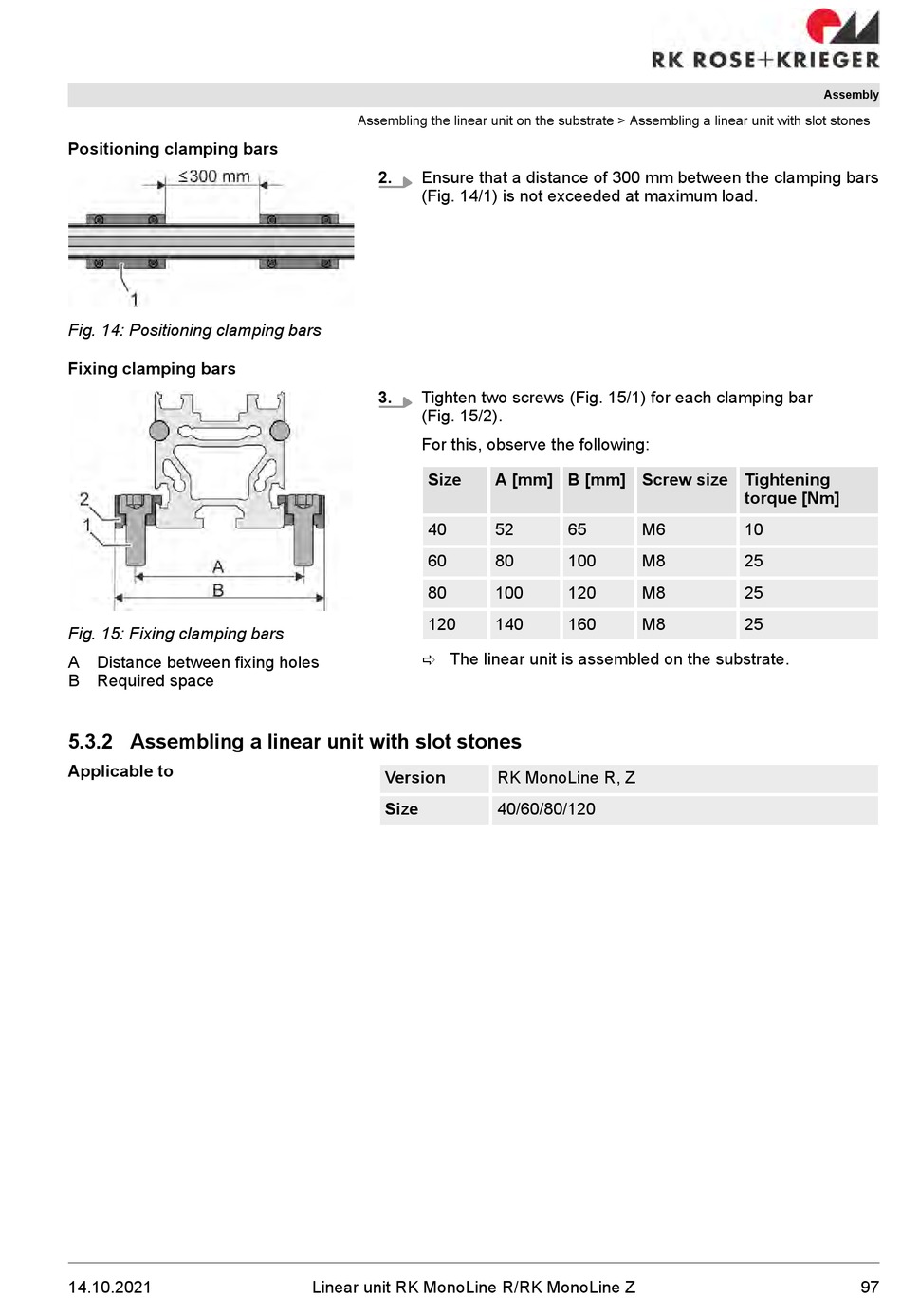

Positioning clamping bars
Fig. 14: Positioning clamping bars
Fixing clamping bars
Fig. 15: Fixing clamping bars
A Distance between fixing holes
B Required space

5.3.2 Assembling a linear unit with slot stones

Applicable to
14.10.2021
Assembling the linear unit on the substrate > Assembling a linear unit with slot stones
2. Ensure that a distance of 300 mm between the clamping bars
(Fig. 14/1) is not exceeded at maximum load.
3. Tighten two screws (Fig. 15/1) for each clamping bar
(Fig. 15/2).
For this, observe the following:
Size
40
60
80
120
ð The linear unit is assembled on the substrate.
Version
Size
Linear unit RK MonoLine R/RK MonoLine Z
A [mm] B [mm] Screw size Tightening
52 65 M6
80 100 M8
100 120 M8
140 160 M8
RK MonoLine R, Z
40/60/80/120
Assembly
torque [Nm]
10
25
25
25
97
