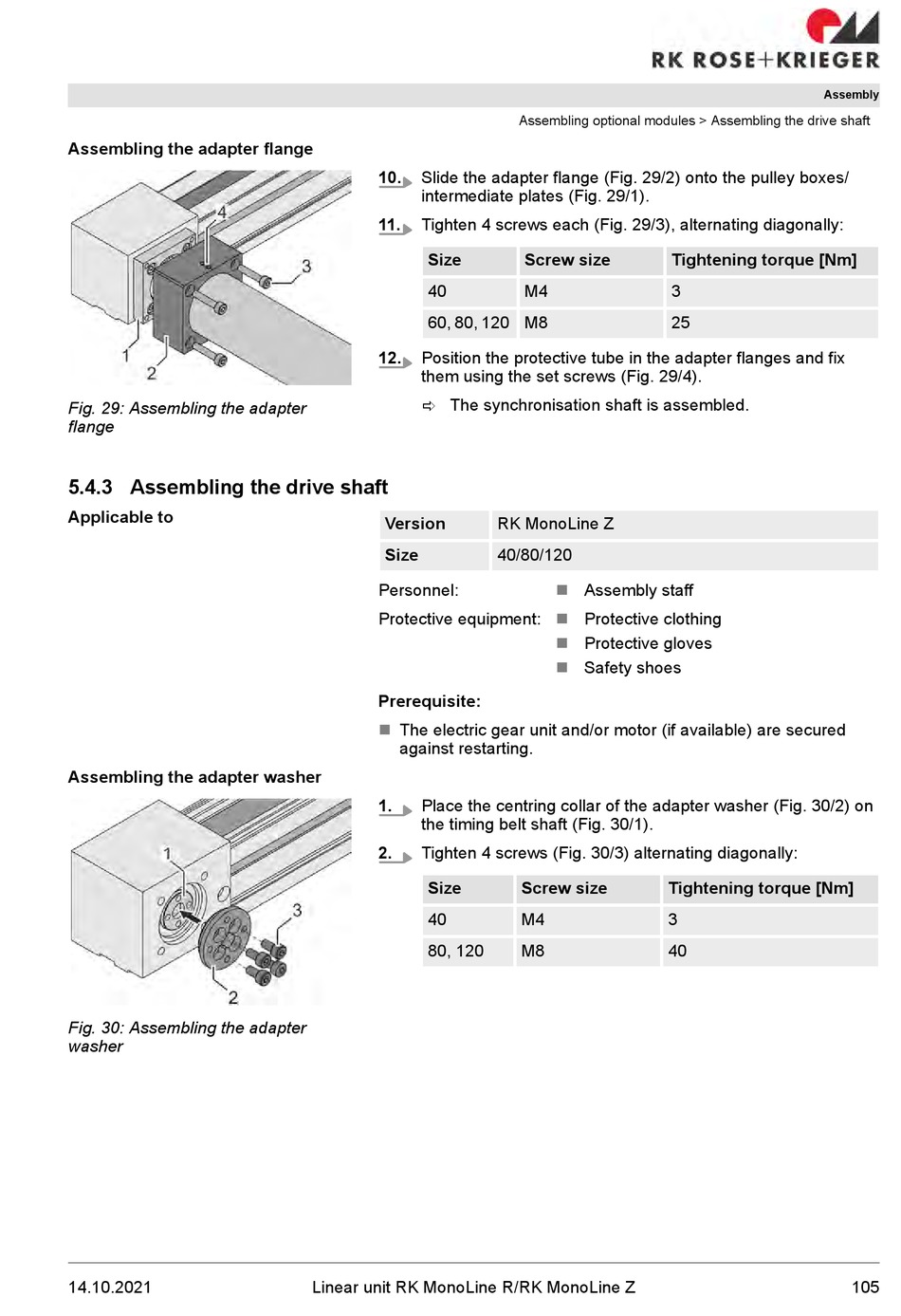

Assembling the adapter flange
Fig. 29: Assembling the adapter
flange
5.4.3 Assembling the drive shaft
Applicable to
Assembling the adapter washer
Fig. 30: Assembling the adapter
washer
14.10.2021
10.
Slide the adapter flange (Fig. 29/2) onto the pulley boxes/
intermediate plates (Fig. 29/1).
11.
Tighten 4 screws each (Fig. 29/3), alternating diagonally:
Size
40
60, 80, 120 M8
12.
Position the protective tube in the adapter flanges and fix
them using the set screws (Fig. 29/4).
ð The synchronisation shaft is assembled.
Version
Size
Personnel:
Protective equipment:
Prerequisite:
n
The electric gear unit and/or motor (if available) are secured
against restarting.
1.
Place the centring collar of the adapter washer (Fig. 30/2) on
the timing belt shaft (Fig. 30/1).
2.
Tighten 4 screws (Fig. 30/3) alternating diagonally:
Size
40
80, 120
Linear unit RK MonoLine R/RK MonoLine Z
Assembling optional modules > Assembling the drive shaft
Screw size
M4
RK MonoLine Z
40/80/120
n
Assembly staff
n
Protective clothing
n
Protective gloves
n
Safety shoes
Screw size
M4
M8
Assembly
Tightening torque [Nm]
3
25
Tightening torque [Nm]
3
40
105
