Assembly
Assembling optional modules > Assembling the drive shaft

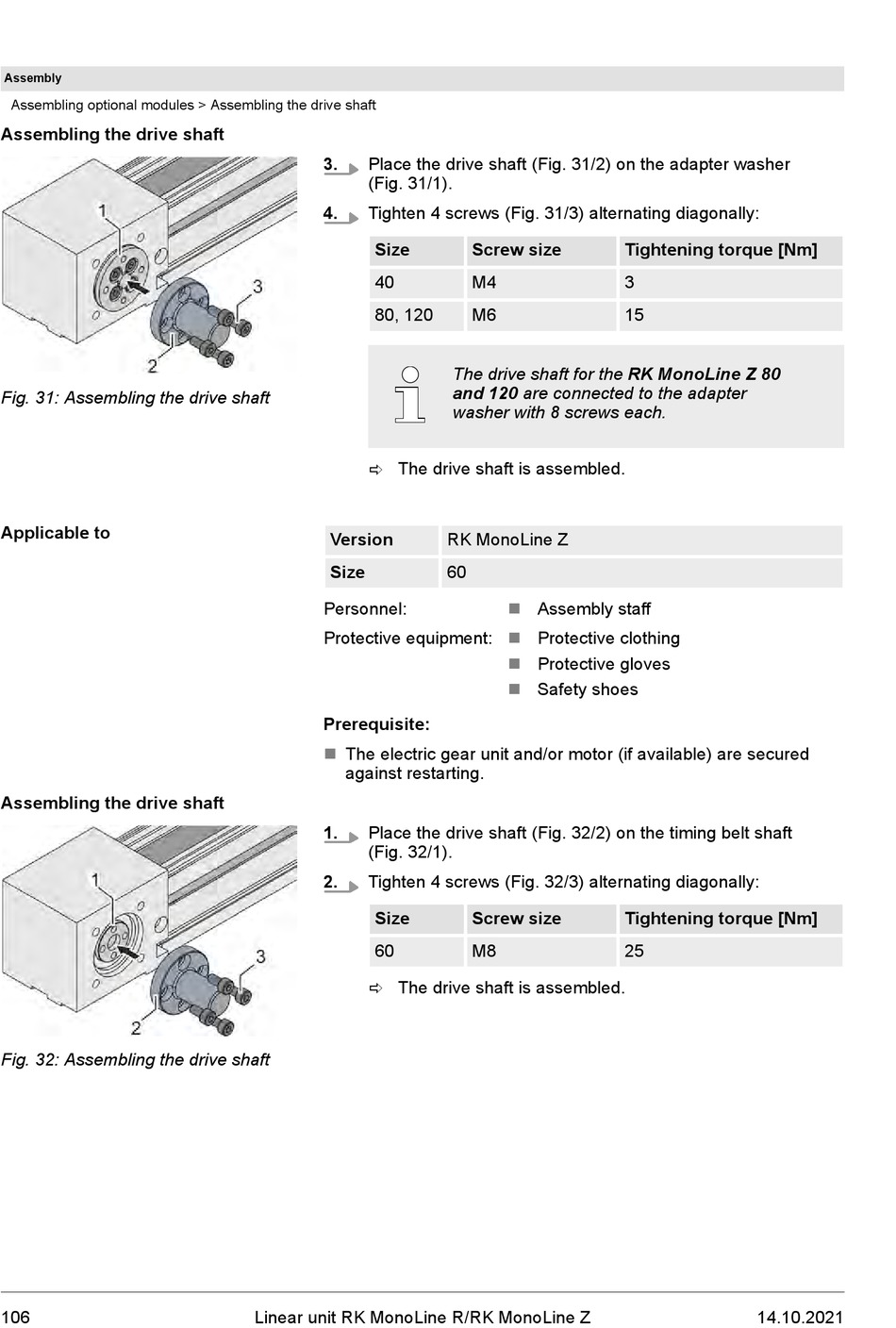

Assembling the drive shaft
Fig. 31: Assembling the drive shaft
Applicable to
Assembling the drive shaft
Fig. 32: Assembling the drive shaft
106
3. Place the drive shaft (Fig. 31/2) on the adapter washer
(Fig. 31/1).
4. Tighten 4 screws (Fig. 31/3) alternating diagonally:
Size
40
80, 120
ð The drive shaft is assembled.
Version
Size
Personnel:
Protective equipment:
Prerequisite:
n The electric gear unit and/or motor (if available) are secured
against restarting.
1. Place the drive shaft (Fig. 32/2) on the timing belt shaft
(Fig. 32/1).
2. Tighten 4 screws (Fig. 32/3) alternating diagonally:
Size
60
ð The drive shaft is assembled.
Linear unit RK MonoLine R/RK MonoLine Z
Screw size
M4
M6
The drive shaft for the RK MonoLine Z 80
and 120 are connected to the adapter
washer with 8 screws each.
RK MonoLine Z
60
n Assembly staff
n Protective clothing
Protective gloves
n
Safety shoes
n
Screw size
M8
Tightening torque [Nm]
3
15
Tightening torque [Nm]
25
