Set-up and function
3.1 Overview
RK MonoLine R

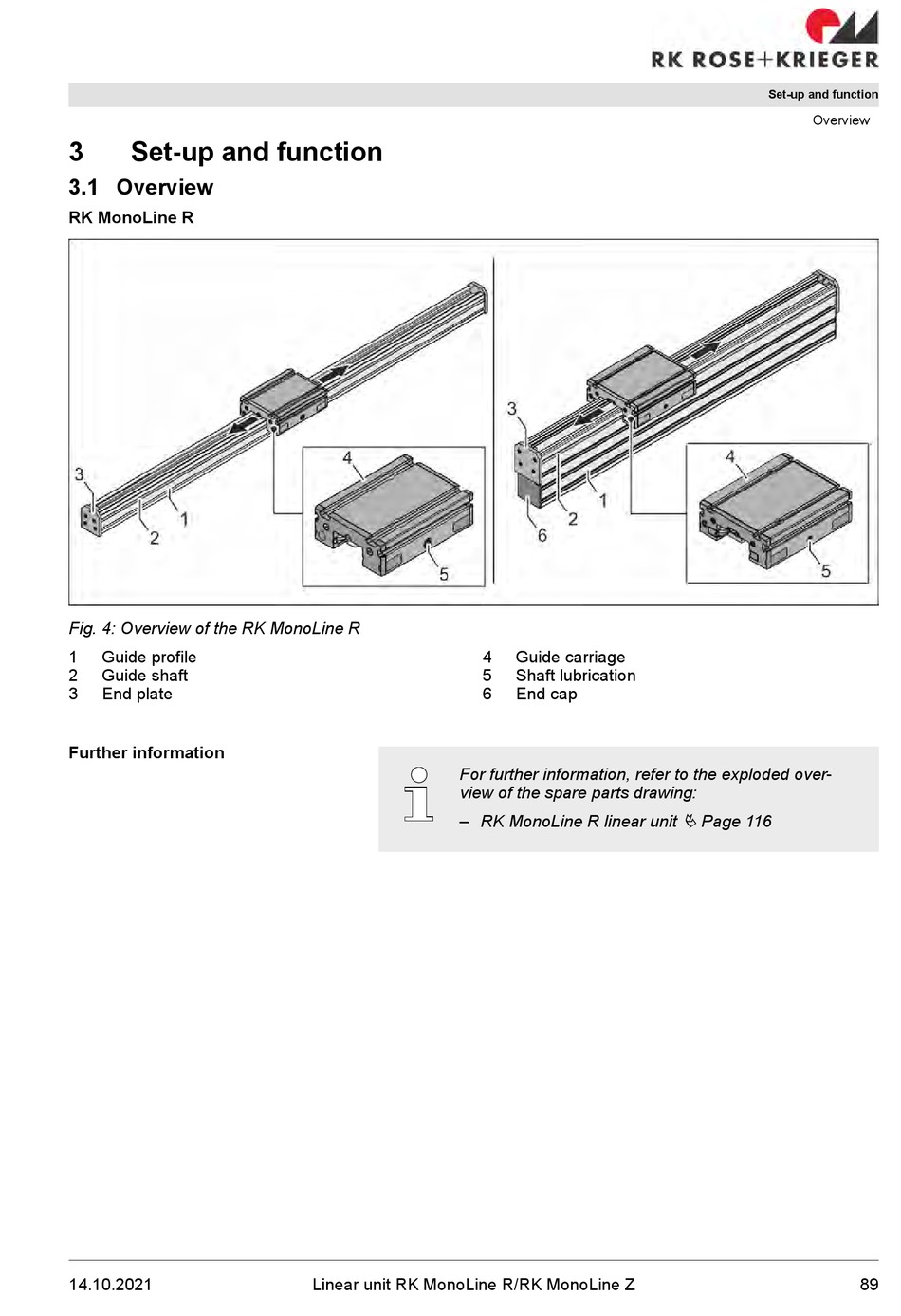

Fig. 4: Overview of the RK MonoLine R
1
Guide profile
2
Guide shaft
3
End plate
Further information
14.10.2021
For further information, refer to the exploded over-
view of the spare parts drawing:
– RK MonoLine R linear unit
Linear unit RK MonoLine R/RK MonoLine Z
4
Guide carriage
5
Shaft lubrication
6
End cap
Set-up and function
Overview
Ä Page 116
