Assembly
Assembling optional modules > Assembling the motor
Assembling the clamping hub

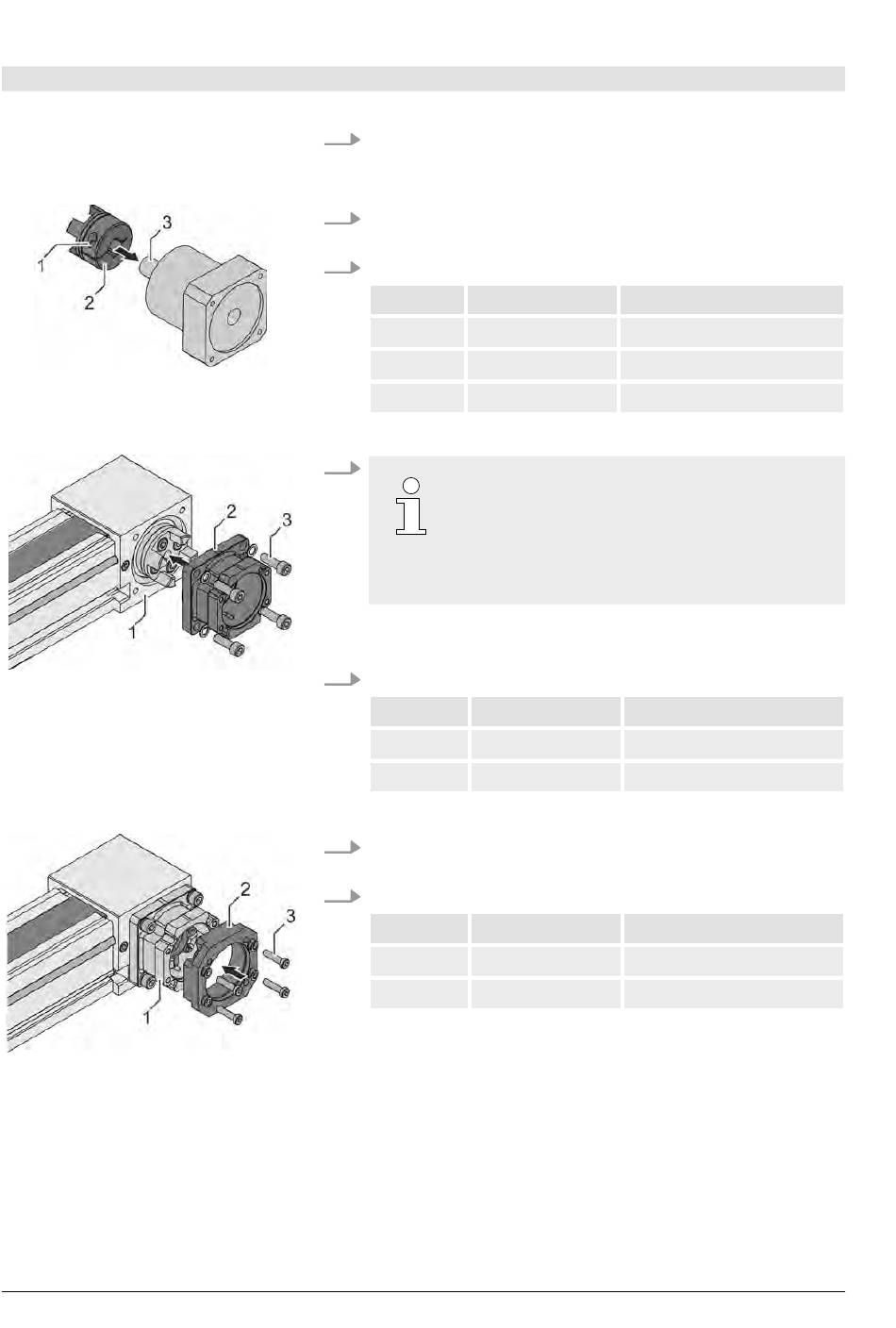

Fig. 19: Assembling the clamping hub
Assembling the coupling housing
Fig. 20: Assembling the coupling
housing
Assembling the motor plate
Fig. 21: Assembling the motor plate
100
3. Insert the gear ring (Fig. 18/4) into the screw-in hub
(Fig. 18/2).
4. Slide the coupling's clamping hub (Fig. 19/2) onto the motor's
motor shaft (Fig. 19/3).
5. Tighten the screw (Fig. 19/1) on the clamping hub:
Size
40
60, 80
120
6.
Place the coupling housing (Fig. 20/2) on the pulley box
(Fig. 20/1).
7. Tighten 4 screws (Fig. 20/3) alternating diagonally:
Size
40
60, 80, 120 M8
8. Place the motor plate (Fig. 21/2) on the coupling housing
(Fig. 21/1).
9. Tighten 4 screws (Fig. 21/3) alternating diagonally:
Size
40
60, 80, 120 M6
Linear unit RK MonoLine R/RK MonoLine Z
Screw size
M3
M6
M8
The following applies to the RK Mono-
Line Z 40:
Before the coupling housing is assembled,
the centring ring is inserted into the pulley
box.
Screw size
M5
Screw size
M5
Tightening torque [Nm]
1.4
10.5
25
Tightening torque [Nm]
5.9
25
Tightening torque [Nm]
4
10
