Set-up and function

Function description

RK MonoLine Z

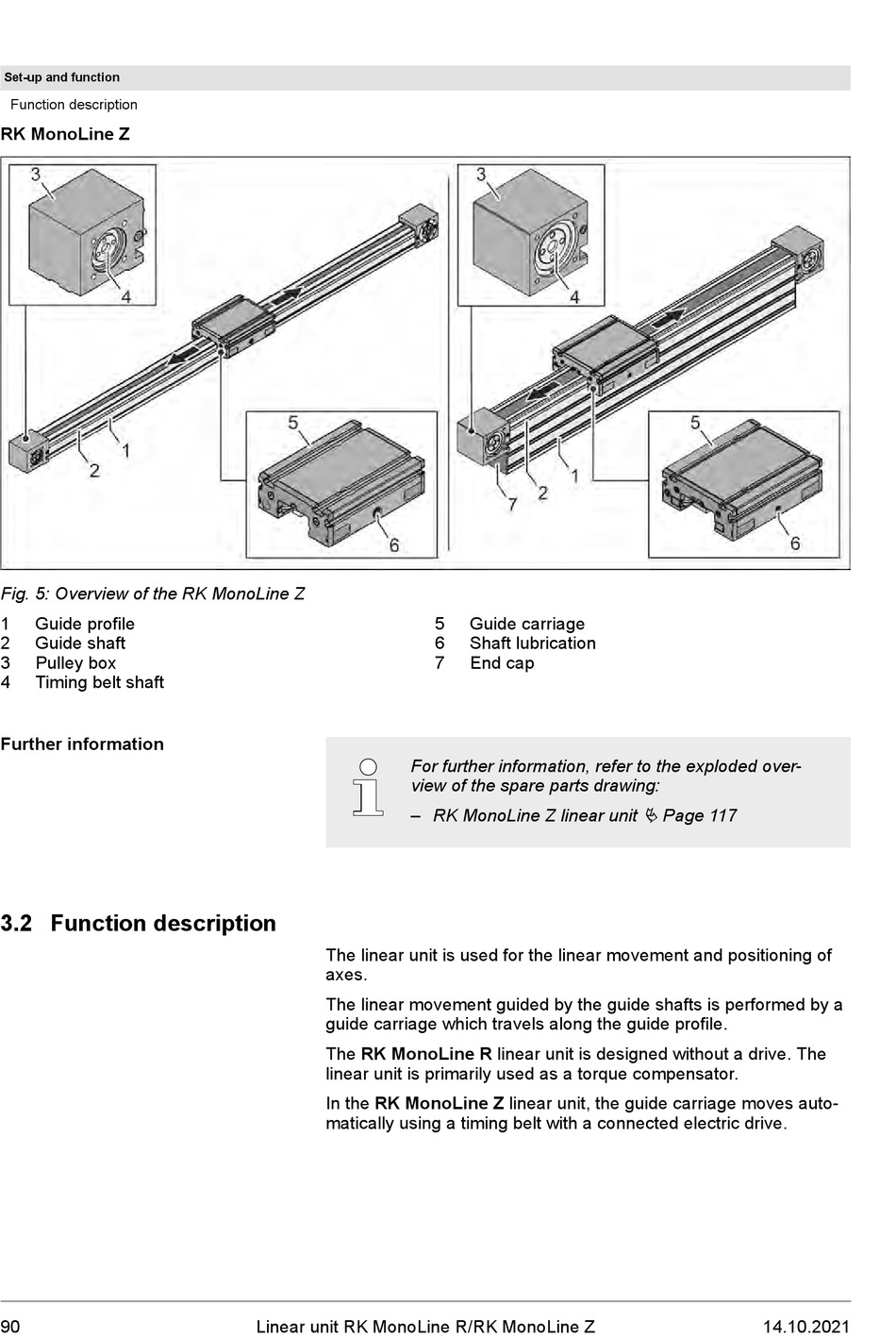

Fig. 5: Overview of the RK MonoLine Z
1 Guide profile
2 Guide shaft
3 Pulley box
4 Timing belt shaft
Further information
3.2 Function description
90
For further information, refer to the exploded over-
view of the spare parts drawing:
– RK MonoLine Z linear unit
The linear unit is used for the linear movement and positioning of
axes.
The linear movement guided by the guide shafts is performed by a
guide carriage which travels along the guide profile.
The RK MonoLine R linear unit is designed without a drive. The
linear unit is primarily used as a torque compensator.
In the RK MonoLine Z linear unit, the guide carriage moves auto-
matically using a timing belt with a connected electric drive.
Linear unit RK MonoLine R/RK MonoLine Z
5 Guide carriage
6 Shaft lubrication
7 End cap
