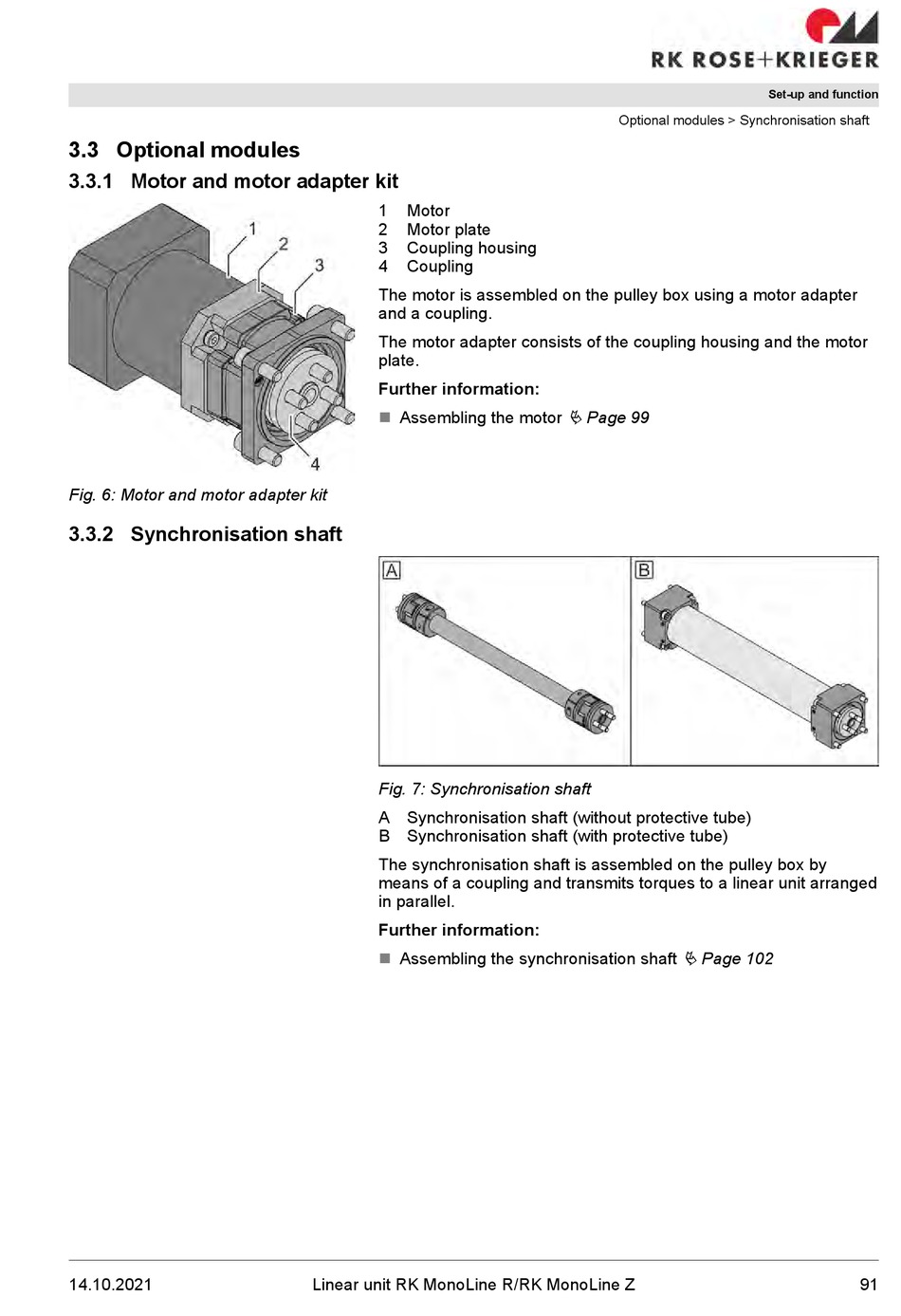

3.3 Optional modules

3.3.1 Motor and motor adapter kit

Fig. 6: Motor and motor adapter kit

3.3.2 Synchronisation shaft

14.10.2021
1 Motor
2 Motor plate
3 Coupling housing
4 Coupling
The motor is assembled on the pulley box using a motor adapter
and a coupling.
The motor adapter consists of the coupling housing and the motor
plate.
Further information:
n Assembling the motor
Fig. 7: Synchronisation shaft
A Synchronisation shaft (without protective tube)
B Synchronisation shaft (with protective tube)
The synchronisation shaft is assembled on the pulley box by
means of a coupling and transmits torques to a linear unit arranged
in parallel.
Further information:
n Assembling the synchronisation shaft
Linear unit RK MonoLine R/RK MonoLine Z
Optional modules > Synchronisation shaft
Ä Page 99
Ä Page 102
