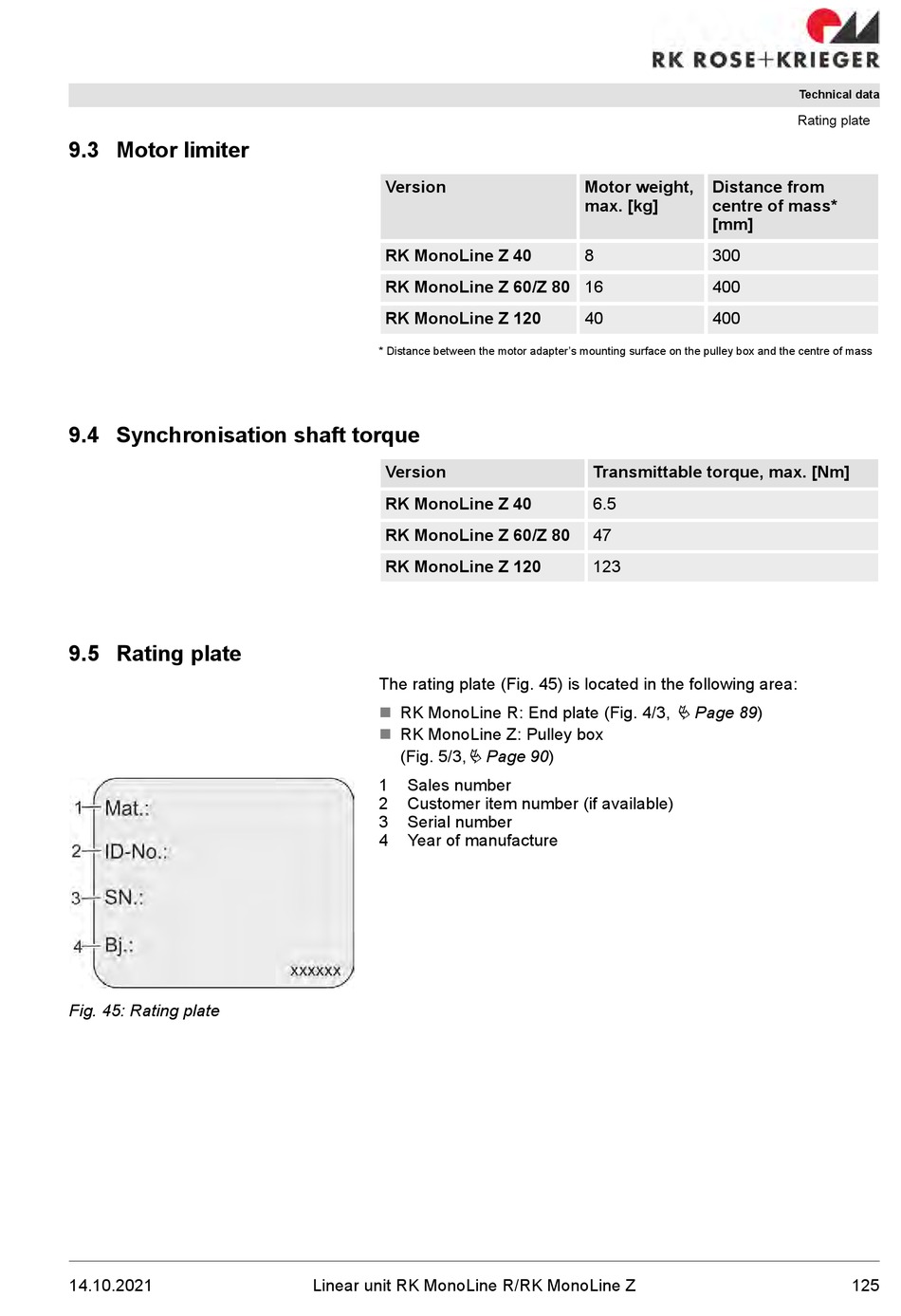

9.3 Motor limiter

9.4 Synchronisation shaft torque

9.5 Rating plate

Fig. 45: Rating plate
14.10.2021
Version
RK MonoLine Z 40
RK MonoLine Z 60/Z 80 16
RK MonoLine Z 120
* Distance between the motor adapter's mounting surface on the pulley box and the centre of mass
Version
RK MonoLine Z 40
RK MonoLine Z 60/Z 80
RK MonoLine Z 120
The rating plate (Fig. 45) is located in the following area:
n RK MonoLine R: End plate (Fig. 4/3,
n RK MonoLine Z: Pulley box
Ä Page 90)
(Fig. 5/3,
1 Sales number
2 Customer item number (if available)
3 Serial number
4 Year of manufacture
Linear unit RK MonoLine R/RK MonoLine Z
Motor weight, Distance from
max. [kg] centre of mass*
[mm]
8 300
400
40 400
Transmittable torque, max. [Nm]
6.5
47
123
Ä Page 89)
Technical data
Rating plate
