Spare parts

Spare parts list for the RK MonoLine R linear unit

7.2 Spare parts list for the RK MonoLine R linear unit

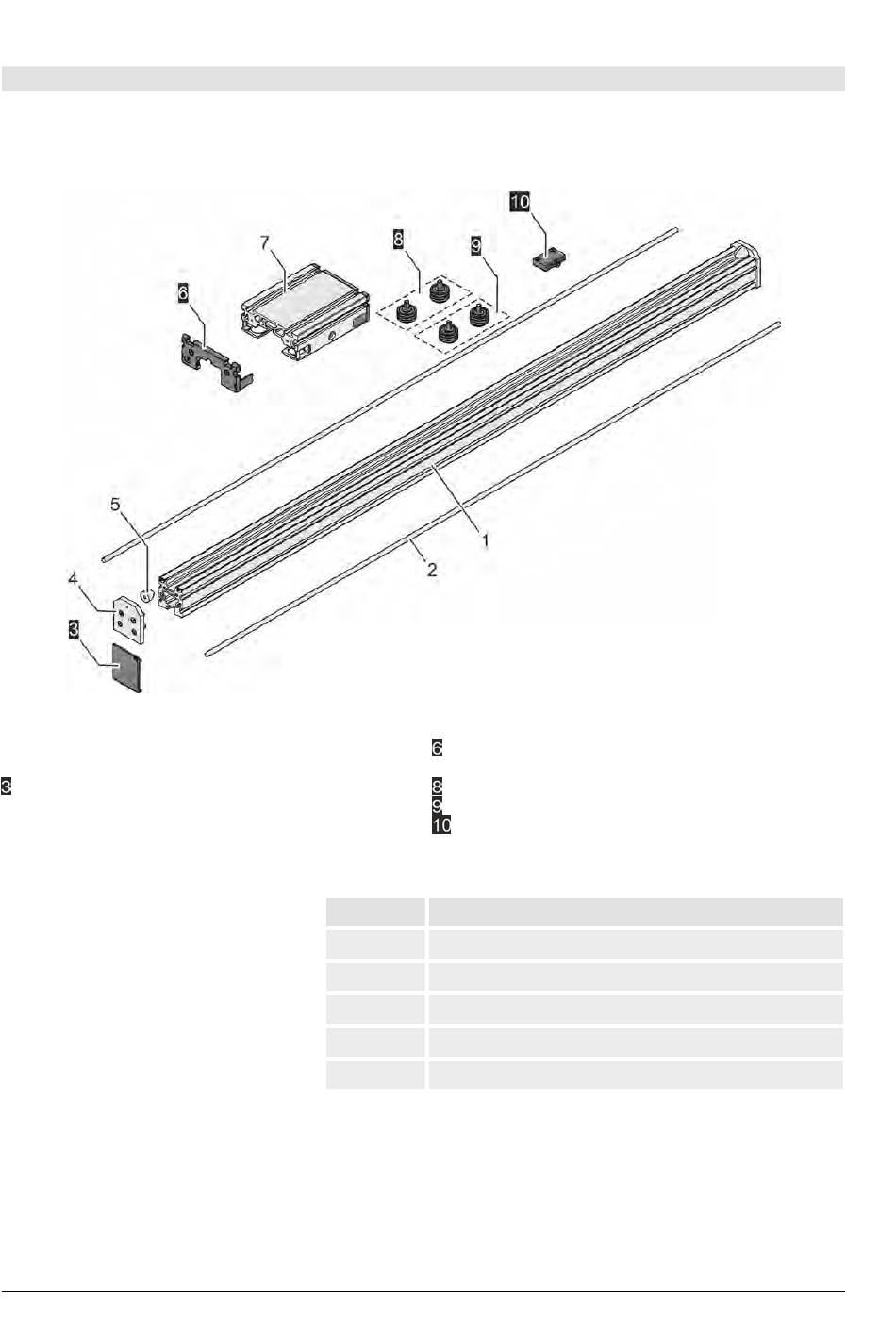

Spare parts drawing
Fig. 41: RK MonoLine R linear unit
1 Guide profile
2 Guide shaft
Guide profile end cap
(80 x 120, 80 x 160)
4 End plate
5 Parabolic buffer
Spare parts list
116
- exploded overview
No.
Fig. 41/3
Fig. 41/6
Fig. 41/8
Fig. 41/9
Fig. 41/10
Linear unit RK MonoLine R/RK MonoLine Z
Guide carriage end cap
7 Guide carriage
Roller with centric bolt
Roller with eccentric bolt
Shaft lubrication
Spare parts for RK MonoLine R 40/60/80/120
Guide profile end cap
Guide carriage end cap
Roller with centric bolt
Roller with eccentric bolt
Shaft lubrication
