Overview - RK Rose+Krieger RK MonoLine R Montageanleitung

1

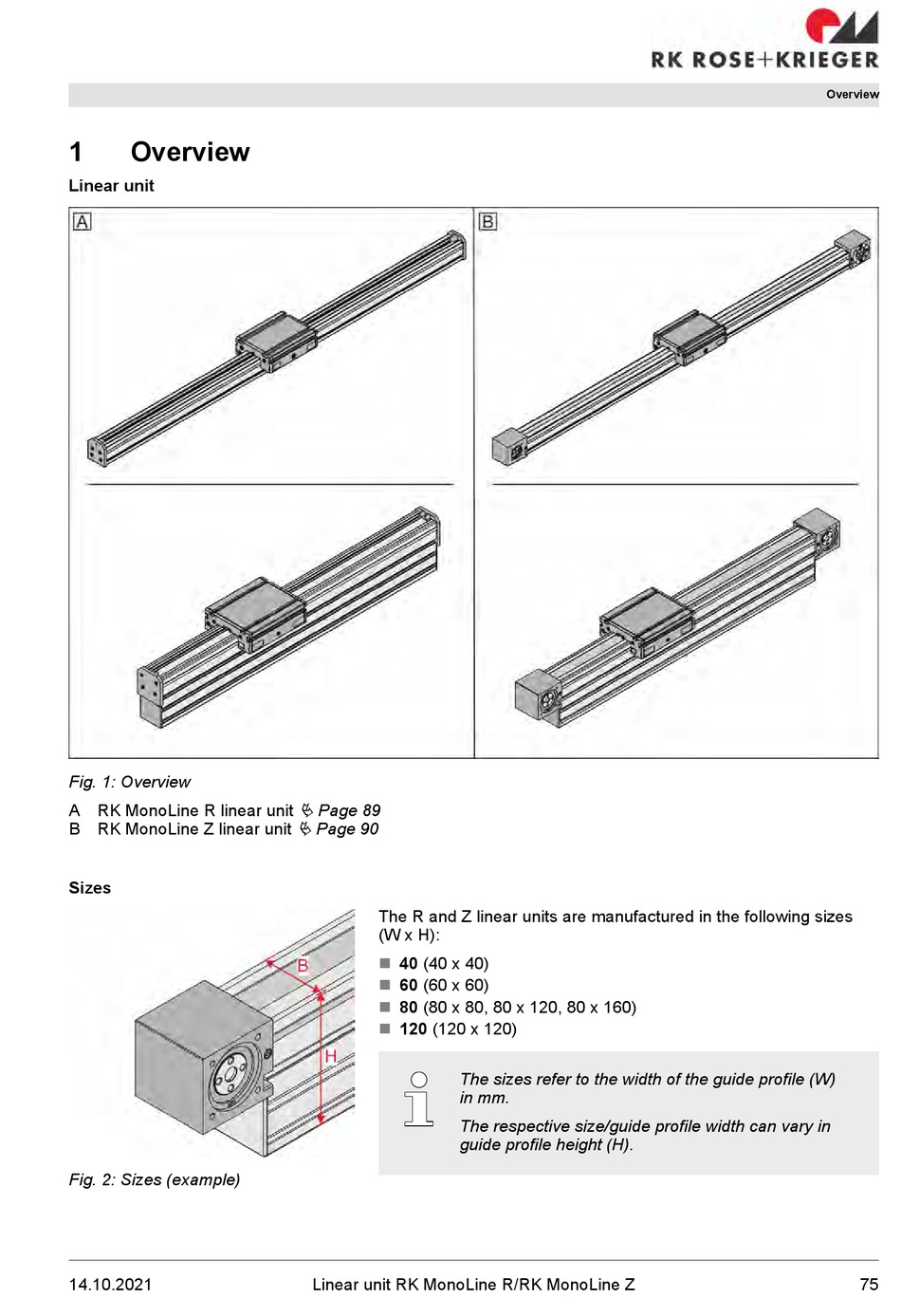

Overview

Linear unit
Fig. 1: Overview
A RK MonoLine R linear unit
B RK MonoLine Z linear unit
Sizes
Fig. 2: Sizes (example)
14.10.2021
Ä Page 89
Ä Page 90
The R and Z linear units are manufactured in the following sizes
(W x H):
n 40 (40 x 40)
n 60 (60 x 60)
n 80 (80 x 80, 80 x 120, 80 x 160)
n 120 (120 x 120)
The sizes refer to the width of the guide profile (W)
in mm.
The respective size/guide profile width can vary in
guide profile height (H).
Linear unit RK MonoLine R/RK MonoLine Z

Overview

75
