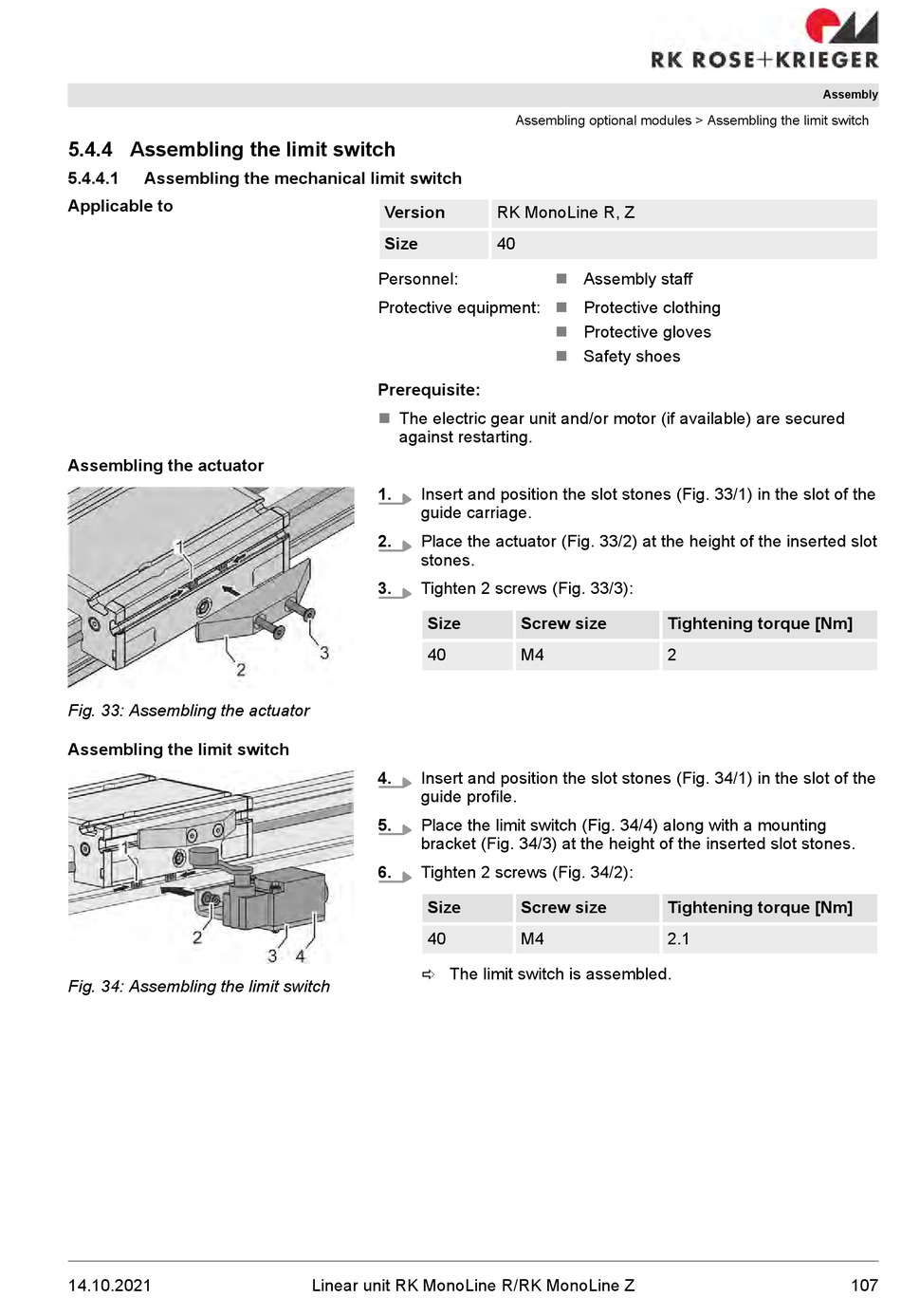

5.4.4 Assembling the limit switch

5.4.4.1

Assembling the mechanical limit switch

Applicable to
Assembling the actuator
Fig. 33: Assembling the actuator
Assembling the limit switch
Fig. 34: Assembling the limit switch
14.10.2021
Version
Size
Personnel:
Protective equipment:
Prerequisite:
n The electric gear unit and/or motor (if available) are secured
against restarting.
1. Insert and position the slot stones (Fig. 33/1) in the slot of the
guide carriage.
2. Place the actuator (Fig. 33/2) at the height of the inserted slot
stones.
3. Tighten 2 screws (Fig. 33/3):
Size
40
4. Insert and position the slot stones (Fig. 34/1) in the slot of the
guide profile.
5. Place the limit switch (Fig. 34/4) along with a mounting
bracket (Fig. 34/3) at the height of the inserted slot stones.
6. Tighten 2 screws (Fig. 34/2):
Size
40
ð The limit switch is assembled.
Linear unit RK MonoLine R/RK MonoLine Z
Assembling optional modules > Assembling the limit switch
RK MonoLine R, Z
40
n Assembly staff
n Protective clothing
Protective gloves
n
n Safety shoes
Screw size
M4
Screw size
M4
Assembly
Tightening torque [Nm]
2
Tightening torque [Nm]
2.1
107
