Product Description

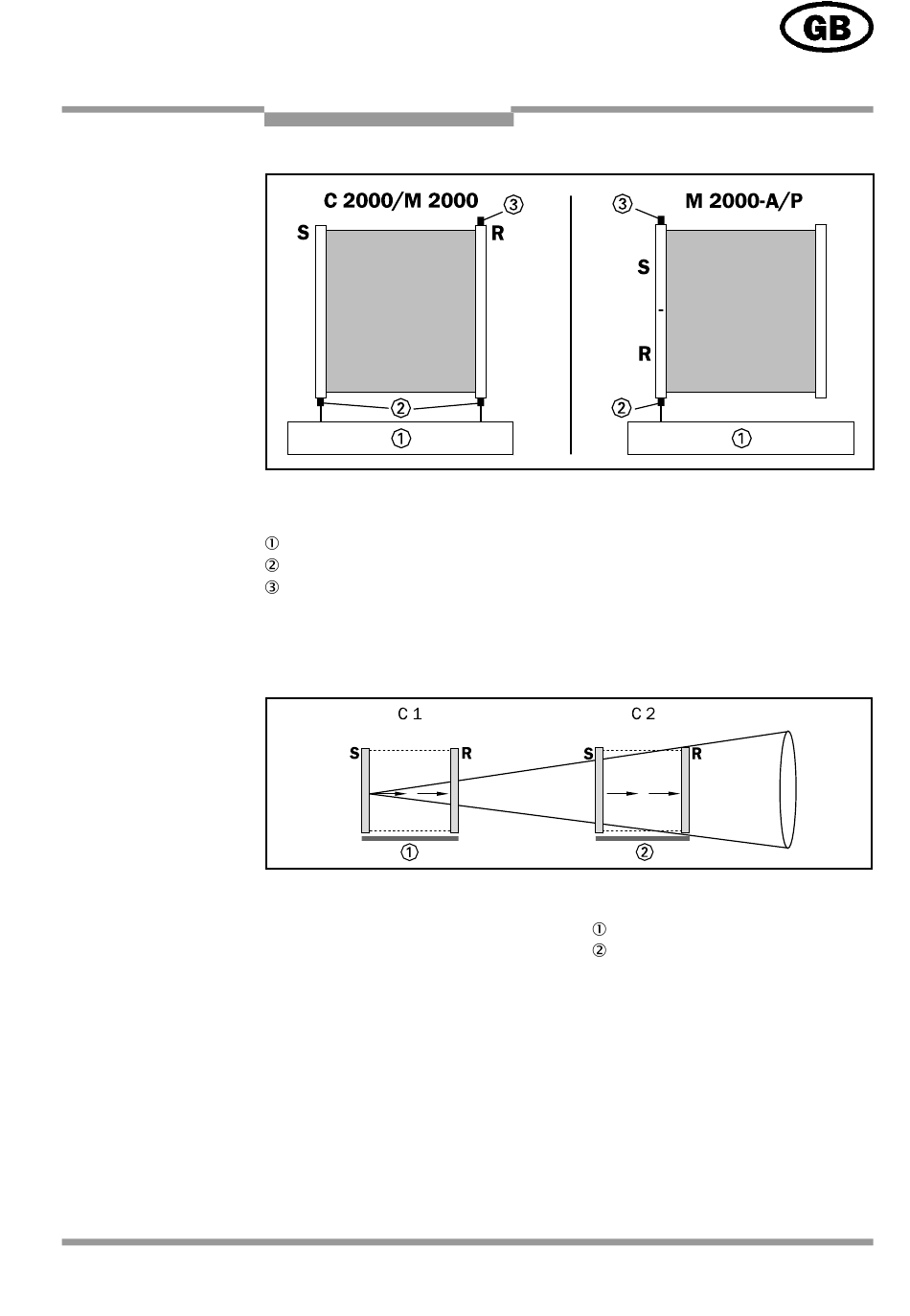

Fig. 3-3: C 2000/M 2000 with RES/EDM and M 2000-A/P with RES
= Machine
= System plug (EDM)
= Extension plug for RES
3.2

Device functions

3 . 2 . 1

Beam coding, multiple safeguarding

Fig. 3-4: Arrangement of senders and receivers of C 2000/M 2000, "standard" and
"RES/EDM" versions with beam coding
C1, C2 = Beam coding 1, 2
S = Sender
R = Receiver
If several senders and receivers need to be arranged in such a way
that they would interfere with each other, the coding of the light beams
allows each receiver to detect its own sender (see Fig. 3-4). Three
beam codes are available.
Only two sender/receiver pairs may be mounted close to each other.
© SICK AG • Industrial Safety Systems • Germany • All rights reserved
S = Sender
R = Receiver
= System 1
= System 2
Chapter 3
