3. Overview/ functional description

3. Overview/ functional description
Item Description
1 Drive unit assy.
1.1 Lid of the battery
compartment
1.2 Bayonet plug
2 Cartridge
3 Bracket to fix the drive unit
4 Battery holder
5 Control printed circuit board
with green (5.1) and red (5.2)
LED to display operating and
error states and the two DIP
switch blocks Cart (5.3) and
TIME (5.4). The control printed
circuit board is positioned in the
drive unit and can be accessed
by removing the bayonet plug.
2
1
1.1
1.2
5
4 5.3
AA
+
+
A A
5.1
3
EN
2

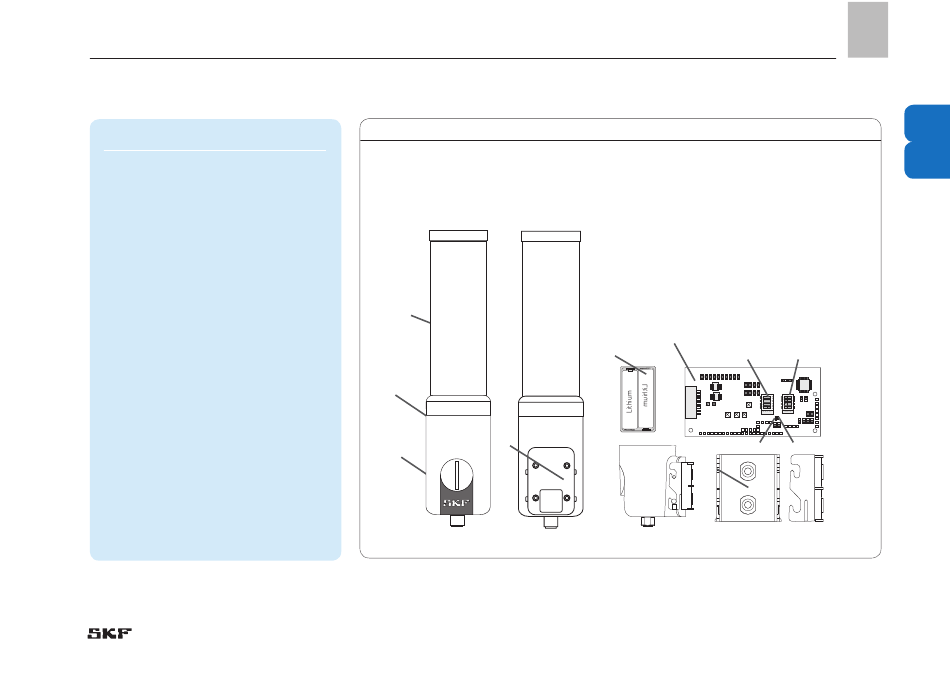

Overview Fig. 1
3
5.4
5.2
