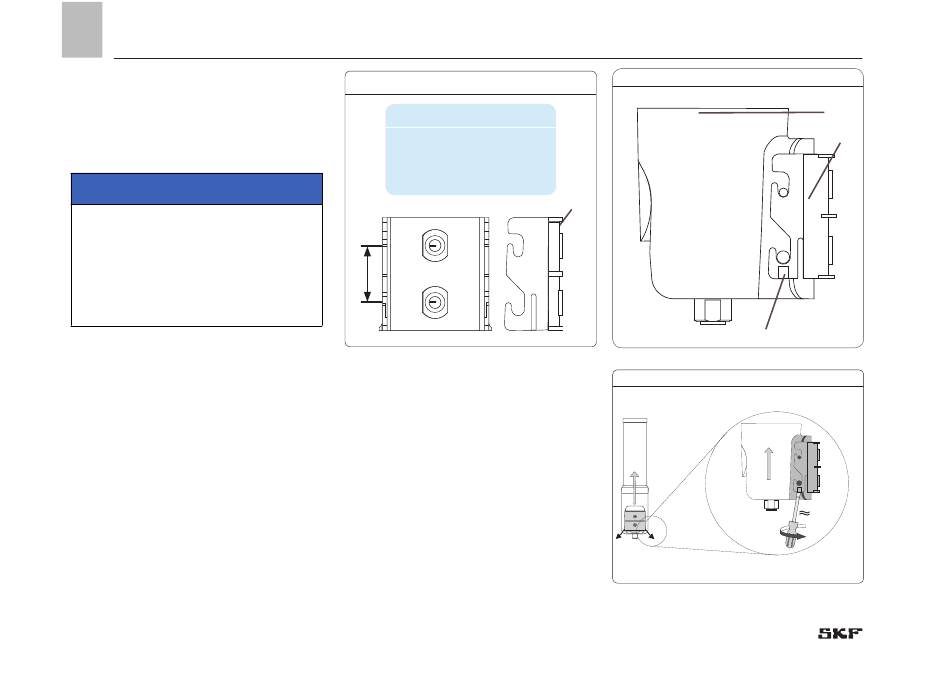

6.18 Mount the bracket
The stainless steel fastening material, which
is part of the scope of delivery, is used to
mount the bracket.
ATTENTION
In the area of the mounting bores the
bracket must not rest clear of the surface.
Otherwise bracket will be deformed and
damaged. Mount bracket to even surface
only. When mounting the bracket to hollow
profiles, line the bracket accordingly.
○ 2 x countersink screw M 6 x 20
DIN ISO 10642
○ 2 x washer
DIN 125 A 6,4
○ 2 x nut M 6 A2
• Attach the bracket to the mounting sur-
face following the hole pattern and in ac-
cordance with the attachment conditions.
Tightening torque 4 +0.5 Nm
30
Mounting bores Fig. 20
Mounting bores
D = distance between
two holes: 35 mm
D
6.19 Insert/ remove drive unit
Insert
• Push drive unit (1) into the bracket (3)
from the top and press it down until the
drive unit locks in place (snap fit with
locking function).
Remove
• Carefully bend the lashes (3.1) of the
bracket (3) outwards with a screwdriver.
• Press the drive unit (1) upwards out of
the bracket.
Drive unit in bracket Fig. 21
3
6. Assembly
1
3
3.1
Drive unit Fig. 22
15°
