6.8 Adjustment options
In the following you see the adjustment op-
tions of the TLMR lubricator.

6.9 Access to the printed circuit board

To carry out the described configuration on
the DIP switches of the printed circuit board
it is necessary to remove the bayonet plug
(1.2) and to remount it after completion of
the works.
• Turn the bayonet plug (1.2) anticlockwise
by 90°.
• Remove bayonet plug (1.2) with seal
(1.3).
After completion of the works:
• Remount bayonet plug (1.2) with seal
(1.3). Ensure that seal (1.3) is not
damaged.
26

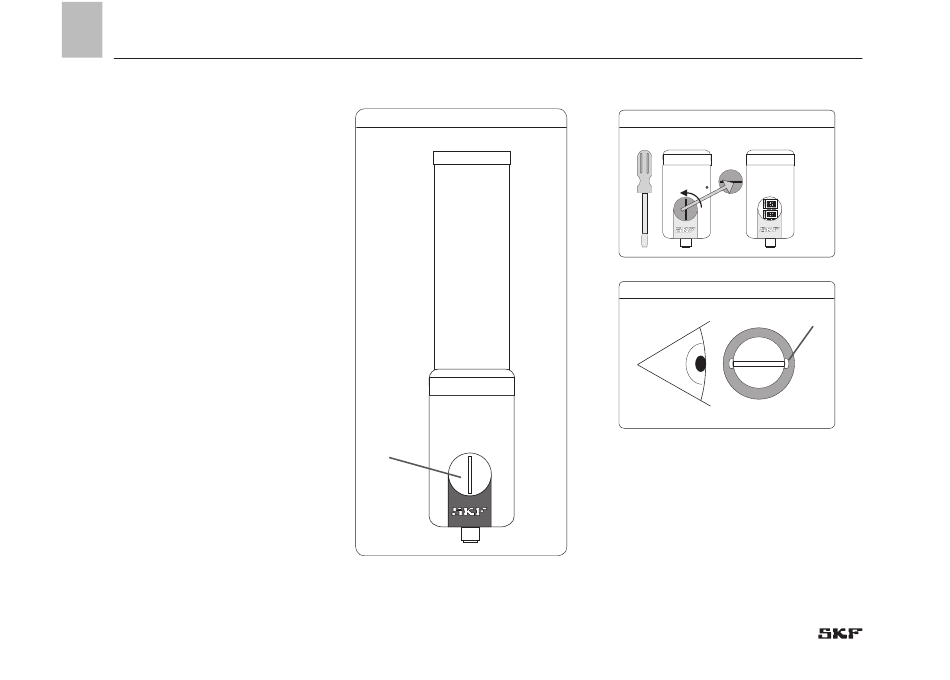

Bayonet plug Fig. 6
1.2
6. Assembly
Remove bayonet plug Fig. 7
90
ON DIP
1 2 3 4
ON DIP
1 2 3 4
Check the seal Fig. 8
1.3
