EN
6.4 Electrical connection 12/24 VDC
WARNING
Electric shock
Electrical connections may only be
performed by qualified technical
personnel. Local connection con-
ditions and legal prescriptions (e.g.
DIN, VDE) must be adhered to.
Electrical connections must be realized in
such way that there are not transmitted any
forces to the product (stressless connection).
For details on the electrical characteristics
see chapter 4, technical data.
24

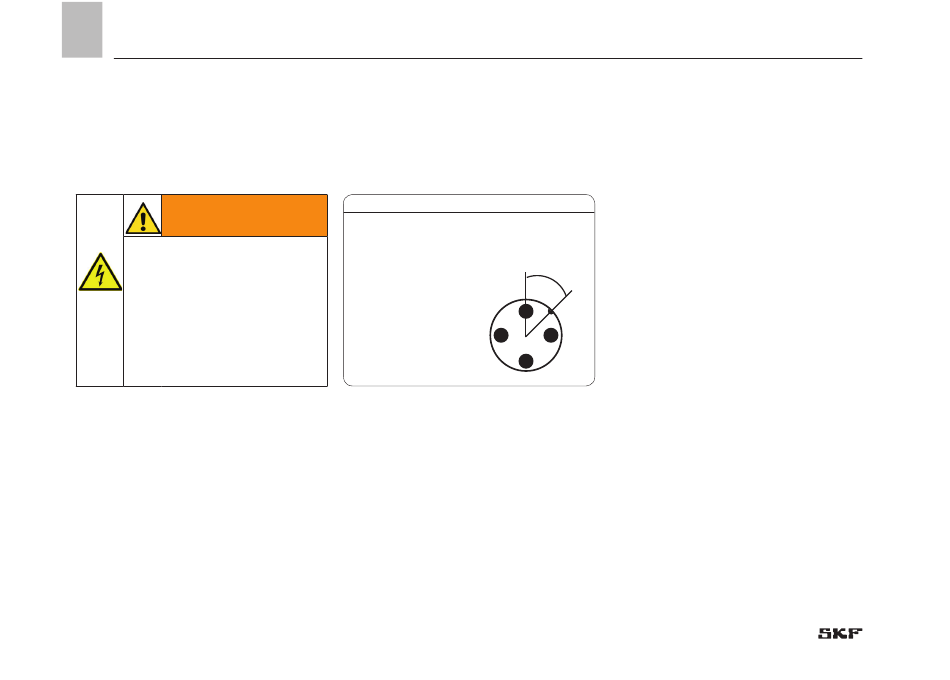

6.5 Pin assignment M-12 plug
M-12 plug A-coded Fig. 4
PIN Description
1 = plus
3 = minus
3
4
Corresponding connecting socket, see
chapter 11.

6.6 Lubrication line connection

The lubrication line must be connected in
such way that there are not transmitted
any forces to the product (stressless
connection).
45 °
2
1
6. Assembly
