6. Assembly

6.20 Changing of battery

• Loosen and remove the four screws
(1.6) on the lid (1.1) of the battery
compartment.
• Remove battery holder (4).
• Change batteries.
• Insert battery holder (4) again.
• Make sure that during assembly the
cables of the battery holder are not jam-
med between the lid of the holder and
the holder.
• Check the seal (1.4) and replace it in case
of damages.

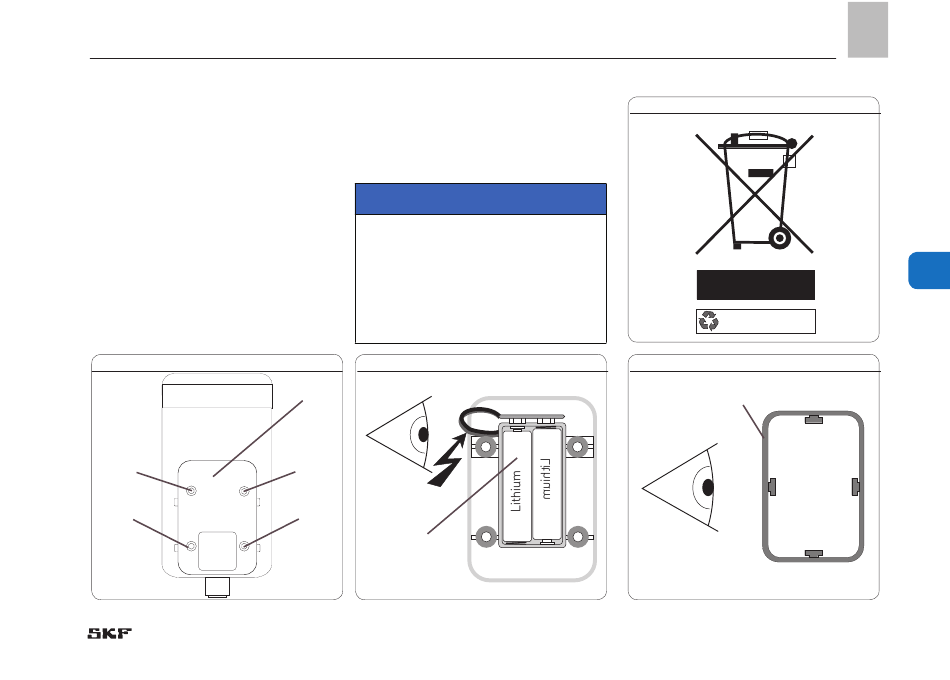

Lid of the battery compartment Fig. 23
1.6
1.6
• Mount lid (1.1) of battery compartment
back again.
Tightening torque = 1.9 + 0.1 Nm
Tool: : Hexagon socket wrench Size 4
ATTENTION
The screws (1.6) of the battery compart-
ment are undetachable. Do not turn them
out by force or by means of an electrical
tool. When changing the battery ensure
correct orientation of the batteries in the
battery holder (pressure spring = negative
pole).
1.1
1.6
1.6
4
Check cable Fig. 24
2 2
AA
+
+
A A
EN
Disposal of batteries Fig. 25
2 2

Li-ion Batteries

EWC-CODE: 16 06 05
Check seal Fig. 26
1.4
2 2
