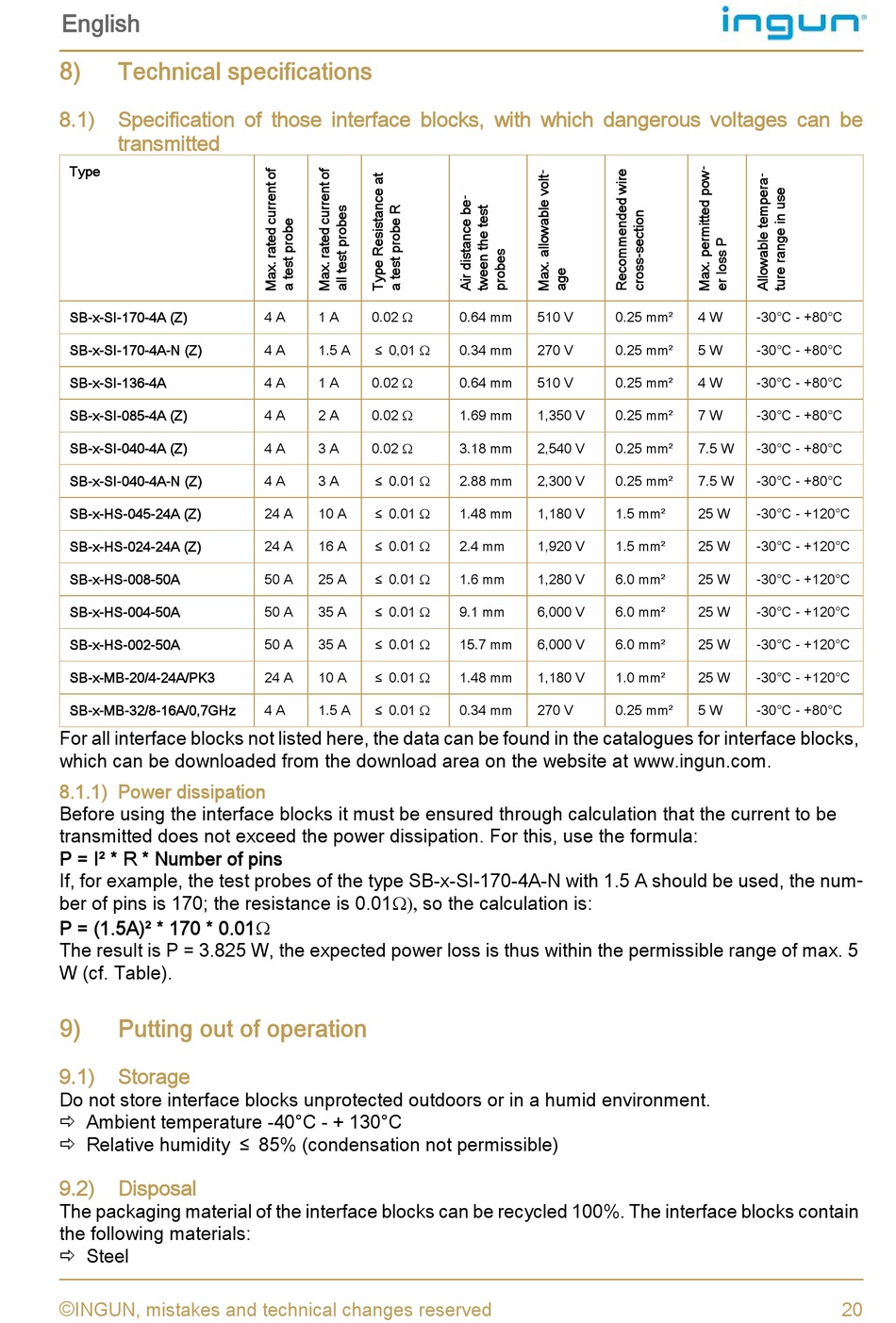

Technical specifications

8.1) Specification of those interface blocks, with which dangerous voltages can be
transmitted
Type
SB-x-SI-170-4A (Z)
SB-x-SI-170-4A-N (Z)
SB-x-SI-136-4A
SB-x-SI-085-4A (Z)
SB-x-SI-040-4A (Z)
SB-x-SI-040-4A-N (Z)
SB-x-HS-045-24A (Z)
SB-x-HS-024-24A (Z)
SB-x-HS-008-50A
SB-x-HS-004-50A
SB-x-HS-002-50A
SB-x-MB-20/4-24A/PK3
SB-x-MB-32/8-16A/0,7GHz
For all interface blocks not listed here, the data can be found in the catalogues for interface blocks,
which can be downloaded from the download area on the website at www.ingun.com.

8.1.1) Power dissipation

Before using the interface blocks it must be ensured through calculation that the current to be
transmitted does not exceed the power dissipation. For this, use the formula:
P = I² * R * Number of pins
If, for example, the test probes of the type SB-x-SI-170-4A-N with 1.5 A should be used, the num -
ber of pins is 170; the resistance is 0.01 so the calculation is:
P = (1.5A)² * 170 * 0.01
The result is P = 3.825 W, the expected power loss is thus within the permissible range of max. 5
W (cf. Table).
9)

Putting out of operation

9.1) Storage
Do not store interface blocks unprotected outdoors or in a humid environment.
 Ambient temperature -40°C - + 130°C
 Relative humidity ≤ 85% (condensation not permissible)
9.2) Disposal
The packaging material of the interface blocks can be recycled 100%. The interface blocks contain
the following materials:
 Steel
©
