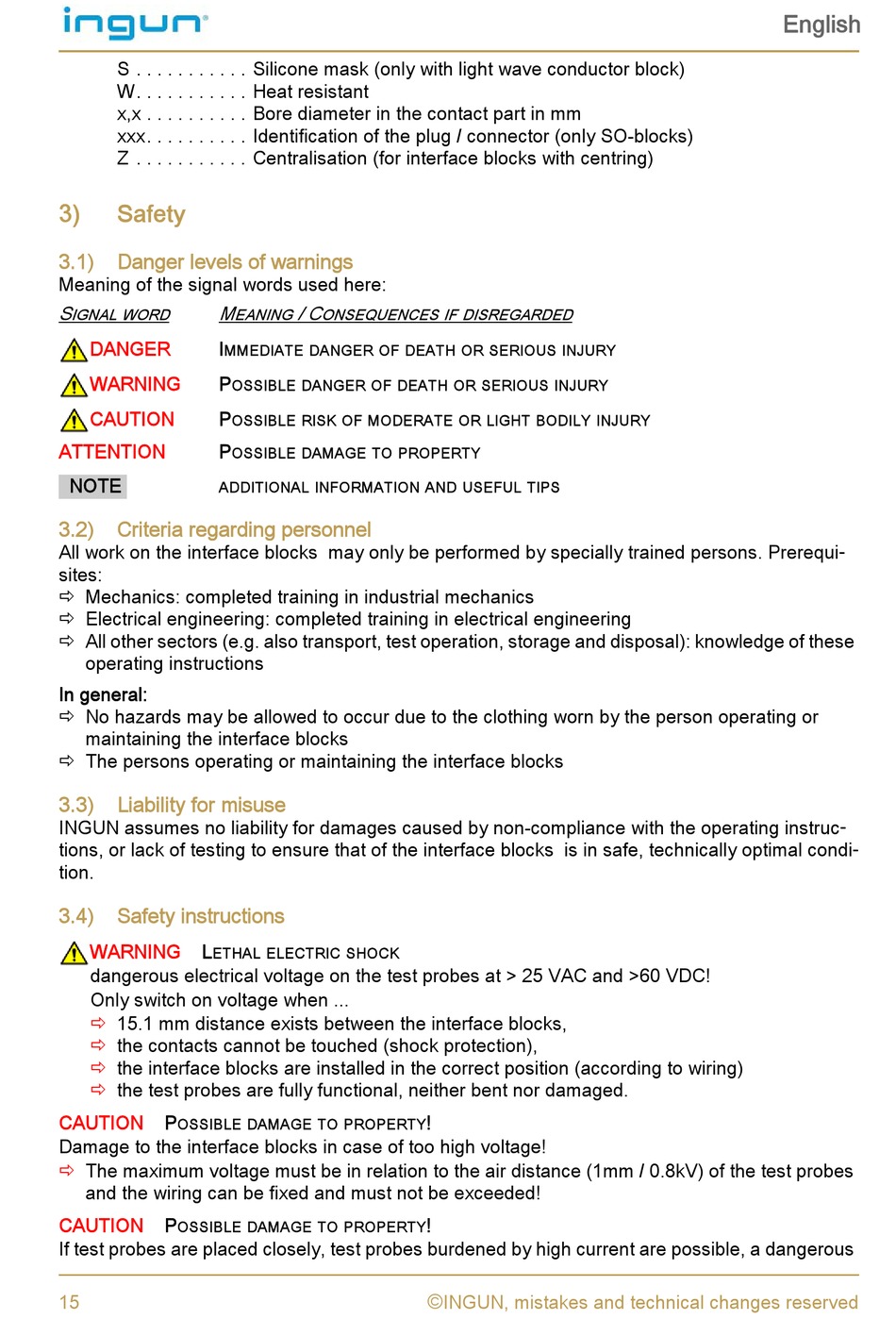

Safety; Safety Instructions - Ingun SB-T series Betriebsanleitung

S . . . . . . . . . . . Silicone mask (only with light wave conductor block)
W. . . . . . . . . . . Heat resistant
x,x . . . . . . . . . . Bore diameter in the contact part in mm
xxx. . . . . . . . . . Identification of the plug / connector (only SO-blocks)
Z . . . . . . . . . . . Centralisation (for interface blocks with centring)
3)

Safety

3.1) Danger levels of warnings
Meaning of the signal words used here:
S M
IGNAL WORD
DANGER I
MMEDIATE DANGER OF DEATH OR SERIOUS INJURY
WARNING P
CAUTION P
ATTENTION P
NOTE
ADDITIONAL INFORMATION AND USEFUL TIPS
3.2) Criteria regarding personnel
All work on the interface blocks may only be performed by specially trained persons. Prerequi -
sites:
 Mechanics: completed training in industrial mechanics
 Electrical engineering: completed training in electrical engineering
 All other sectors (e.g. also transport, test operation, storage and disposal): knowledge of these
operating instructions
In general:
 No hazards may be allowed to occur due to the clothing worn by the person operating or
maintaining the interface blocks
 The persons operating or maintaining the interface blocks
3.3) Liability for misuse
INGUN assumes no liability for damages caused by non-compliance with the operating instruc -
tions, or lack of testing to ensure that of the interface blocks is in safe, technically optimal condi -
tion.
3.4)

Safety instructions

WARNING L
ETHAL ELECTRIC SHOCK
dangerous electrical voltage on the test probes at > 25 VAC and >60 VDC!
Only switch on voltage when ...
15.1 mm distance exists between the interface blocks,

the contacts cannot be touched (shock protection),

the interface blocks are installed in the correct position (according to wiring)

the test probes are fully functional, neither bent nor damaged.

CAUTION P
OSSIBLE DAMAGE TO PROPERTY
Damage to the interface blocks in case of too high voltage!
The maximum voltage must be in relation to the air distance (1mm / 0.8kV) of the test probes

and the wiring can be fixed and must not be exceeded!
CAUTION P
OSSIBLE DAMAGE TO PROPERTY
If test probes are placed closely, test probes burdened by high current are possible, a dangerous
15
/ C
EANING ONSEQUENCES IF DISREGARDED
OSSIBLE DANGER OF DEATH OR SERIOUS INJURY
OSSIBLE RISK OF MODERATE OR LIGHT BODILY INJURY
OSSIBLE DAMAGE TO PROPERTY
!
!
©
