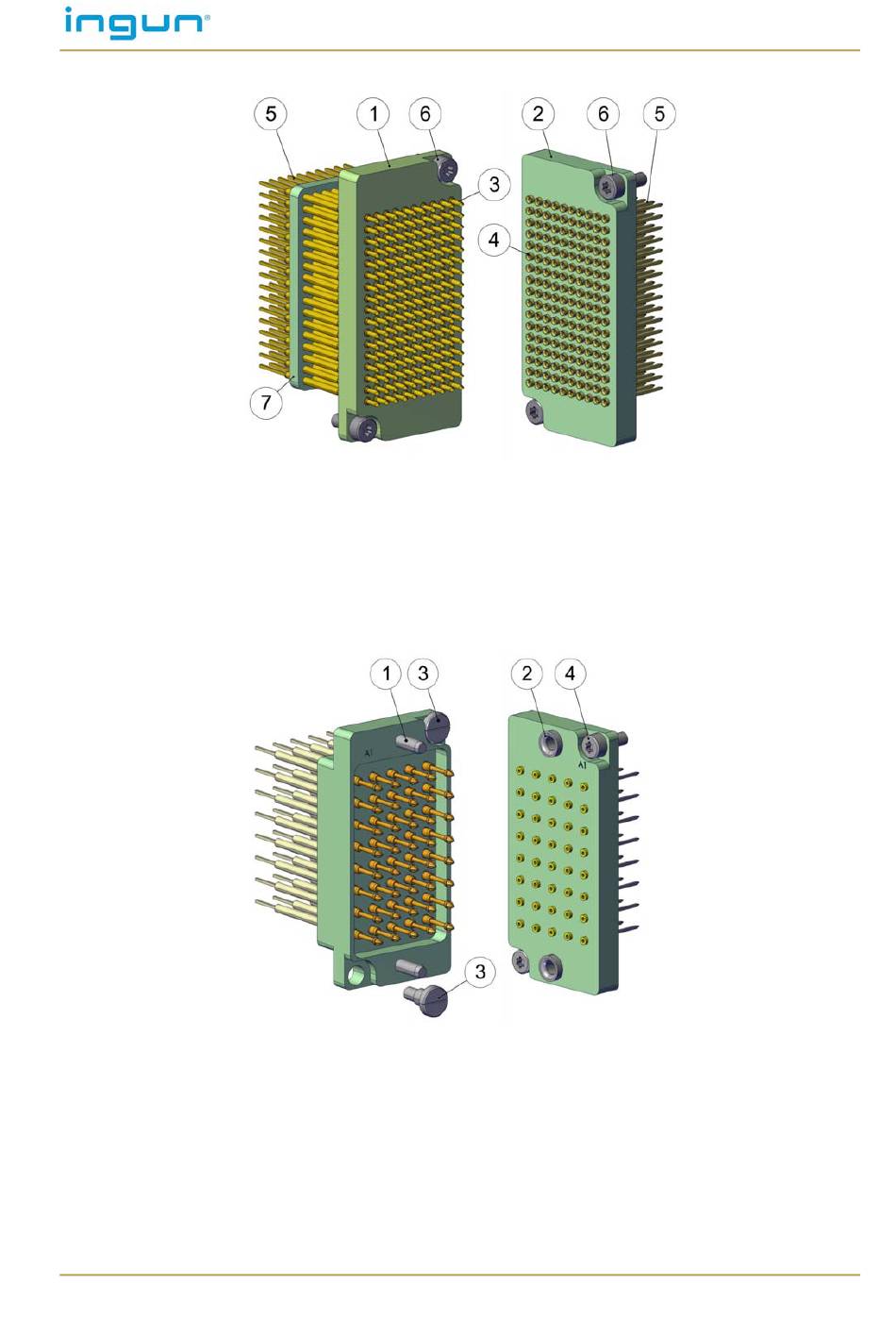

Device description

1 Interface block, test system side
2 Interface block, test specimen side
3 Spring-loaded test probe
4 Rigid contact parts
5 Wire-wrap connection post
6 Fastening screw
7 Guide plate
1 Centring pin
2 Centring
3 Washer head bolt
4 Fastening screw
2.1) Product designation of most different interface blocks
On the packaging of the interface blocks is the respective nameplate attached.
13
Interface block (170 pin)
Interface block with centring (high current)
©
