1 Product group
D
ESIGNATION
SB . . . . . . . . . . Interface block
2 Design (mounting side)
D
ESIGNATION
P . . . . . . . . . . . specimen side
T . . . . . . . . . . . test system side
3 Type
D
ESIGNATION
HF . . . . . . . . . . High frequency block
HS . . . . . . . . . . High current block
LL . . . . . . . . . . Light guide block
MB. . . . . . . . . . Mixing block
PN . . . . . . . . . . Pneumatic block
SI. . . . . . . . . . . Signal block
SO . . . . . . . . . . Special block
4 Number of possible poles
D
ESIGNATION
xxx. . . . . . . . . . Number of poles for simply equipped blocks
xxx/xxx/xxx . . . Number of poles in mixed blocks
5 Value or parameter
D
ESIGNATION
DM/DKx,x . . . . Cladding or core diameter (DM or DK) of the optical wave guide in mm for
OHx . . . . . . . . . Type of Optical Head for LL block
PKx . . . . . . . . . Inner diameter of the pneumatic connecting hose, for example in PK3 PN
xGHz . . . . . . . . Max. Frequency range for RF block
xxxA . . . . . . . . Max. Amperage for 1 pin at HS or SI block
xxx/xxx/... . . . . Values in mixed blocks (e.g. 4A/2GHz/16A)
6 Number equipped poles
D
ESIGNATION
Not specified . . For full configuration
xx. . . . . . . . . . . In part placement
7 Other versions
D
ESIGNATION
A . . . . . . . . . . . Shut off (only with PN-block)
N . . . . . . . . . . . Low resistance
Plan . . . . . . . . . Contact part with a flat contact surface
©
INGUN, mistakes and technical changes reserved

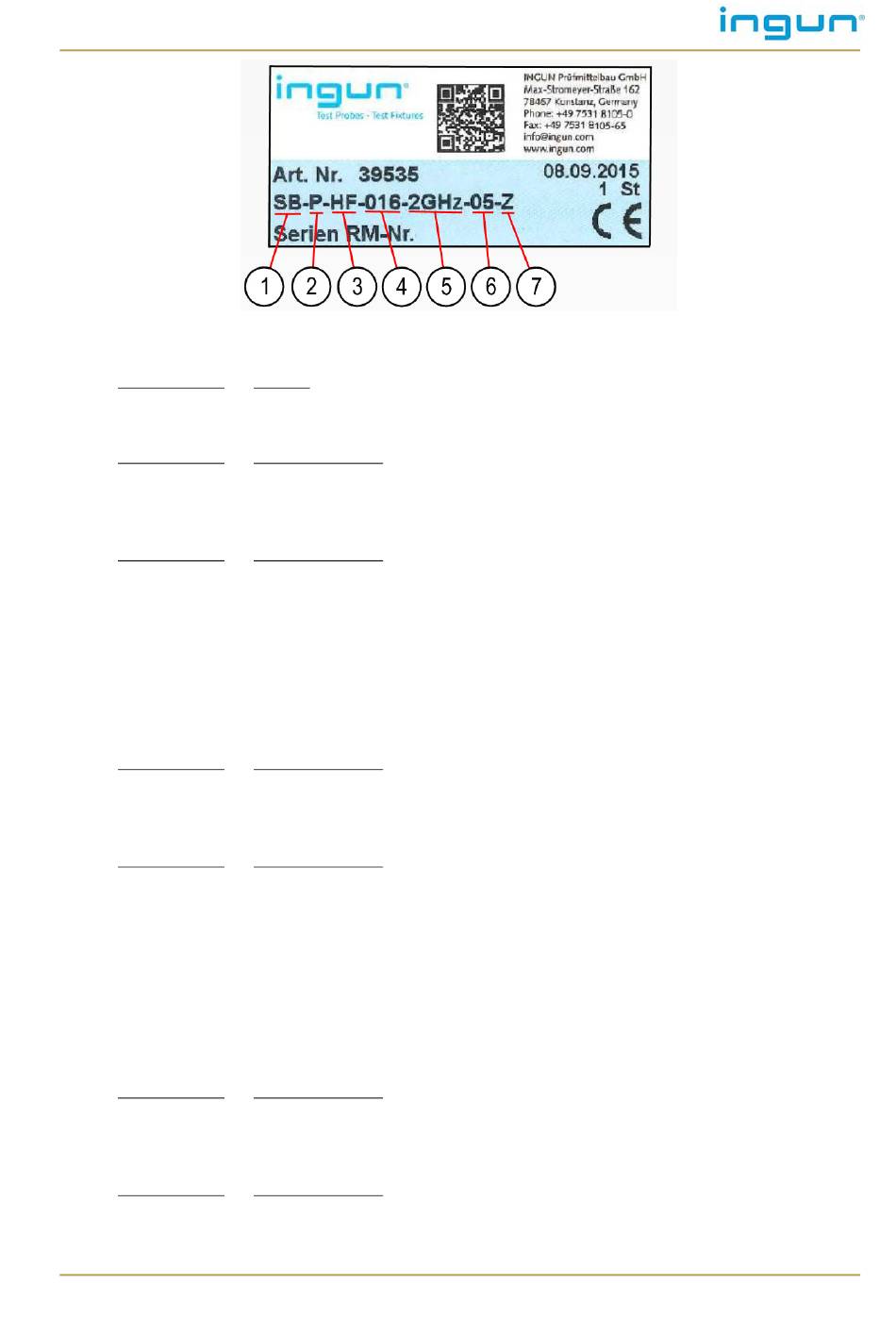

Example: Nameplate of an interface block
