5.2)

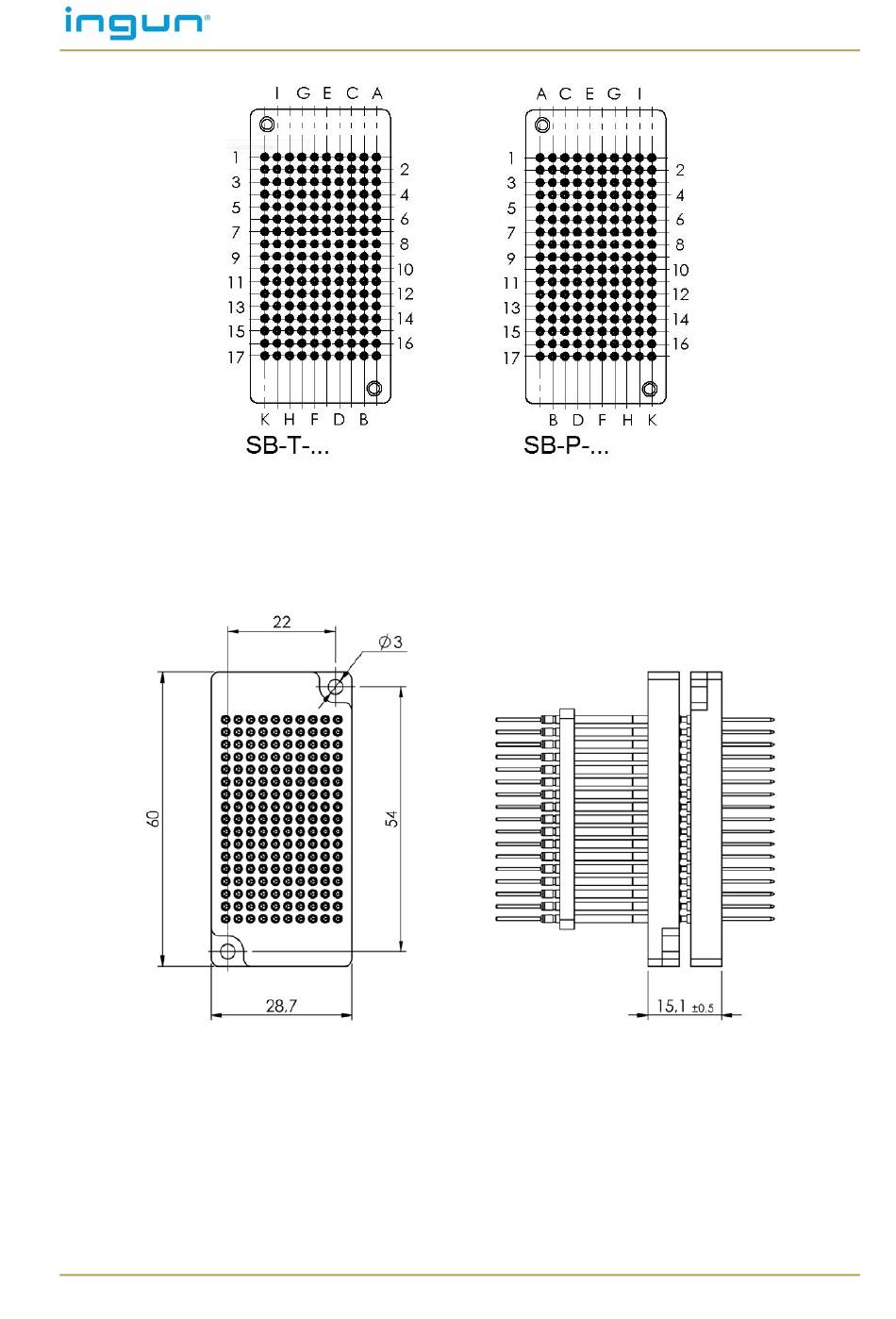

Wiring diagram

For all interface blocks the vertical rows of letters and the horizontal rows are identified by num -
bers. With the test specimen side interface block, one starts at the top left, and with the test system
side interface block, one begins at the top right considered from the wiring side.
5.3) Installation dimensions (in mm)
The mounting dimensions are the same for all interface blocks.
6)

Operation

The interface blocks are installed as electrical equipment and not operated directly by the user.
17
Wiring plan, viewed from wiring side

Installation dimensions

©
INGUN, mistakes and technical changes reserved
English
