The Crossfire™ Console
The Crossfire™ console is the connection hub for the components of the
Crossfire™ system. It generates RF energy, powers motorized shavers, and
provides user controls and system feedback.

Front Panel

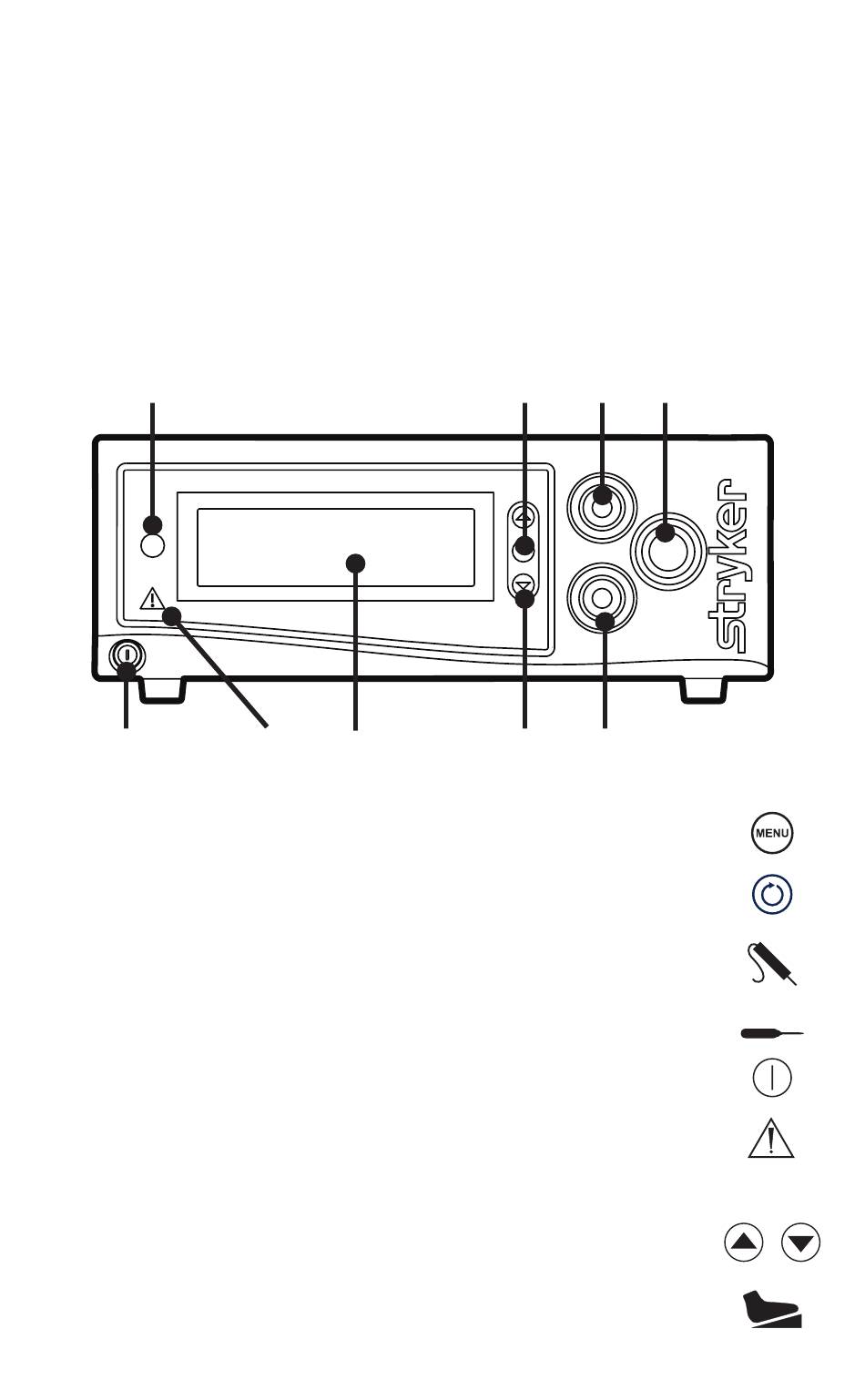

The front console panel features ports for connecting handpieces, controls for
adjusting handpiece settings, and an LCD screen to provide system feedback.
1
5
1. Menu
2. Select
3. RF connector
4. Handpiece connector
5. Power
6. Error indicator
7. LCD screen
8. Adjust
9. Footswitch connector
6 7
Selects menu items
Selects which device displays on
the LCD screen.
SERFAS Energy probe
Powered shaver handpiece
Powers the console on and off
Shines red to indicate errors (error
details appear in the LCD)
Provides system feedback
Adjusts options for connected
devices
Crossfire™ Footswitch
2 3 4
8 9
EN-9
