7.3 R100

The pump is designed for wireless communication
with the GRUNDFOS remote control R100. The
R100 communicates with the pump via infra-red
light.
During communication, the R100 must be pointed at
the control panel on the master pump. When the
R100 is communicating with the pump, the red indi-
cator light will flash rapidly.
The R100 offers additional possibilities of setting and
status displays for the pump.

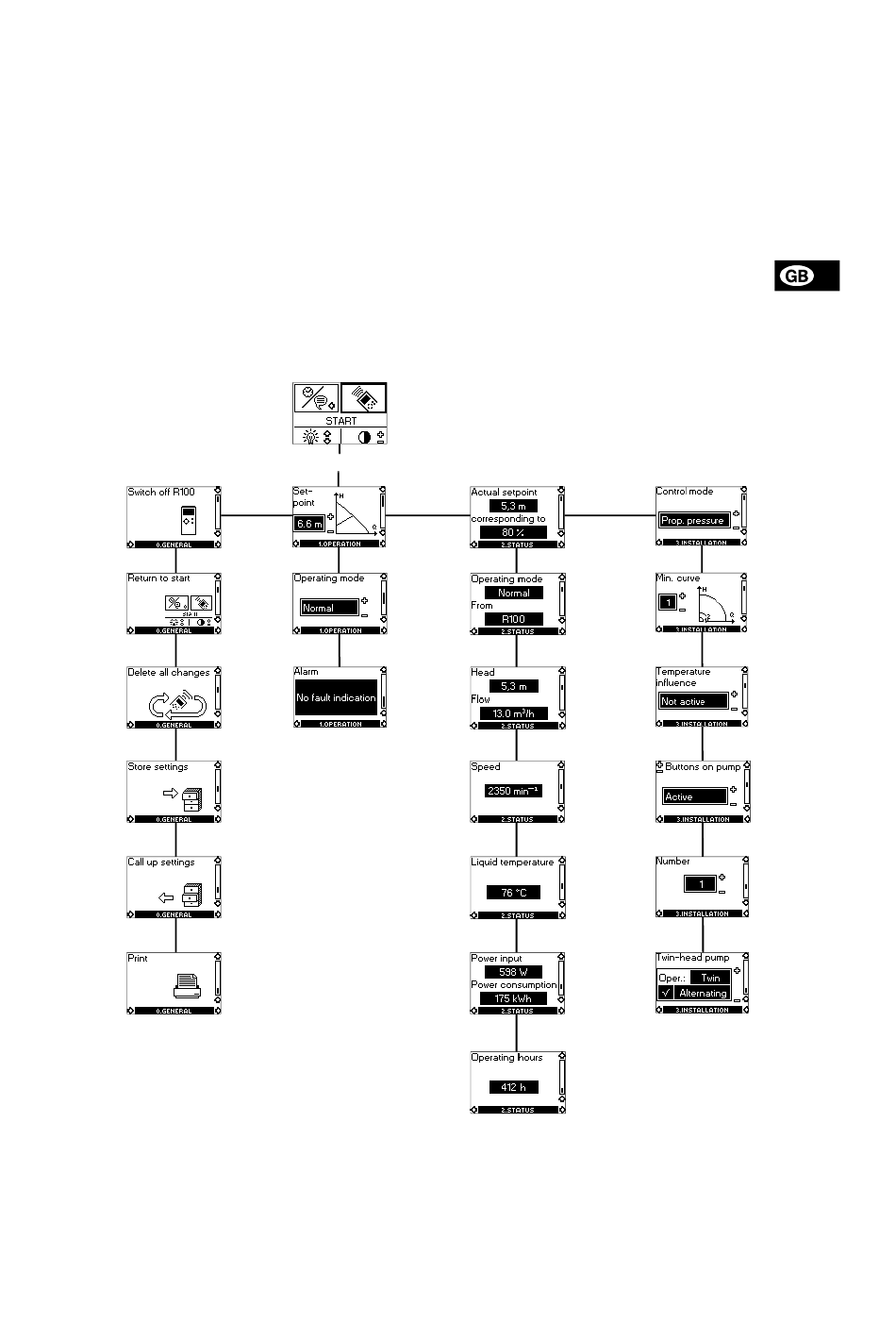

Fig. 20
0. GENERAL
7.4.1
7.4.2
7.4.3
The displays are divided into four parallel menus,
see fig. 20:
0. GENERAL, see operating instructions for R100
1. OPERATION
2. STATUS
3. INSTALLATION
The number stated at each individual display in fig.
20 refers to the section in which the display is de-
scribed.
1. OPERATION
7.5.1
7.5.2
7.5.3
7.5.4
7.5.5
7.5.6
7.5.7
2. STATUS 3. INSTALLATION
7.6.1
7.6.2
7.6.3
7.6.4
7.6.5
7.6.6
