7.3 R100

The pump is designed for wireless communication
with the GRUNDFOS remote control R100. The
R100 communicates with the pump via infra-red
light.
During communication, the R100 must be pointed at
the pump control panel. When the R100 is communi-
cating with the pump, the red indicator light will flash
rapidly.
The R100 offers additional possibilities of setting and
status displays for the pump.

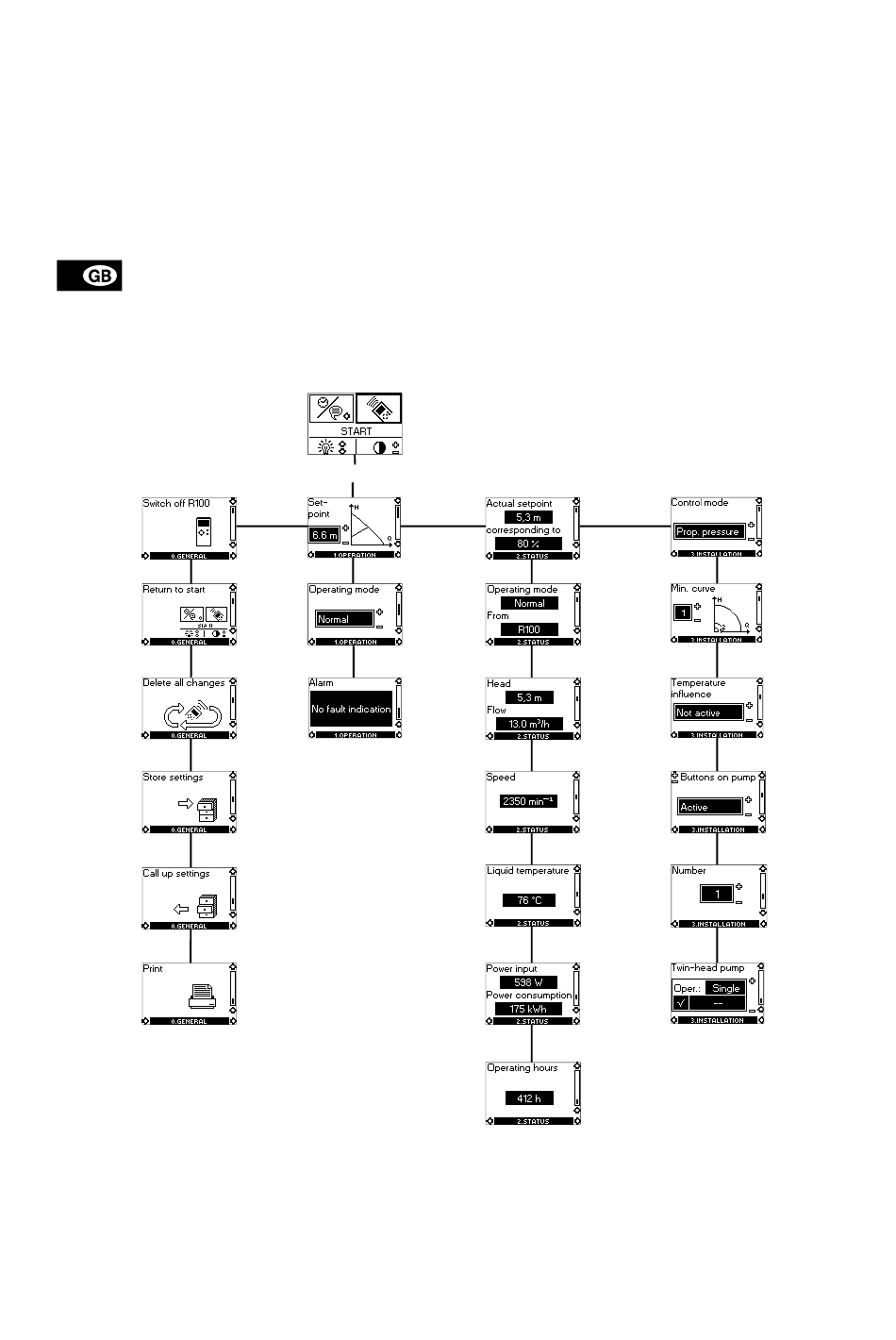

Fig. 18
1. OPERATION
0. GENERAL
7.4.1
7.4.2
7.4.3
16
The displays are divided into four parallel menus,
see fig. 18:
0. GENERAL, see operating instructions for R100
1. OPERATION
2. STATUS
3. INSTALLATION
The number stated at each individual display in fig.
18 refers to the section in which the display is de-
scribed.
2. STATUS
7.5.1
7.5.2
7.5.3
7.5.4
7.5.5
7.5.6
7.5.7
3. INSTALLATION
7.6.1
7.6.2
7.6.3
7.6.4
7.6.5
7.6.6
