4. System configuration

1. Make sure that all connections have been done
correctly.
2. Switch on the power supply.
3. Use the R100 to configure the system.

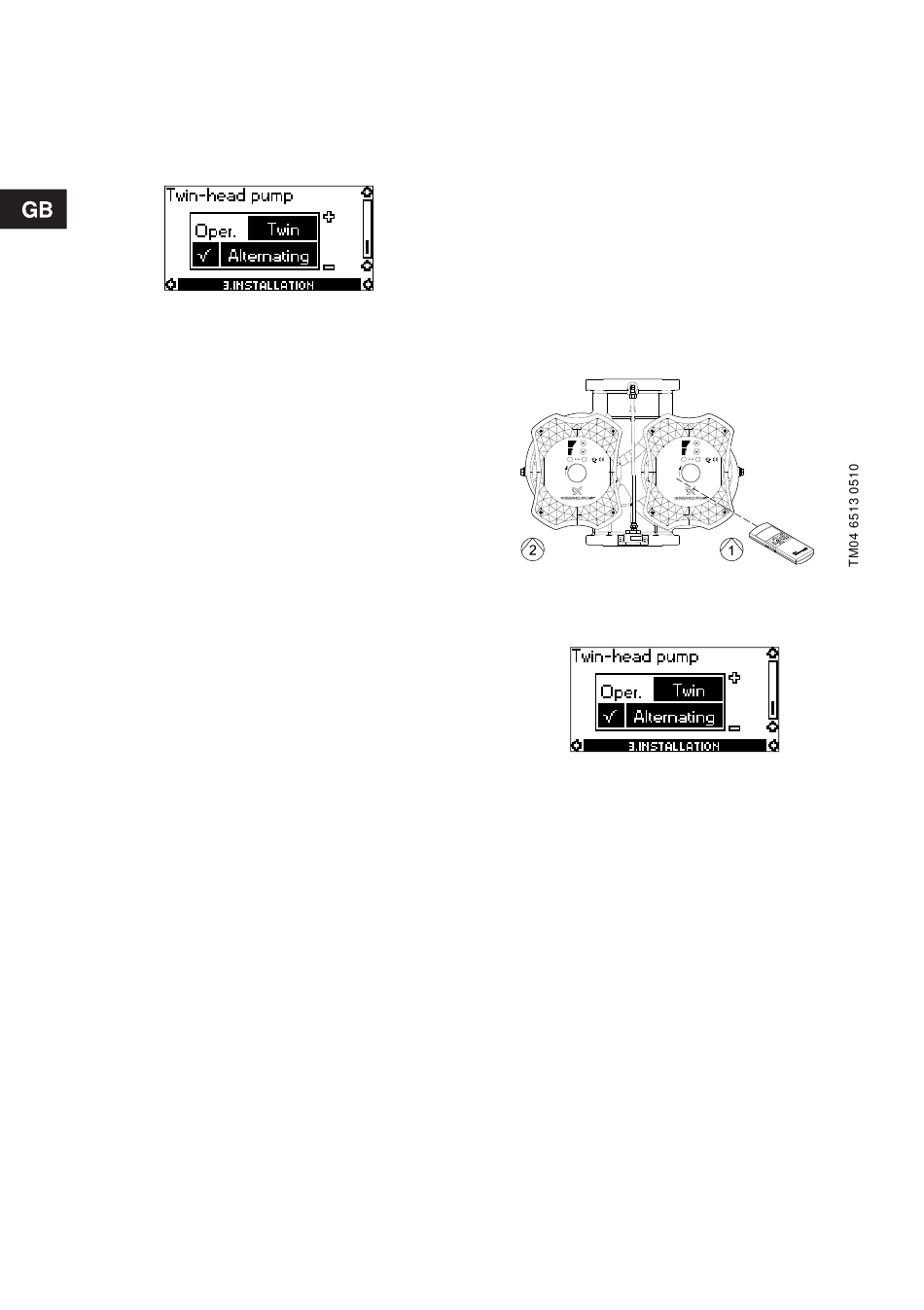

Fig. 5 Display, Twin-head pump
This display (fig. 5) is only available when the R100
is pointed at the master pump (1).
In this display, the operating mode of the twin-head
pump can be selected.
Three operating modes are available:
• Alternating (alternating operation)
• Synchron. (synchronous operation)
• Standby (standby operation).

5. Single-pump operation

In addition to the three operating modes mentioned
in section 4. System configuration, the twin-head
pump offers the operating mode "Single-pump
operation".
When single-pump operation is selected, the pumps
are operating completely independently of each
other without internal communication, but the twin-
head cable must be connected.

5.1 Why select single-pump operation?

Select single-pump operation
• when the twin-head pump is to be controlled or
monitored by a Grundfos pump management
system.
• in all other situations where the master and slave
pumps are to operate independently of each other
as two single-head pumps.
6

5.2 R100 remote control

Use the R100 to set the pump to single-pump
operation.
The R100 must be upgraded for the control of UPED
twin-head pumps. If the R100 cannot show the
display "Twin-head pump", it must be upgraded
before the setting can be made.
The position of the display "Twin-head pump" in the
menu structure appears from section 7.3 R100 in the
general installation and operating instructions.
5.3 Changing between twin- and single-
pump operation
Setting the pump to single-pump operation:
1. Point the R100 at the master pump (1).
Fig. 6 Master and slave pumps
2. Select the display "Twin-head pump".
Fig. 7 Display, Twin-head pump
3. Select either "Twin" or "Single", and press [OK].
