1. Introduction 1. Introduction

‘



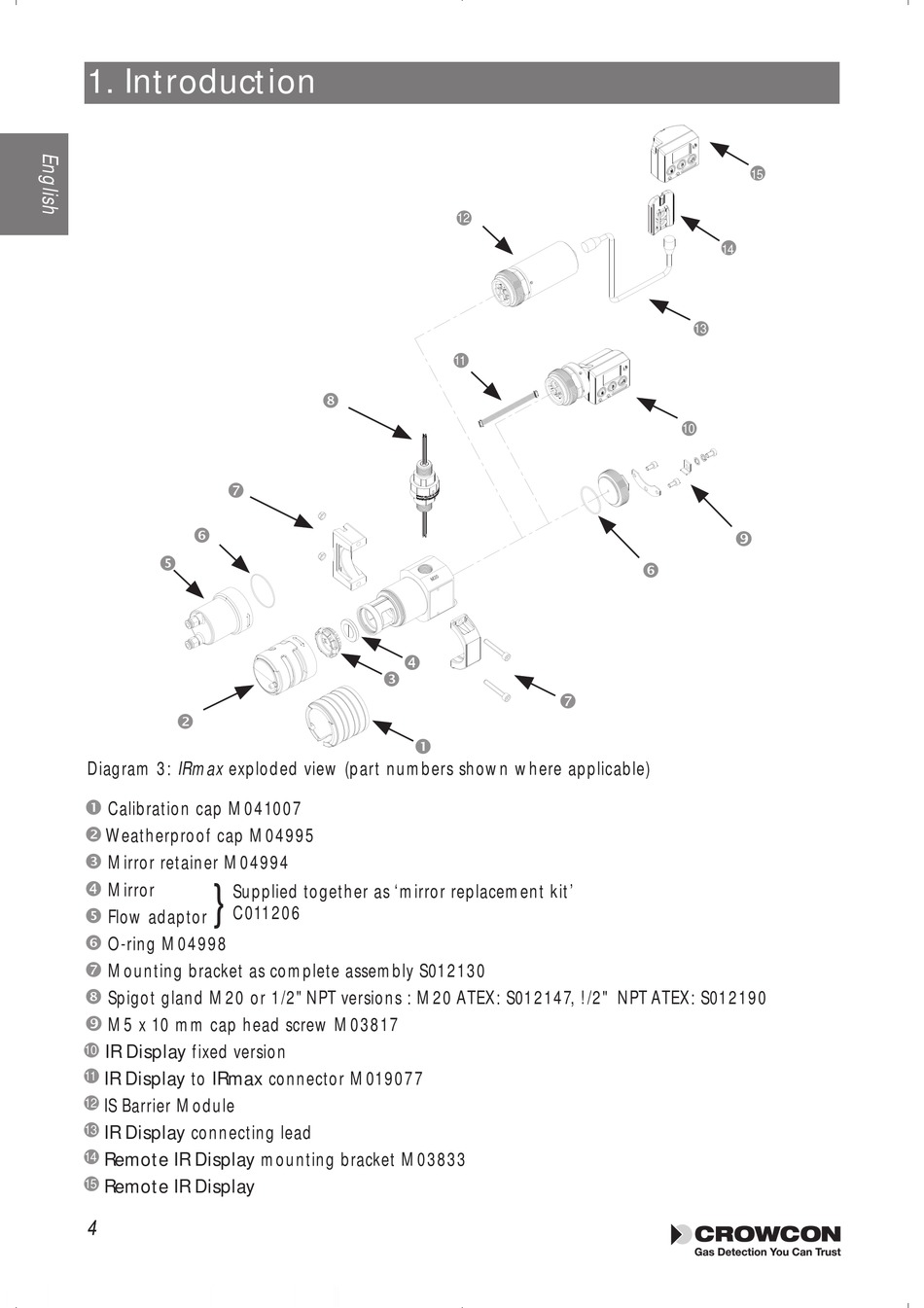

Diagram 3: IRmax exploded view (part numbers shown where applicable)
Œ
Calibration cap M041007

Weatherproof cap M04995
Ž
Mirror retainer M04994
}

Mirror
Supplied together as 'mirror replacement kit'
C011206

Flow adaptor
‘
O-ring M04998

Mounting bracket as complete assembly S012130
“
Spigot gland M20 or 1/2"NPT versions : M20 ATEX: S012147, !/2" NPT ATEX: S012190
”
M5 x 10 mm cap head screw M03817
IR Display fixed version
10
IR Display to IRmax connector M019077
11
IS Barrier Module
12
IR Display connecting lead
13
Remote IR Display mounting bracket M03833
14
Remote IR Display
15
4 4
12
11
“

Ž
Œ
14
13
10
‘

15
”
