Concept and safety Concept and safety

Product overview

IRmax is an infrared gas detector designed for detecting common hydrocarbon gases in
the range 0 to 100%LEL (Lower Explosive Limit: the minimum concentration in air at which
ignition can occur).
IRmax is a certified Flameproof (Exd) detector suitable for use in ATEX Zone 1 or Zone 2
hazardous areas. Please refer to the certification label on the side of the Detector to identify
the type of certification that relates to the product supplied.
Note: if no certification label is fitted to the IRmax, the detector is not certified
for use in hazardous areas.
NOTES:
1. ALL TEXT TO BE ETCHED BELOW SURFACE AND INK
FILLED BLACK
2. HATCHED AREA TO BE USED FOR ALTERNATIVE
CERTIFICATION MARKINGS

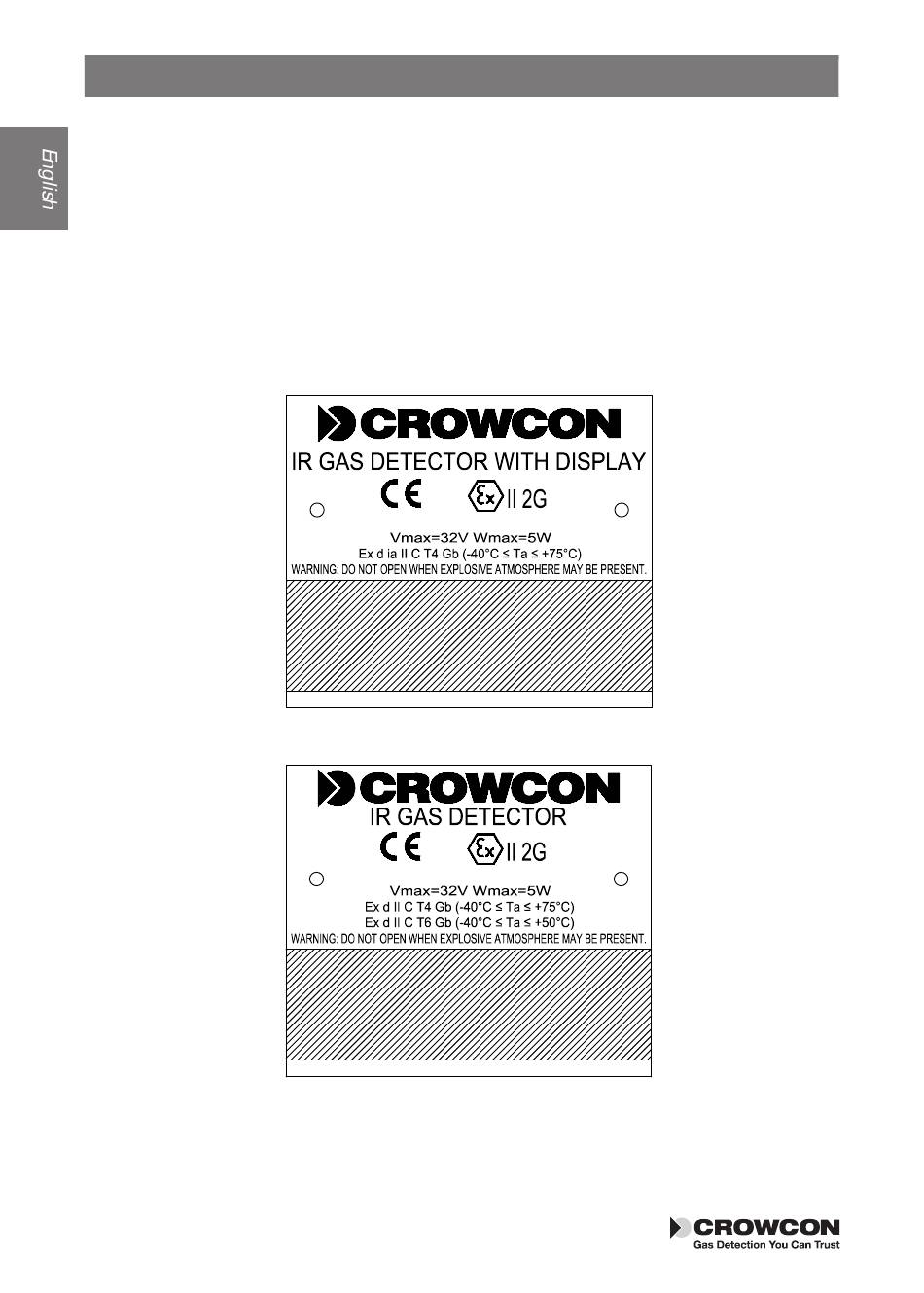

Diagram 1: IRmax certification labels
